• PHE1BR polished-brass European patch kit for single tempered glass door; top/bottom patches and pivots for 3/8-1/2" glass
1 1

CRL

CRL Polished Brass European Patch Door Kit for Glass - No Lock

CRL Polished Brass European Patch Door Kit for Glass - No Lock

$298.40 CAD
$298.40 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE1BR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single
Door Type
A Style Glass Door
Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks (SKU: PHE1BR)

CRL PHE1 European Patch Door Kits include all hardware required to complete a single free-swinging glass door (glass not included). Designed for tempered glass panels 3/8" or 1/2" (10 or 12 mm) thick, the kit provides gaskets and requires holes and notches in the glass. Pivot setback: 2-9/16" (65 mm). Compatible with floor closers using tapered spindles (floor closers ordered separately).

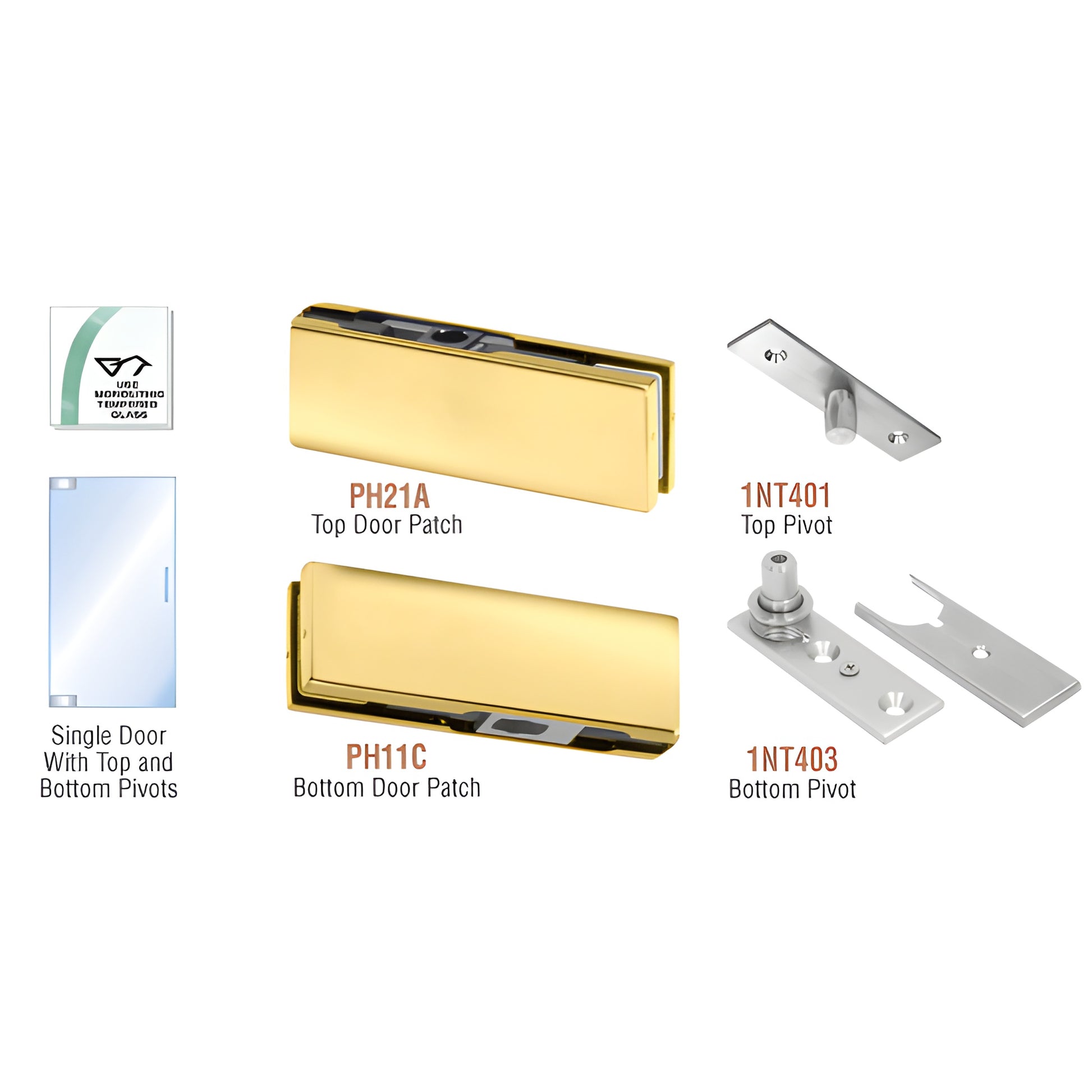

Kit contains:

  • 1 - PH21A top door patch
  • 1 - PH11C bottom door patch
  • 1 - 1NT401 top pivot
  • 1 - 1NT403 bottom pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required)

Kits with lock include one Cat. No. EUR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.

Compliance & sizing: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are actual or close representations; colors may vary by monitor settings.

Brass Finish Advisory:
Brass and brass finishes, though durable, are prone to oxidation and may develop a tarnished appearance over time regardless of initial packaging or storage. See the Brass Finish Disclaimer in the Technical References for care and maintenance details.

Key differentiators: European-style patch kit for tempered glass doors, complete pivot hardware, optional EUR205 patch lock availability, and compatibility with tapered-spindle floor closers — ideal for commercial glass door installations requiring a clean,
