CRL Polished Brass European Patch Kit Double Doors w/ Transom Lock
CRL Polished Brass European Patch Kit Double Doors w/ Transom Lock
Regular price
$1,247.86 CAD
Regular price
Sale price
$1,247.86 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE6LBR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Pair With Transom
Door Type
F Style Glass Door
Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- Most Popular Design
- For 3/8" or 1/2" (10 or 12 mm) tempered glass doors
- Available with or without locks (locks sold separately)
CRL PHE6 European Double Door Kits (SKU: PHE6LBR) include all hardware required to assemble a pair of free-swinging glass doors with a fixed transom, excluding glass and any additional transom supports. Pivot setback: 2-9/16" (65 mm). Compatible with a separately ordered floor closer with tapered spindle. Ideal for commercial storefronts and interior glass partitions where premium European-style patch fittings for 3/8" or 1/2" tempered glass are required.

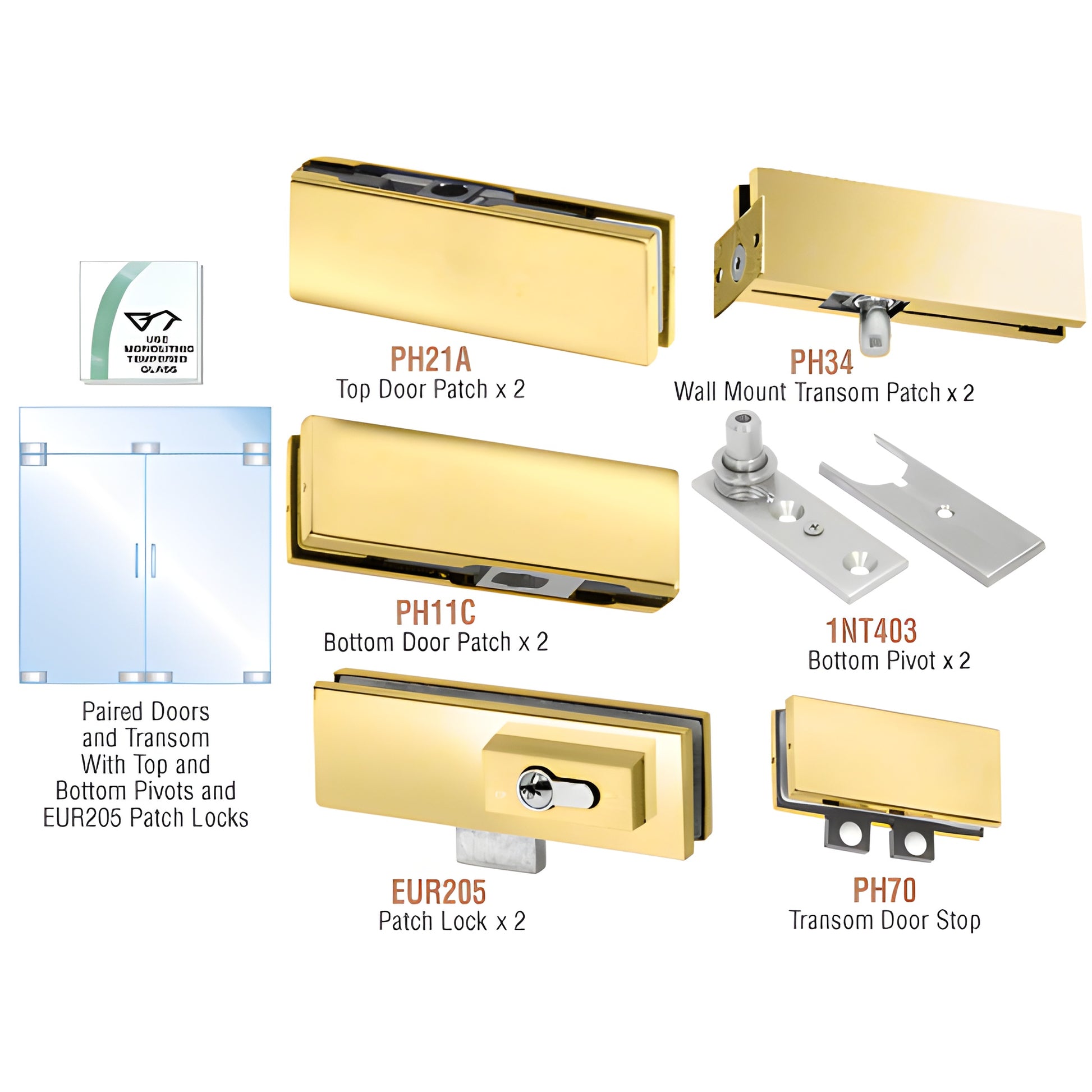

Kit contains:
- 2 - PH34 Wall Mount Transom Patches
- 2 - PH21A Top Door Patches
- 2 - PH11C Bottom Door Patches
- 1 - PH70 Transom Door Stop
- 2 - 1NT403 Bottom Pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)
Kits with locks include two EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately. For maximum door sizes, CRL follows GANA Guidelines.
Brass Finish Advisory:
Brass finishes are durable but can oxidize and develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance details.
Looking for secure, commercial-grade European glass door hardware? Order the CRL PHE6LBR kit today or contact CRL for a quote and glass compatibility guidance.
