CRL Polished Brass European Patch Kit for Double Glass Doors - No Lock
CRL Polished Brass European Patch Kit for Double Glass Doors - No Lock
Regular price
$1,013.72 CAD
Regular price
Sale price
$1,013.72 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE8BR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Pair With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks
CRL PHE8 European Double Door Kits (SKU: PHE8BR) include all hardware to complete a pair of free-swinging glass doors with a fixed transom and two sidelites (glass and additional supports for the fixed transom and sidelites not included). Pivot setback: 2-9/16" (65 mm). Compatible with a floor closer using a tapered spindle (ordered separately). Ideal for commercial storefronts or interior glass partitions requiring a European double door pivot kit for tempered glass.

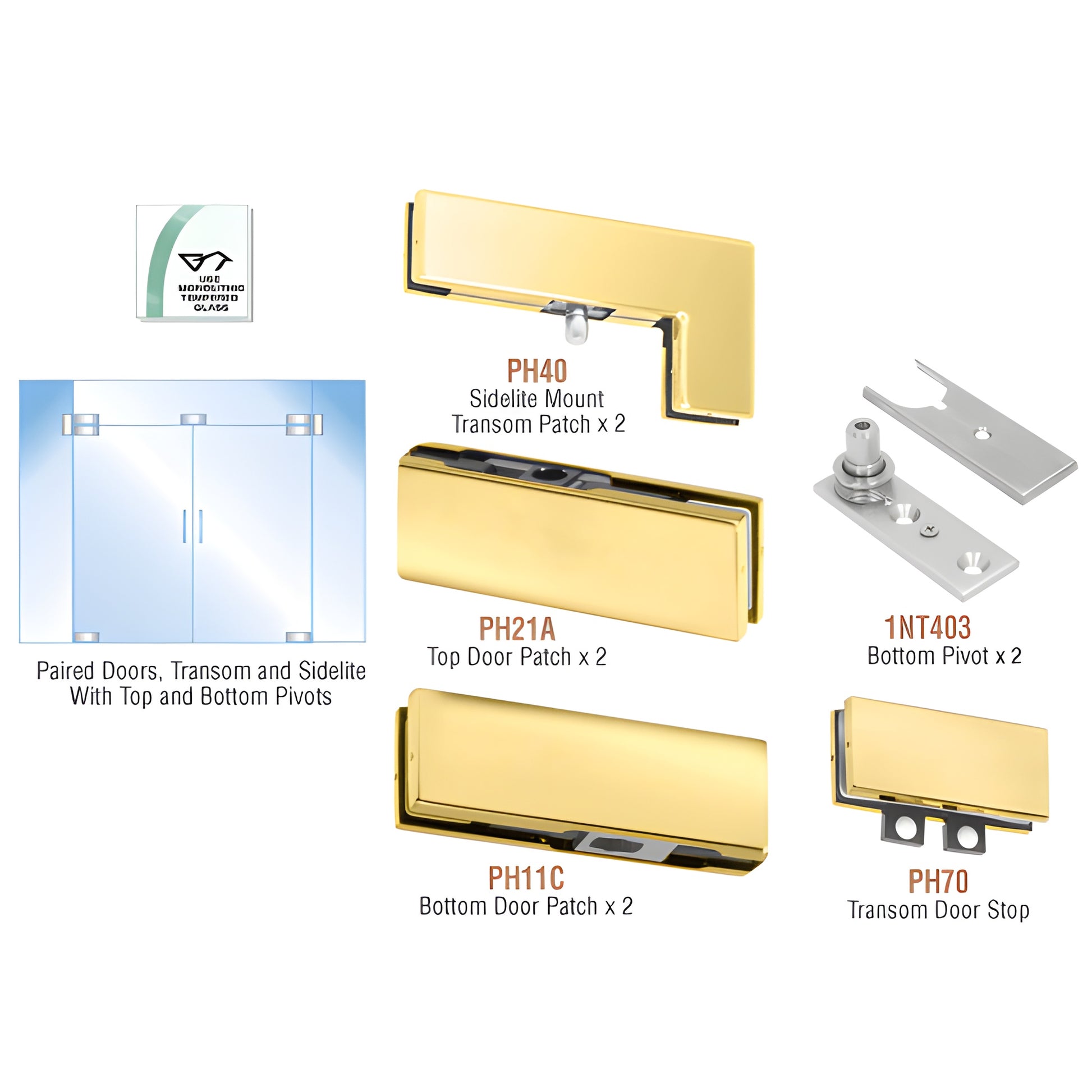

Kit contains:
- 2 - PH40 sidelite mount transom patches
- 2 - PH21A top door patches
- 2 - PH11C bottom door patches
- 1 - PH70 transom door stop
- 2 - 1NT403 bottom pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with locks include two Cat. No. EUR205 patch locks; cylinders, thumbturns, and keepers are ordered separately. CRL follows GANA Guidelines for maximum door sizes when using this product.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and can develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance details.
Features & differentiators: European-style double door pivot system for tempered glass, complete patch hardware kit, optional lock compatibility, and compliance with GANA sizing guidelines—SKU PHE8BR. Order now or contact CRL Customer Service to confirm glass specifications and shipping weight.
