CRL Polished Brass European Patch Kit for Double Glass Doors w/ Lock
CRL Polished Brass European Patch Kit for Double Glass Doors w/ Lock
Regular price
$1,390.65 CAD
Regular price
Sale price
$1,390.65 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE8LBR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Pair With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks
CRL PHE8 European Double Door Kits (SKU: PHE8LBR) include the hardware needed to complete a pair of free-swinging glass doors with a fixed transom and two sidelites (glass and additional transom/sidelite supports not included). Pivot setback is 2-9/16" (65 mm). A floor closer with tapered spindle (ordered separately) may be used with this pivot hardware kit.

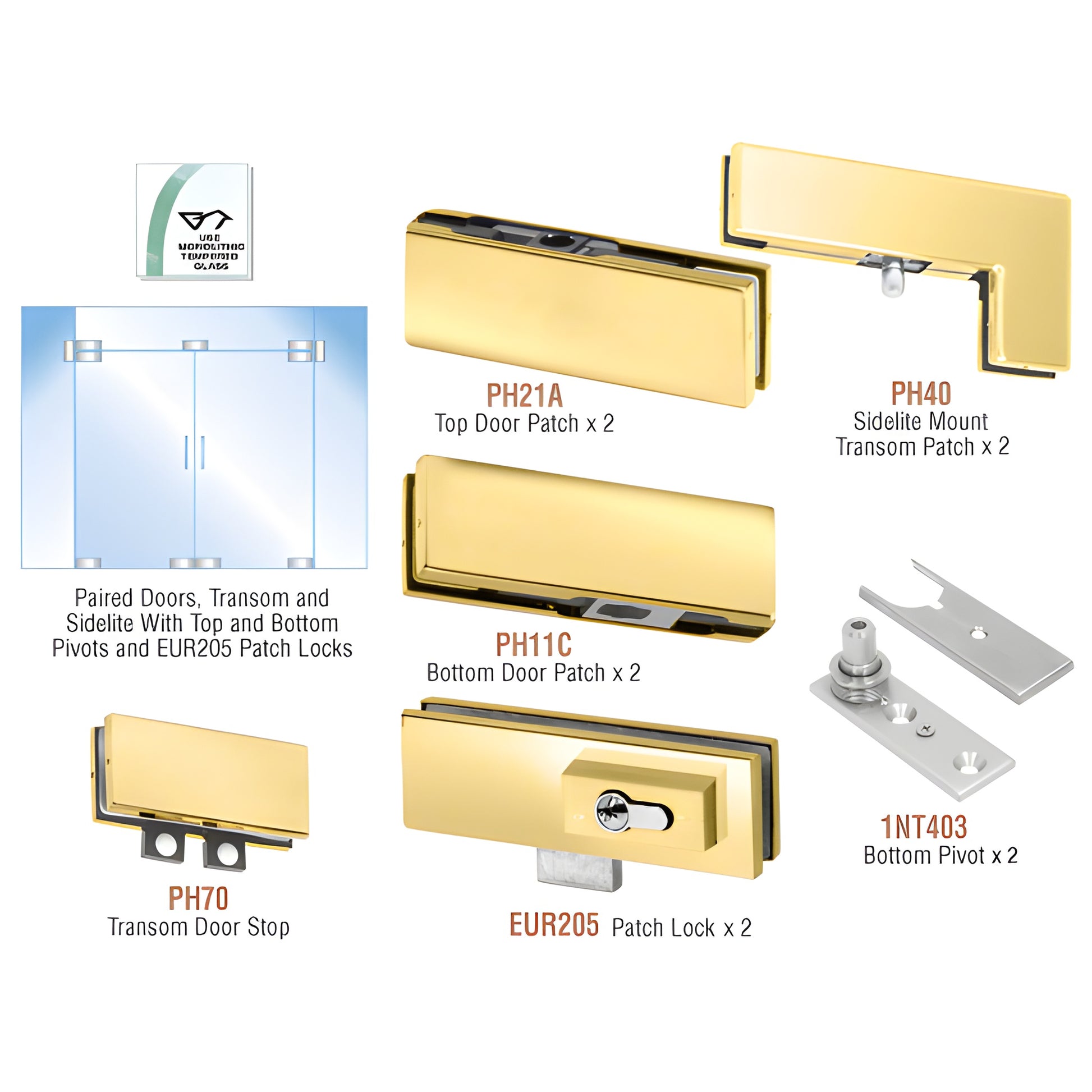

Kit contains:
- 2 - PH40 sidelite mount transom patches
- 2 - PH21A top door patches
- 2 - PH11C bottom door patches
- 1 - PH70 transom door stop
- 2 - 1NT403 bottom pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)
Kits with locks also include two Cat. No. EUR205 patch locks. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time. See the Brass Finish Disclaimer in the Technical References for care and maintenance information.
For pricing, lead time, or to order the CRL PHE8LBR European double door kit for tempered glass, contact CRL Customer Service or your local distributor today.
