CRL Polished Brass European Patch Kit for Glass Doors with Lock
CRL Polished Brass European Patch Kit for Glass Doors with Lock
Regular price
$482.57 CAD
Regular price
Sale price
$482.57 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE1LBR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Single
Door Type
F Style Glass Door
Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks
CRL PHE1 European Patch Door Kits (SKU: PHE1LBR) provide complete hardware for a single free-swinging frameless glass door (does not include glass). Pivot setback is 2-9/16" (65 mm). Compatible with floor closers that use tapered spindles (ordered separately). These kits are ideal for frameless tempered glass installations and commercial glass door projects where reliable patch hardware is required.

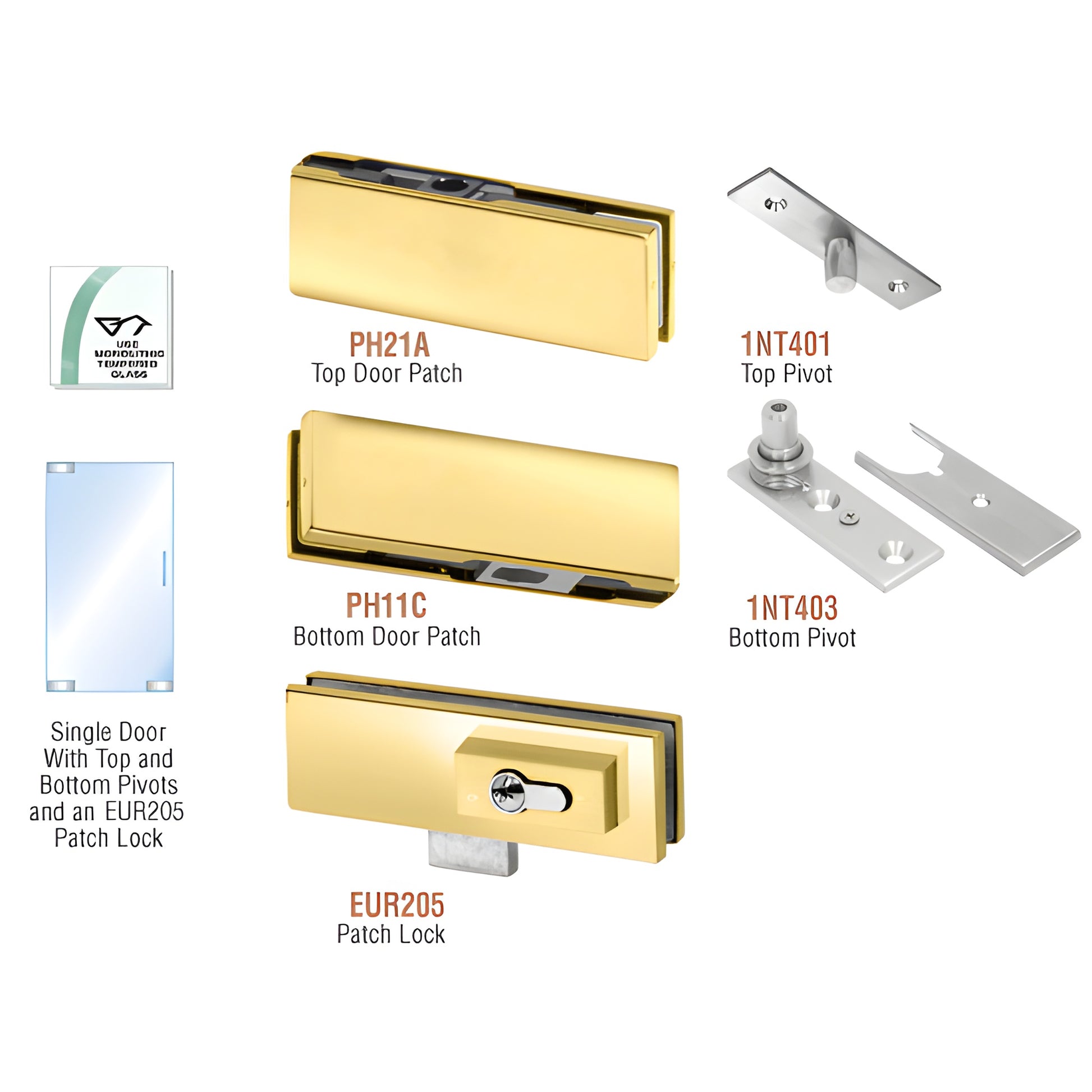

Kit Contains:
- 1 - PH21A Top Door Patch
- 1 - PH11C Bottom Door Patch
- 1 - 1NT401 Top Pivot
- 1 - 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must have required holes and notches)
Kits with lock include one Cat. No. EUR205 patch lock; cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Brass Finish Advisory:
Brass finishes, while durable, are prone to oxidation and can develop a tarnished appearance regardless of initial packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance.
Durable, commercial-grade European patch door kit for 3/8" or 1/2" tempered glass — order PHE1LBR today to complete your frameless glass door installation.
Specifications
Cleaning & Maintenance
