CRL Polished Brass Floor Flange Socket with Cap for 2 in Tubing
CRL Polished Brass Floor Flange Socket with Cap for 2 in Tubing
Regular price
$118.75 CAD
Regular price
Sale price
$118.75 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HR20FSPB
Shipping Weight: 1.675 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.675 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
5 in. (127 mm)
Finish/Color
Polished Brass
Height
4-3/4 in. (121 mm)
Material
Brass
Width
3-1/4 in. (83 mm)
Overview
- Ready-to-Install
- Three architectural finishes
- 304 stainless alloy or 260 brass alloy standard

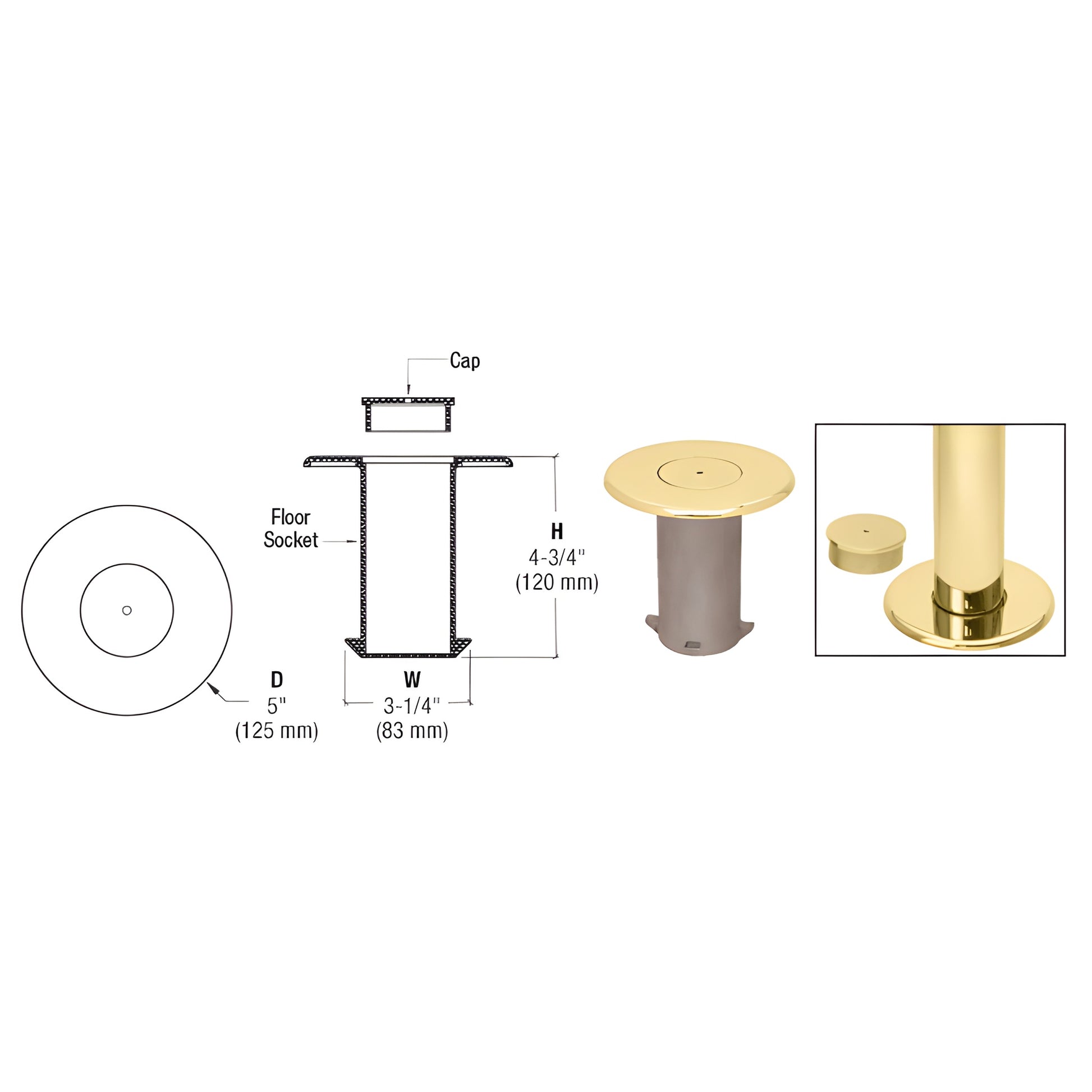

CRL Floor Sockets with Caps (SKU: HR20FSPB) provide a low-profile, ready-to-install solution for intermittent partition posts. The socket inserts into a 3-1/4" (82.5 mm) diameter, 5" (127 mm) deep hole and is set with expanding cement. Remove the cap to accept a partition post; replace the cap when posts are not required to restore a finished, trip-resistant floor surface. Flange height projects only 1/4" (6 mm) above the floor for a discreet appearance.
Brass Finish Advisory:
Brass is durable but prone to oxidation and may develop a tarnished appearance over time regardless of original packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance tips.
Durable materials, three architectural finishes, and a minimal 1/4" flange make the HR20FSPB an ideal partition post floor socket—order or contact CRL for availability and installation guidance.
Specifications

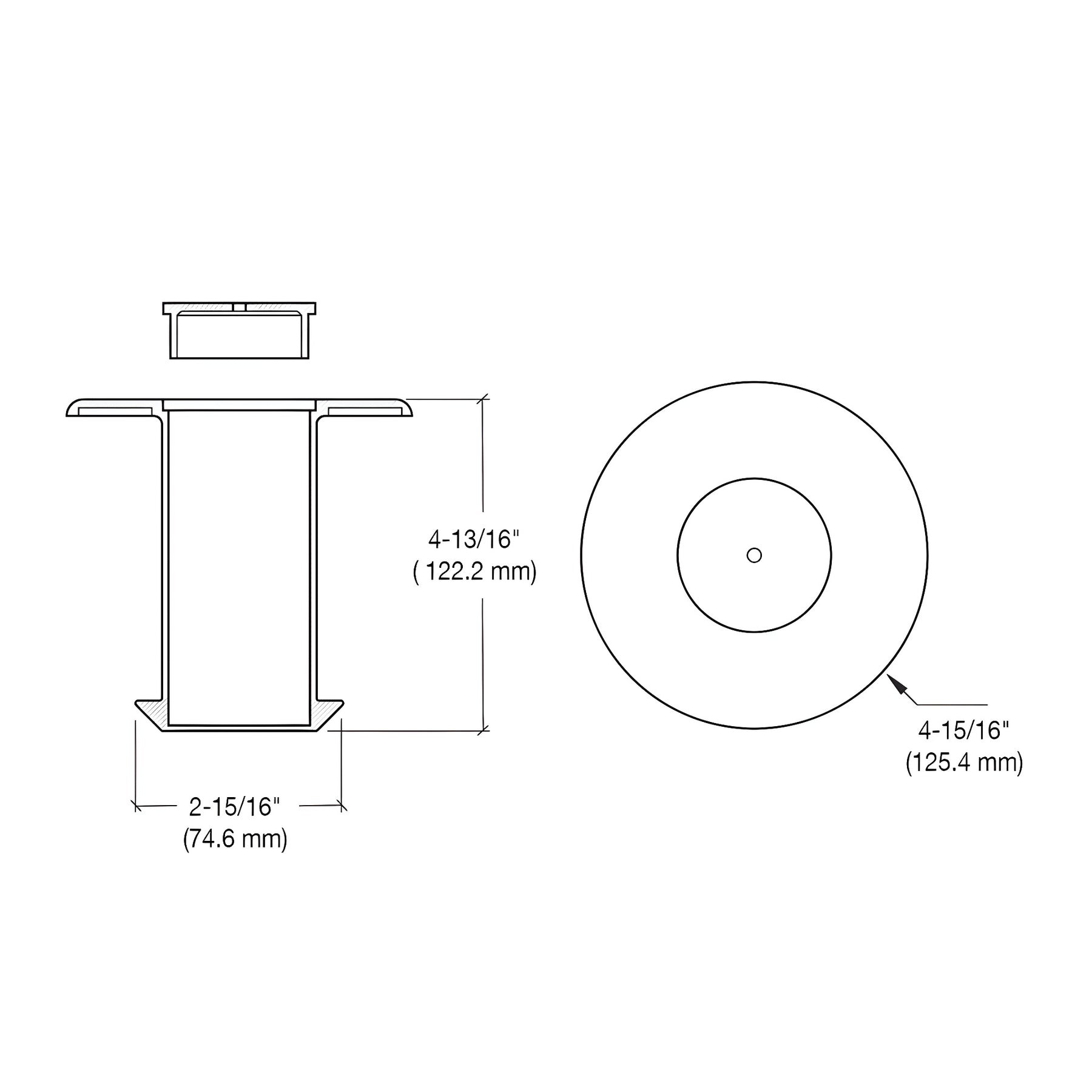

CAD Drawings - pdf
