CRL Brushed Stainless Steel Floor Socket with Cap for 2 in. Tubing
CRL Brushed Stainless Steel Floor Socket with Cap for 2 in. Tubing
Regular price
$169.30 CAD
Regular price
Sale price
$169.30 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HR20FSBS
Shipping Weight: 14.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
5 in. (127 mm)
Finish/Color
Brushed Stainless Steel
Height
4-3/4 in. (121 mm)
Material
Stainless Steel
Width
3-1/4 in. (83 mm)
Overview
- Ready-to-Install floor socket with cap
- Three architectural finishes — ideal for commercial and residential partitions
- Available in 304 stainless alloy or 260 brass alloy

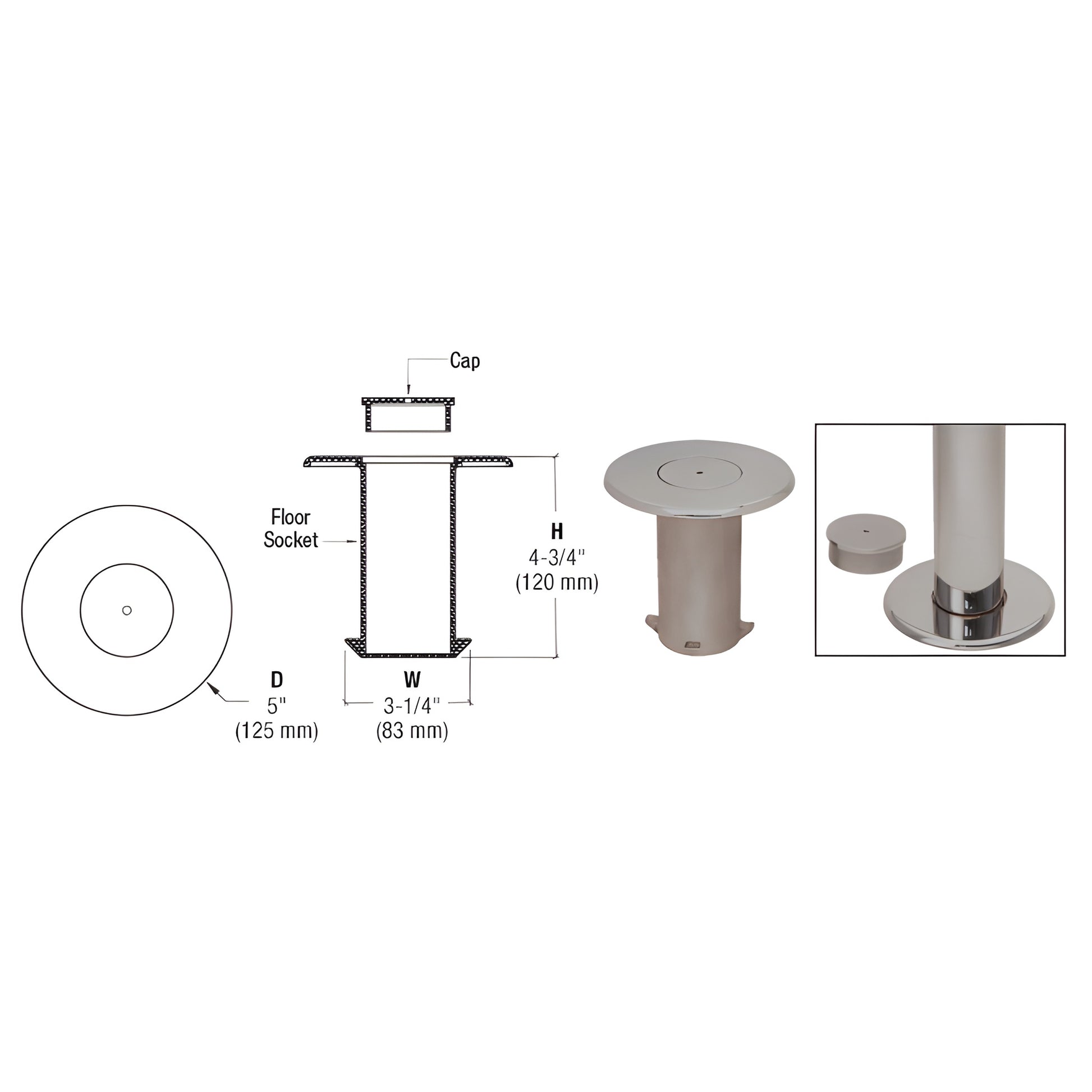

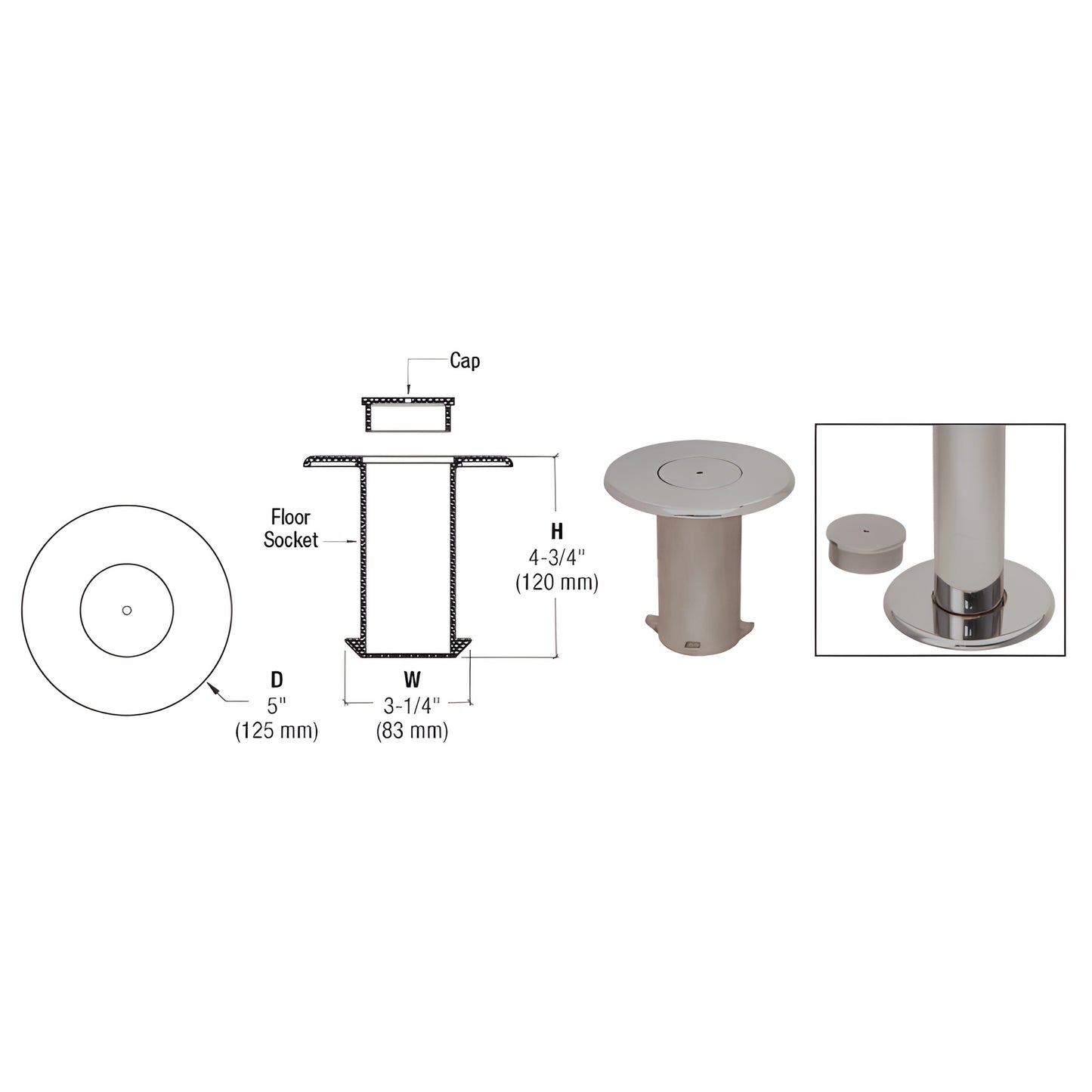

CRL Floor Sockets with Caps (SKU: HR20FSBS) provide a low-profile, ready-to-install solution for situations where partition posts are required only intermittently. The floor socket installs into a 3-1/4" (82.5 mm) diameter, 5" (127 mm) deep hole and is set with expanding cement. When posts are needed, remove the cap and insert partition posts; when not in use, replace the cap to prevent tripping and maintain a finished appearance. The flange projects only 1/4" (6 mm) above the floor for minimal obstruction.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for full care instructions.
Need assistance or ready to order HR20FSBS? Contact CRL Customer Service or add to cart to select finish and confirm shipping details.
Specifications

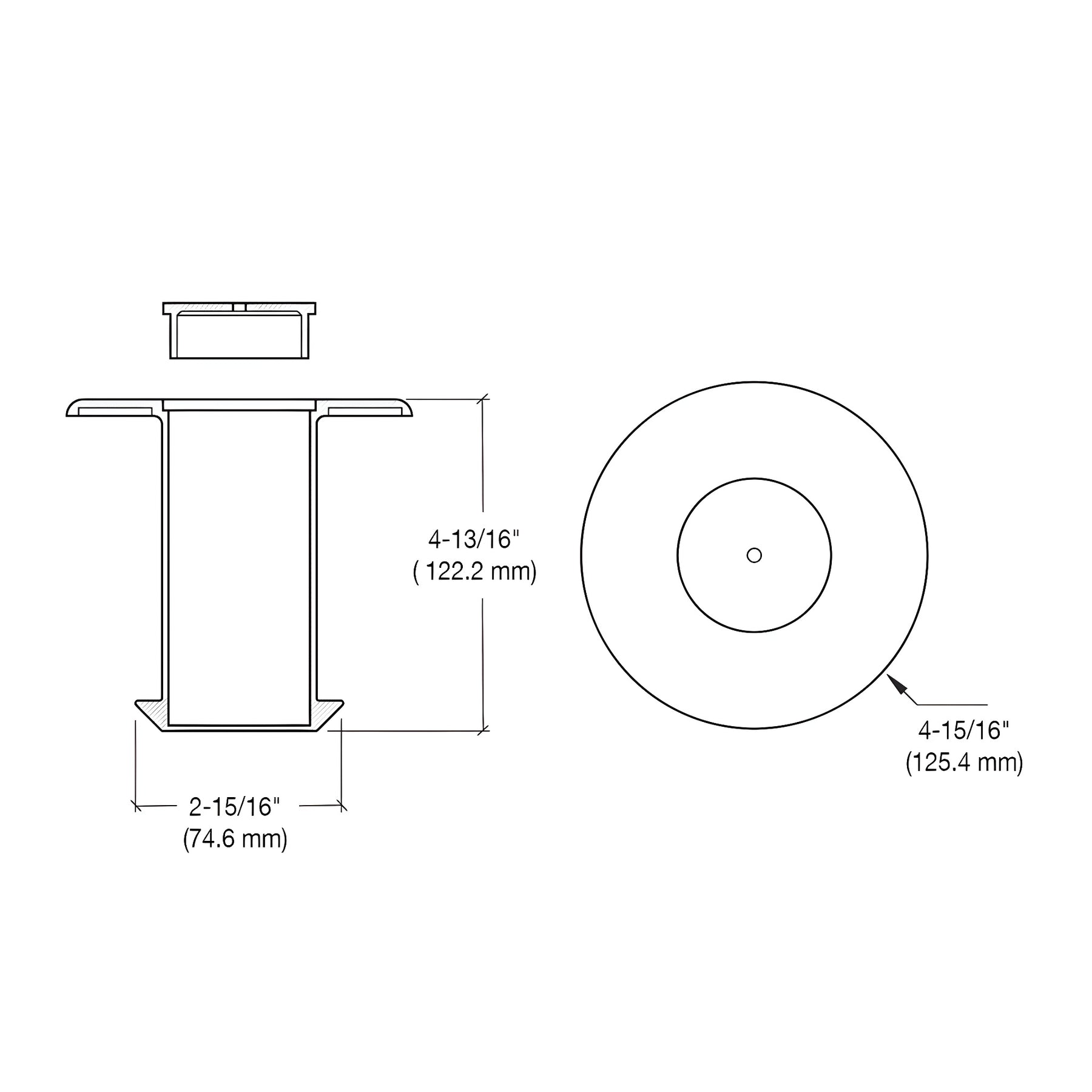

CAD Drawings - pdf
