CRL Polished Brass Grade 1 Passage Door Lever Lock Housing
CRL Polished Brass Grade 1 Passage Door Lever Lock Housing
Regular price
$452.97 CAD
Regular price
Sale price
$452.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LH10PB
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cover Style
Round
Finish/Color
Polished Brass
Glazing Thickness
3/8 in. (10 mm)
Height
4-1/2 in. (114 mm)
Width
4 in. (102 mm)
Overview
- Low-profile body design for use with 3/8" or 1/2" (10 or 12 mm) glass
- Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lock
- Non-handed and reversible
- Five architectural finishes available
- Four function options

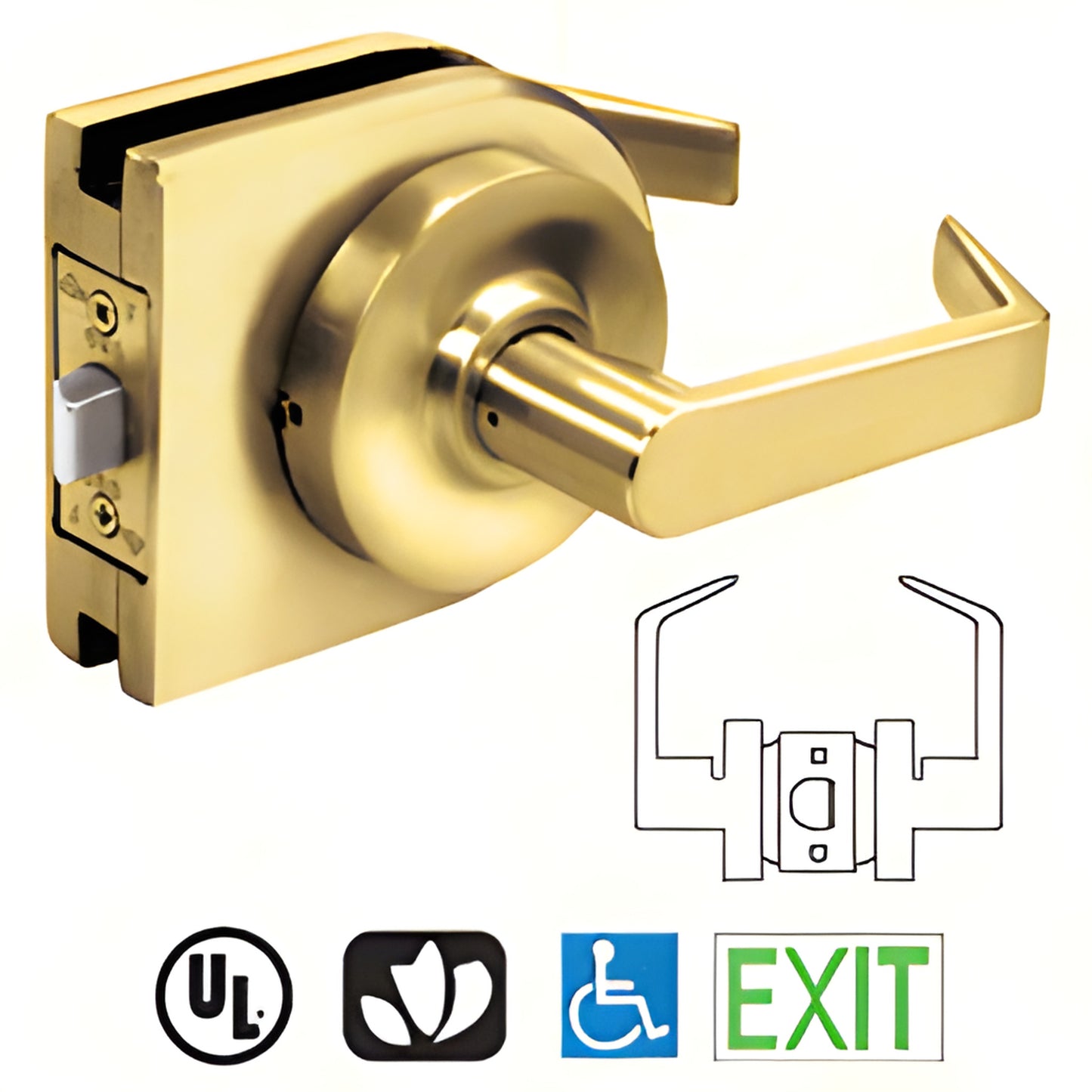

CRL's Lever Lock Housings (SKU: LH10PB) are easy-to-install and ship complete with housing and lever lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. Entrance and storeroom models are available with either a Schlage® 'C' 6-pin keyway or a 7‑pin Small Format Interchangeable Core (SFIC). Includes ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike. These lever lock housings are an ideal solution for frameless glass doors and commercial glass storefronts that require low-profile, durable hardware.
• Meets ANSI A156.2 Grade 1; UL10C and UBC 7.2 for positive pressure
• Compliant with ANSI A117.1 and ADA for barrier-free accessibility
• C-UBC California Amended Uniform Building Code – 2001
• NFPA-80 National Fire Protection – 1999
• NFPA 101 Life Safety – 2000
Product Warning:
Glass fabrication is required. Installation instructions and fabrication template are included.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance details.
Discover the low-profile LH10PB lever lock housing for secure, ADA-compliant glass door installations — order or request a quote today.
