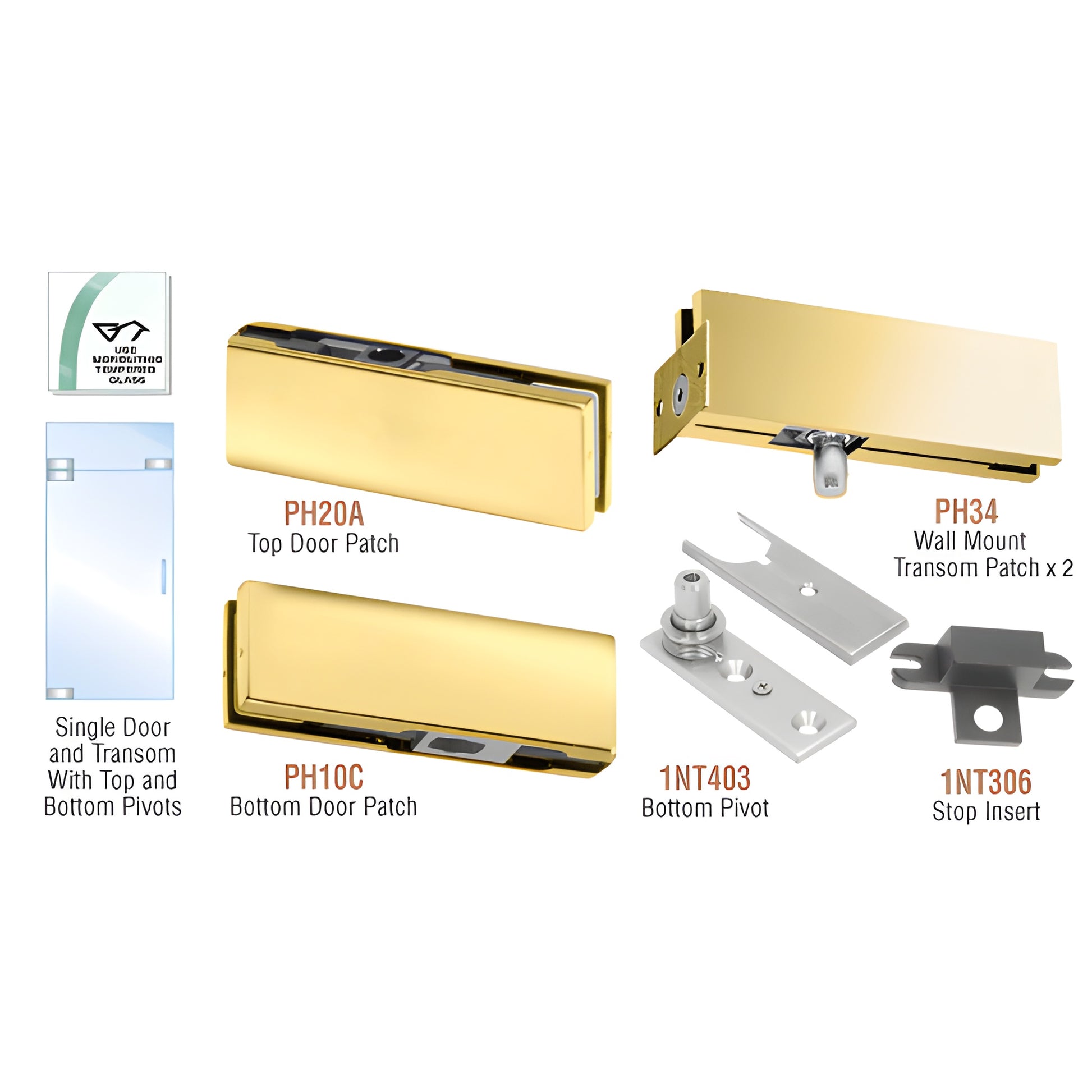

• PHA3BR polished brass patch door kit with fixed transom - top & bottom patches, transom patches, bottom pivot, stop insert.
1 1

CRL

CRL Polished Brass Patch Door Kit for Fixed Transom (No Lock)

CRL Polished Brass Patch Door Kit for Fixed Transom (No Lock)

$479.72 CAD
$479.72 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA3BR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single With Transom
Door Type
A Style Glass Door
Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4

Overview

  • Fittings for fixed glass transom
  • High-density cast body for durable patch fittings

CRL PHA3 North American Patch Door Kits (SKU: PHA3BR) include all hardware to install a single free-swinging glass door with a fixed transom—glass and additional transom supports are not included. Pivot setback: 2-3/4" (70 mm). Compatible with most floor closers using tapered spindles (floor closers ordered separately). Designed for frameless glass doors and transoms in commercial and residential applications.

Kit contains:
  • 1 - PH20A Top Door Patch
  • 1 - PH10C Bottom Door Patch
  • 2 - PH34 Wall Mount Transom Patch
  • 1 - 1NT306 Stop Insert
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)

Kits with lock option include one AMR205 patch lock; cylinders, thumbturns, and keepers sold separately.

Code & Guidelines: For maximum door sizes, CRL follows GANA guidelines.

Most shipping weights are approximate. If you need exact weight to determine shipping costs before ordering, contact CRL Customer Service. Product images are representative; final color may vary by monitor settings.

Brass Finish Advisory:
Brass finishes are durable but may oxidize and develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance details.

Choose the CRL PHA3BR patch door kit for reliable, high-density cast patches and complete fixed-transom hardware. Order now or contact us for specifications and shipping weight details.
