CRL Polished Brass Patch Door Kit for Transom & 2 Sidelites (No Lock)

CRL Polished Brass Patch Door Kit for Transom & 2 Sidelites (No Lock)

$641.07 CAD
$641.07 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHE5BR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Sidelite-Single With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16

Overview

  • 'All-Glass' Look
  • For 3/8" or 1/2" (10 or 12 mm) tempered glass sidelites and transom
  • Available with or without locks (SKU PHE5BR)
CRL PHE5 European Door Kits deliver a clean, frameless "all-glass" appearance for free-swinging interior doors with a fixed transom and two sidelites. Designed for 3/8" or 1/2" (10 or 12 mm) tempered glass, these kits include all hardware needed to assemble the door (glass and additional supports for the fixed transom and sidelites are not included). Pivot setback is 2-9/16" (65 mm). Use with a separately ordered floor closer with tapered spindle if required. These kits follow GANA Guidelines for maximum door sizes.

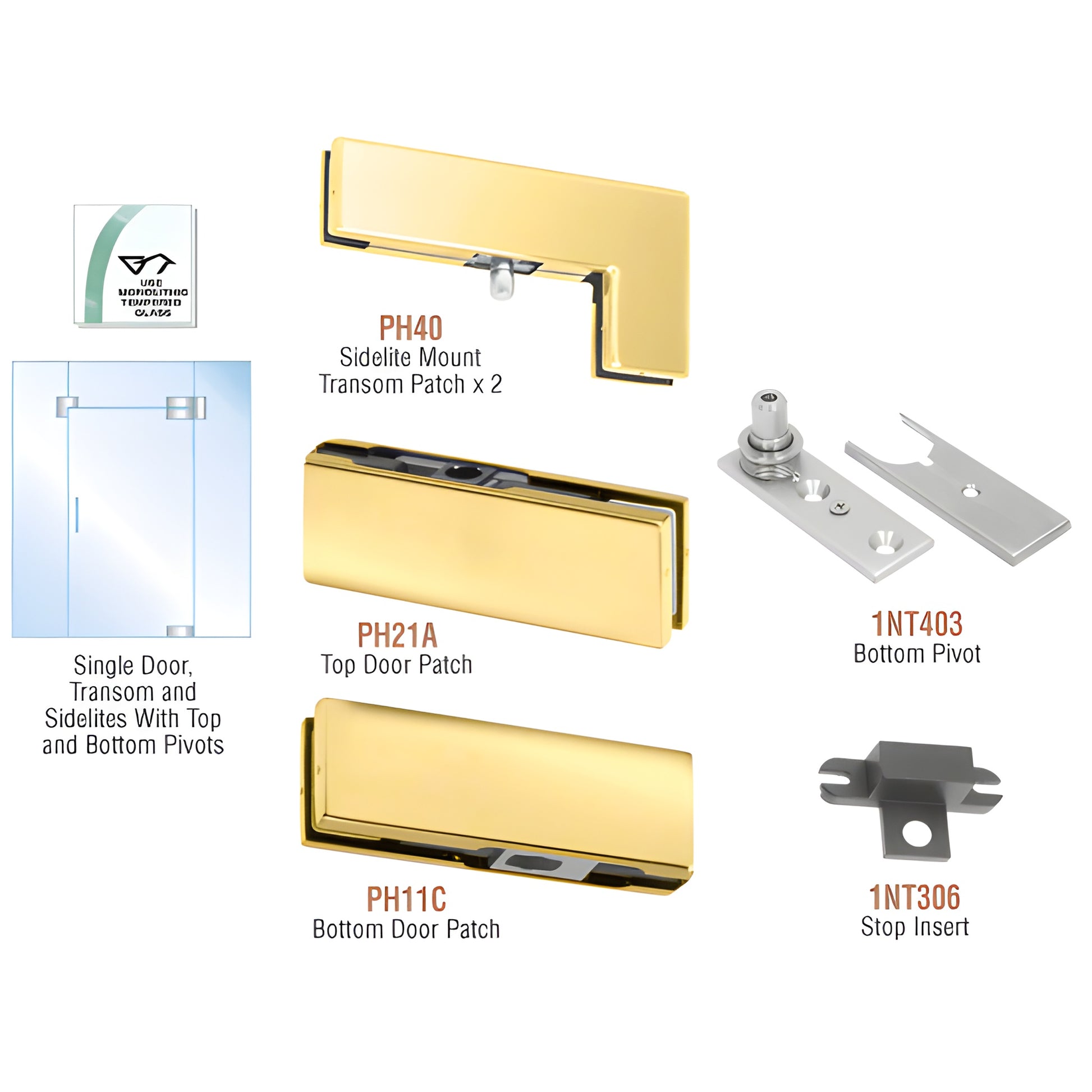

Kit Contains:
  • 2 - PH40 sidelite mount transom patches
  • 1 - PH21A top door patch
  • 1 - PH11C bottom door patch
  • 1 - 1NT306 stop insert
  • 1 - 1NT403 bottom pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)

Kits sold with locks include one EUR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.

Most shipping weights are approximate. If you need an exact weight to determine shipping costs prior to ordering, contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.

Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time. For care and maintenance details, see the Brass Finish Disclaimer in the Technical References section.

Feature-rich European door kit for tempered glass sidelites and transom—order PHE5BR or contact us for pricing and availability.
