CRL Polished Brass Patch Kit for Double Glass Doors - No Lock
CRL Polished Brass Patch Kit for Double Glass Doors - No Lock
Regular price
$945.18 CAD
Regular price
Sale price
$945.18 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE7BR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Pair With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Five architectural finishes
- Available with or without locks
CRL PHE7 European Double Door Kits (SKU: PHE7BR) include all hardware needed to complete a pair of free-swinging, frameless glass doors with fixed transom and sidelite, excluding glass and any additional supports for the fixed transom and sidelite. Pivot setback: 2-9/16" (65 mm). Compatible with a floor closer with tapered spindle (ordered separately). Ideal for commercial and architectural applications requiring durable European-style double door hardware for tempered glass.

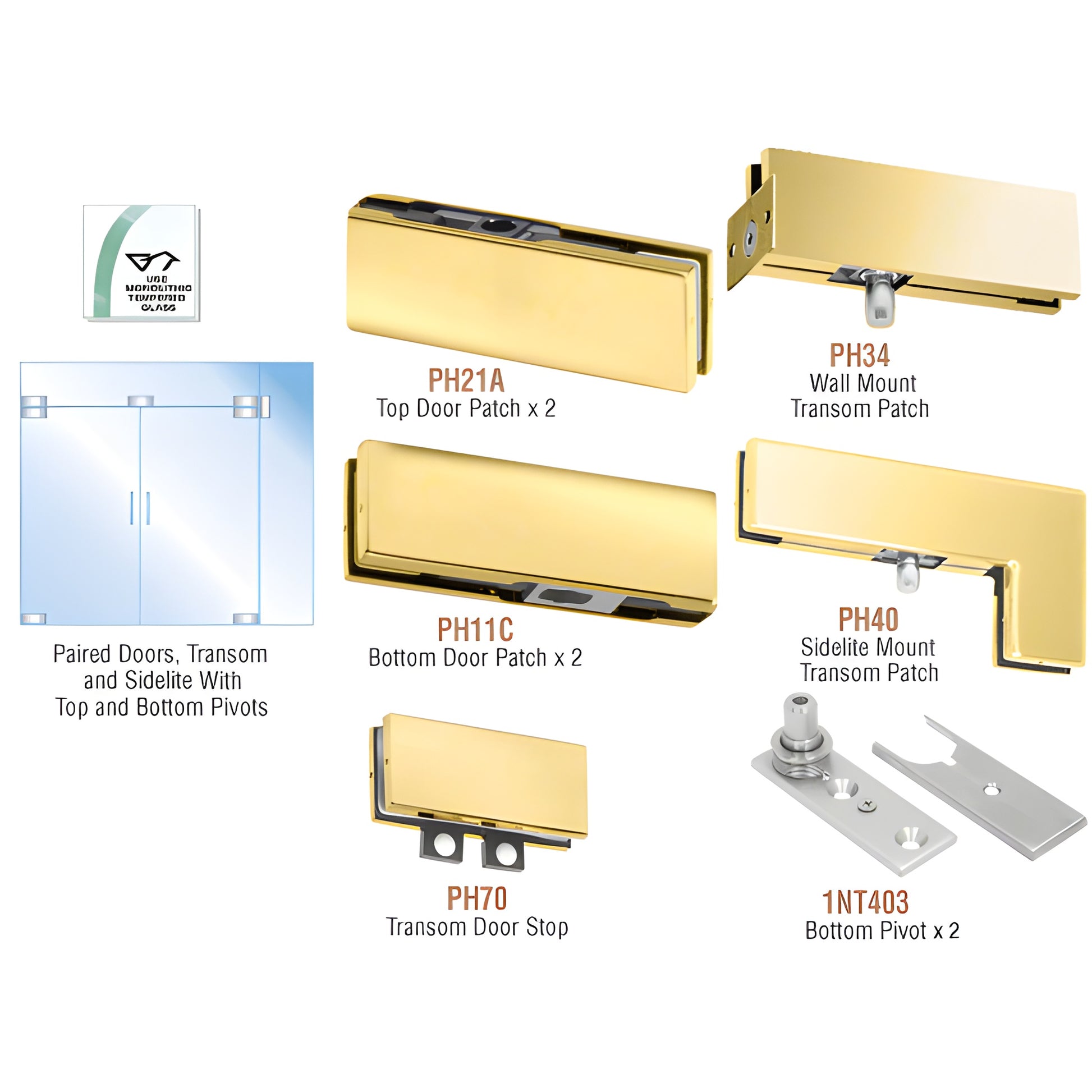

Kit Contains:
- 1 - PH34 Wall Mount Transom Patch
- 1 - PH40 Sidelite Mount Transom Patch
- 2 - PH21A Top Door Patches
- 2 - PH11C Bottom Door Patches
- 1 - PH70 Transom Door Stop
- 2 - 1NT403 Bottom Pivots
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must have required holes and notches)
Kits with locks include two EUR205 patch locks. Cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Brass Finish Advisory:
Brass finishes are durable but can oxidize over time, which may cause a tarnished appearance regardless of initial packaging or storage. See the Brass Finish Disclaimer in the Technical References section for care and maintenance recommendations.
Key differentiators: complete European-style double door hardware kit for 3/8"–1/2" tempered glass, five architectural finishes, optional locks (EUR205 available), and compatibility with floor closers. Order SKU PHE7BR today to complete your frameless commercial glass door project.
