CRL Polished Brass Patch Kit w/ Lock for Fixed Transom & 2 Sidelites
CRL Polished Brass Patch Kit w/ Lock for Fixed Transom & 2 Sidelites
Regular price
$836.67 CAD
Regular price
Sale price
$836.67 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE5LBR
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Single With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Polished Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- 'All-Glass' look for frameless entrances
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks (SKU: PHE5LBR)
CRL PHE5 European Door Kits — complete European-style patch hardware kit for a free-swinging glass door with fixed transom and two sidelites (excludes glass and any additional supports for fixed transom/sidelites). Pivot setback: 2-9/16" (65 mm). Compatible with a separately ordered floor closer using a tapered spindle.

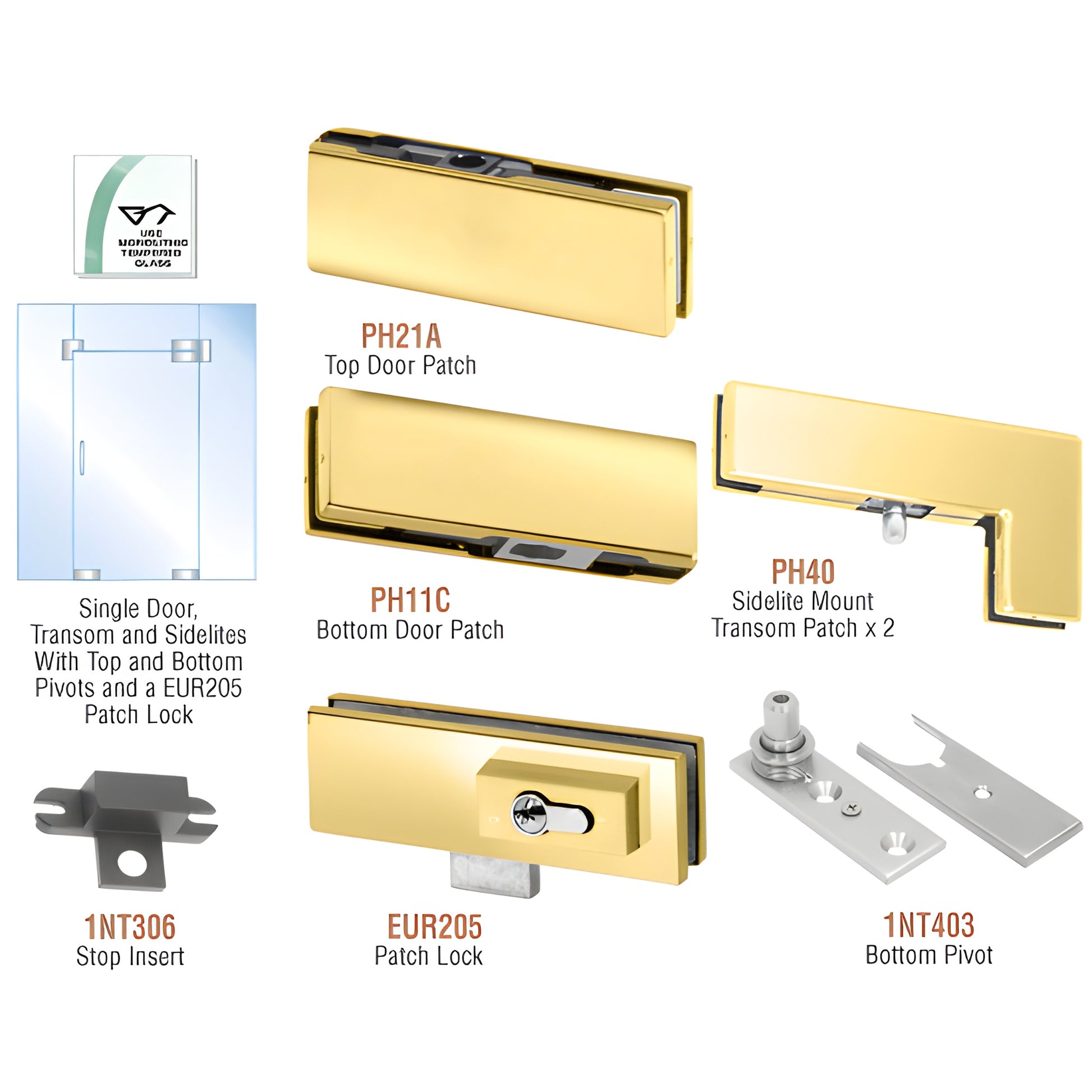

Kit contains:
- 2 × PH40 sidelite mount transom patches
- 1 × PH21A top door patch
- 1 × PH11C bottom door patch
- 1 × 1NT306 stop insert
- 1 × 1NT403 bottom pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must include required holes and notches)
Kits with lock include one Cat. No. EUR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.
Code compliance & sizing: For maximum door sizes and safe use, CRL follows GANA Guidelines.
Brass Finish Advisory:
Brass finishes are durable but can oxidize and tarnish over time regardless of packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance.
Why choose this kit: Provides a seamless "all-glass" appearance, designed specifically for tempered glass sidelites and transoms, and offered with optional patch lock for single-source hardware coordination — ideal for commercial and high-end residential frameless glass doors.
Order the CRL PHE5 European Door Kit (SKU: PHE5LBR) or contact us for compatibility and quoting assistance.
