CRL Essence Series Polished Chrome Sliding Shower Door Kit

• Patents: U.S. 9,364,121; Canada 2,853,462; Australia 2012328876
• Headerless system for a frameless look both vertically and horizontally — ideal as a headerless sliding glass door kit (SKU: ESS1CH)
• Bottom-rolling system with integrated height adjustment for smooth operation
• Curved bottom rollers with anti-derail and anti-pinch features for safer, dependable performance
• For use only with 1/2" (12 mm) thick monolithic tempered safety glass (not included)
• Stocked in four popular finishes to match contemporary frameless glass door installations
• Glass brackets and door handle or knob sold separately

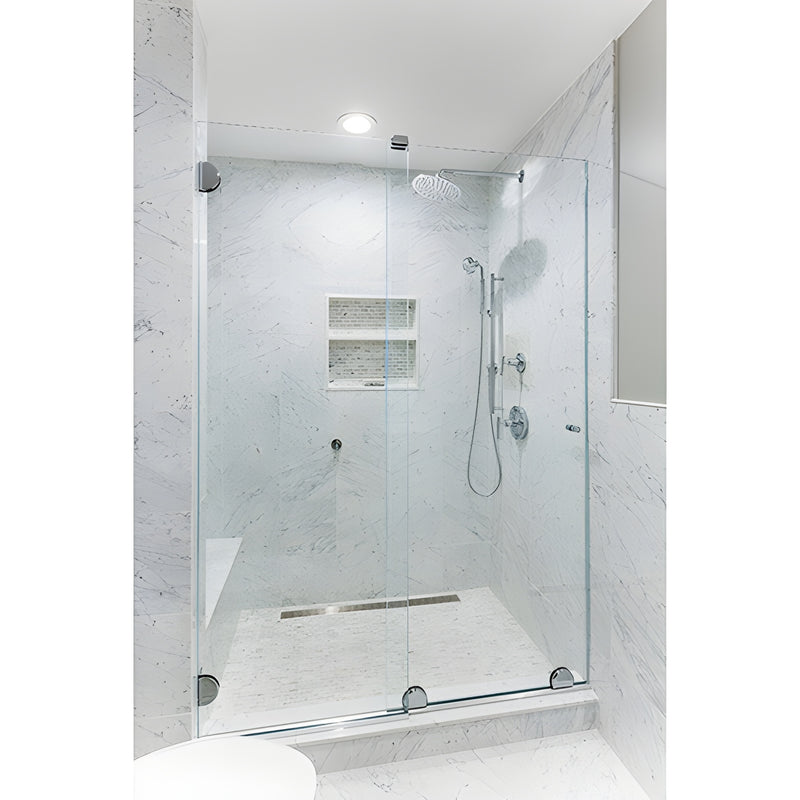

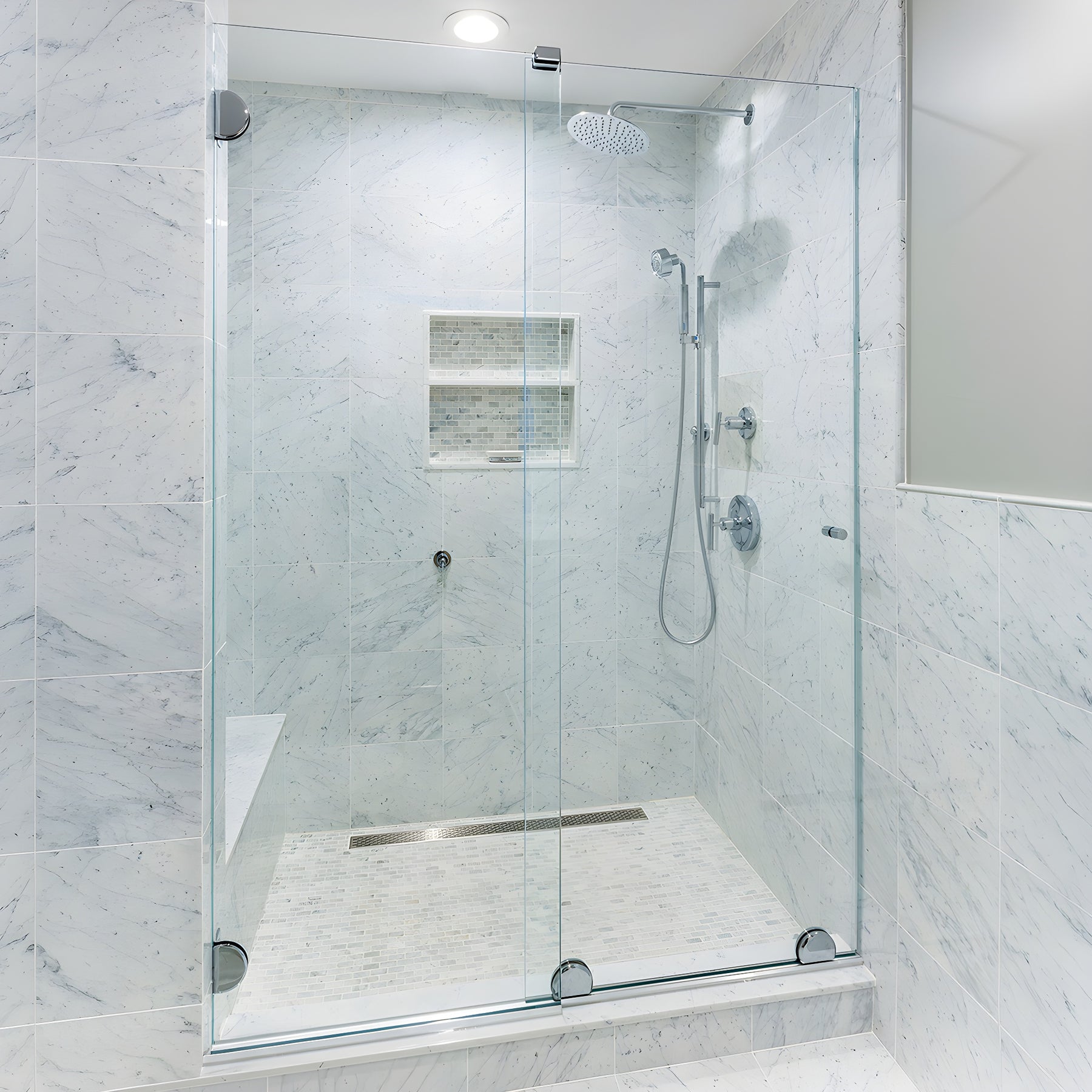

The CRL Essence Series Basic Sliding Door Kit (ESS1CH) is a headerless, bottom-rolling sliding glass door kit that delivers a clean frameless appearance and quiet, reliable operation. Horizontal water management uses the included bottom track; vertical sealing is achieved with the DK98L Clear Seal. The unique curved bottom rollers combine anti-derail and anti-pinch protection for improved safety and longevity. Designed specifically for use with 1/2" (12 mm) tempered safety glass (monolithic), the kit is stocked in four popular finishes to suit frameless shower or interior sliding glass door projects.


KIT INCLUDES:
Two - Bottom Rollers
One - Spanner Wrench for Roller Adjustment
One - Top Door Guide
One - 64" (1.63 m) Bottom Track
One - 98" (2.49 m) U-Channel
One - 98" (2.49 m) Plastic L-Seal
One - SDCEC12 End Cap for Channel
One - 1/16" (1.6 mm) Neoprene Setting Block

NOTE: Glass brackets, handle or knob, and other accessories sold separately.

Product Warning:
Maximum door size: Must not exceed 84" (2.13 m) in height or 127 lbs. (57.6 kg).
GE90S9 (Square) or CL90S (Round) wall clamps must be used on fixed panel and are sold separately.


Add the ESS1CH Essence Series sliding door kit to
