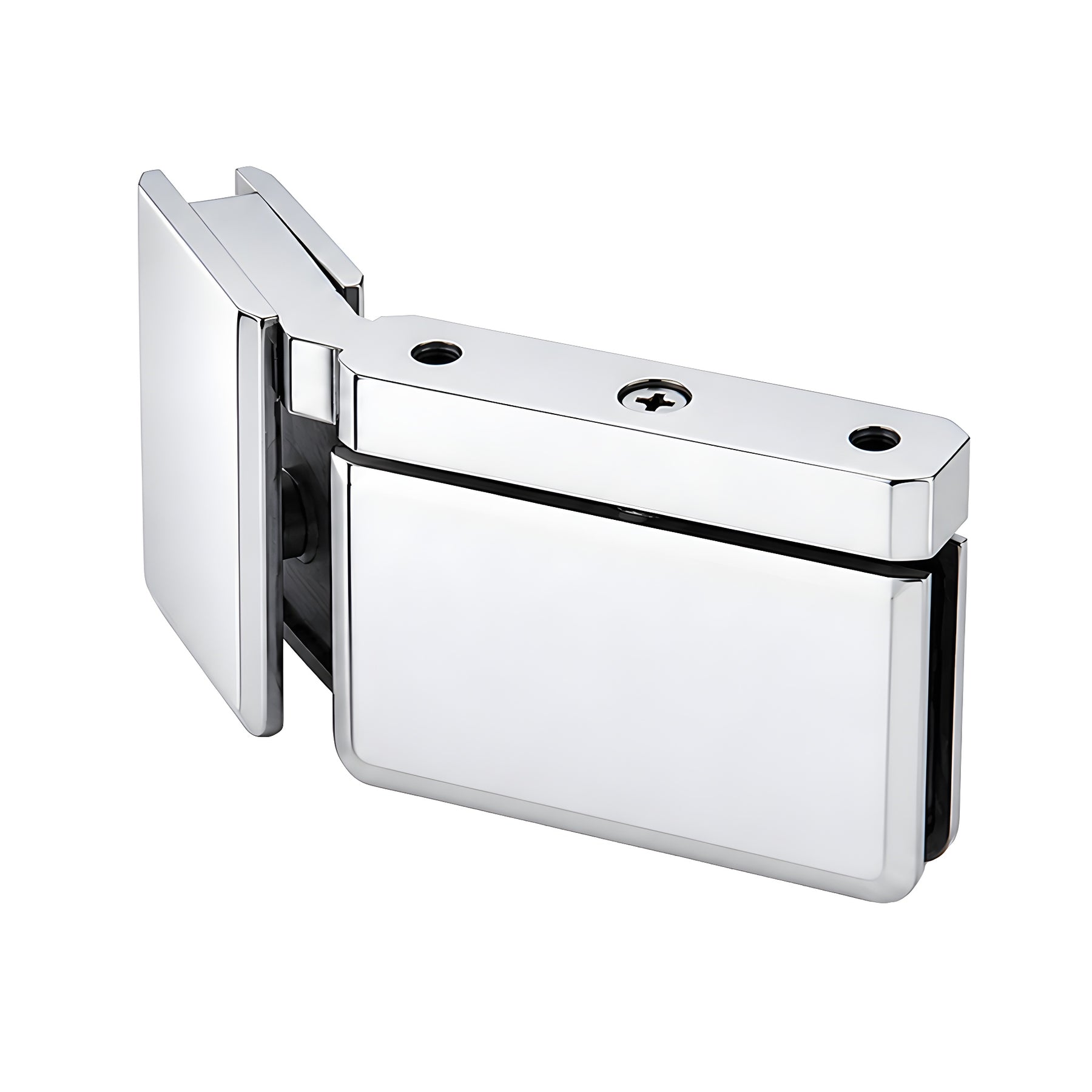

CRL Prima 135° Left-Hand Polished Chrome Glass Door Hinge w/ U-Clamp
CRL Prima 135° Left-Hand Polished Chrome Glass Door Hinge w/ U-Clamp
Regular price
$177.00 CAD
Regular price
Sale price
$177.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PPH0735LCH
Shipping Weight: 2.32 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.32 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Beveled
Edge Profile
Beveled
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Polished Chrome
Glass To Glass Angle
135
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing
Left Hand

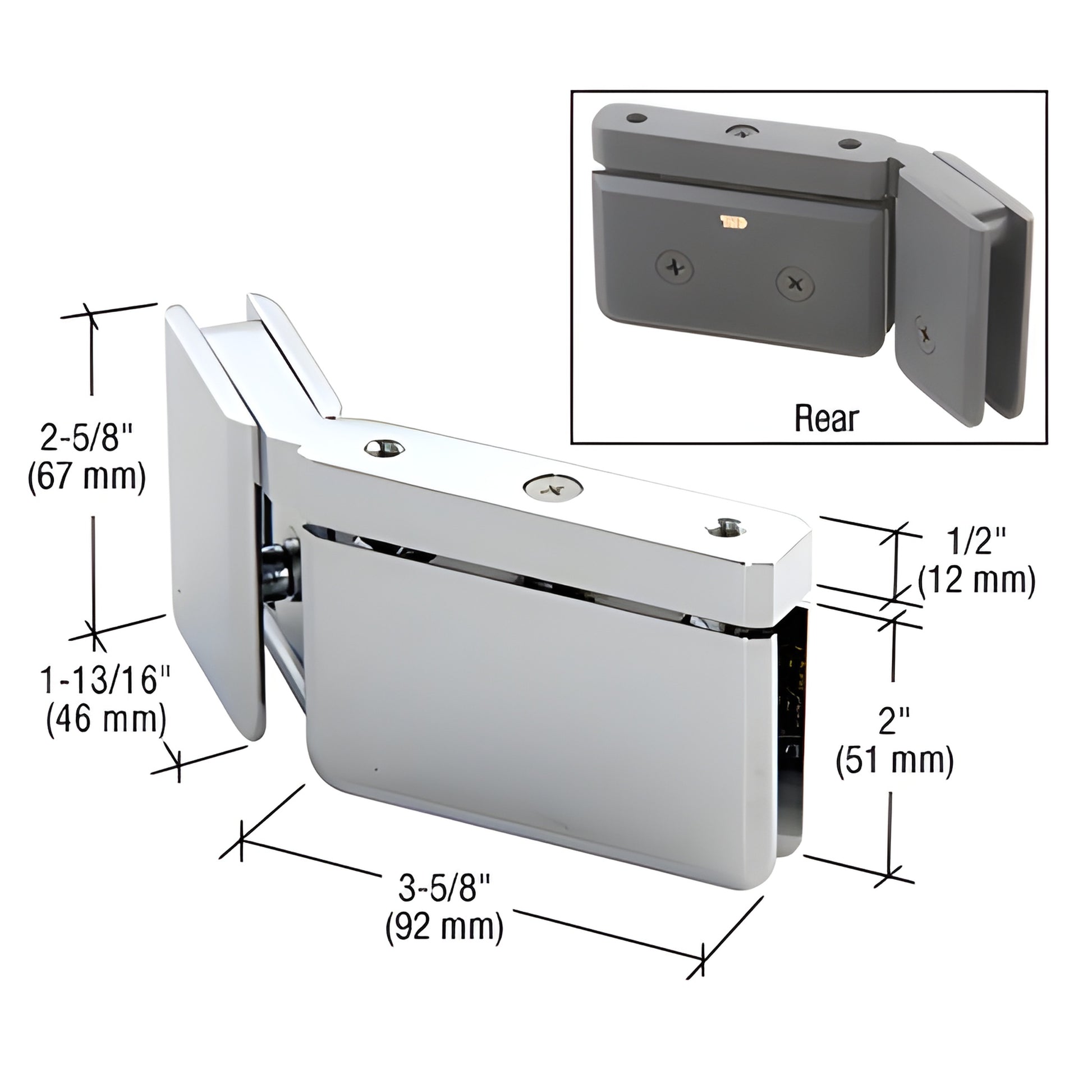

Height
2-5/8 in. (67 mm)
Height - Door Portion
2
Height - Sidelite Portion
2-5/8
Material
Brass
Maximum Door Weight
100 lbs. (45.4 kg)
Maximum Door Width
31 in. (787 mm)
Mounting Type
Head & Sill Mount
Opening Style
Pivot(floor)
Self-Centering
Yes
Series
Prima
Width - Door Portion
3-5/8 in. (92 mm)
Width - Sidelite Portion
1-13/16
Overview
- Provides an alternative to traditional header systems
- CRL engineered design criteria must be met before using this hinge
- Use with monolithic tempered safety glass
- Stocked in six popular finishes; custom finishes available
- For use with 3/8" or 5/16" (10 mm or 8 mm) thick tempered safety glass
The CRL 135 Degree Prima Hinge with U-Clamp (SKU: PPH0735LCH) lets installers mount a shower door next to a 135° fixed panel without a header, creating a clean, no-header shower door installation. It can be used at the top of the enclosure, and the same method may be applied at the bottom of the door; alternately use a standard PPH01 model with a separate U-Clamp or U-Channel at the bottom. This 135 degree shower door hinge with U-clamp is stocked in six popular finishes and is compatible with 3/8" or 5/16" tempered safety glass.
NOTE: See "Design Criteria" for installation guidelines and maximum panel sizes for this hinge.
Product Warning:
CRL Shower Door Hinges are designed for residential and hotel shower use. Use for purposes other than intended requires approval from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge; cut-out dimensions for CRL hinges may not match other brands.
Order the CRL 135 Degree Prima Hinge with U-Clamp (PPH0735LCH) today to complete your no-header shower door project.
