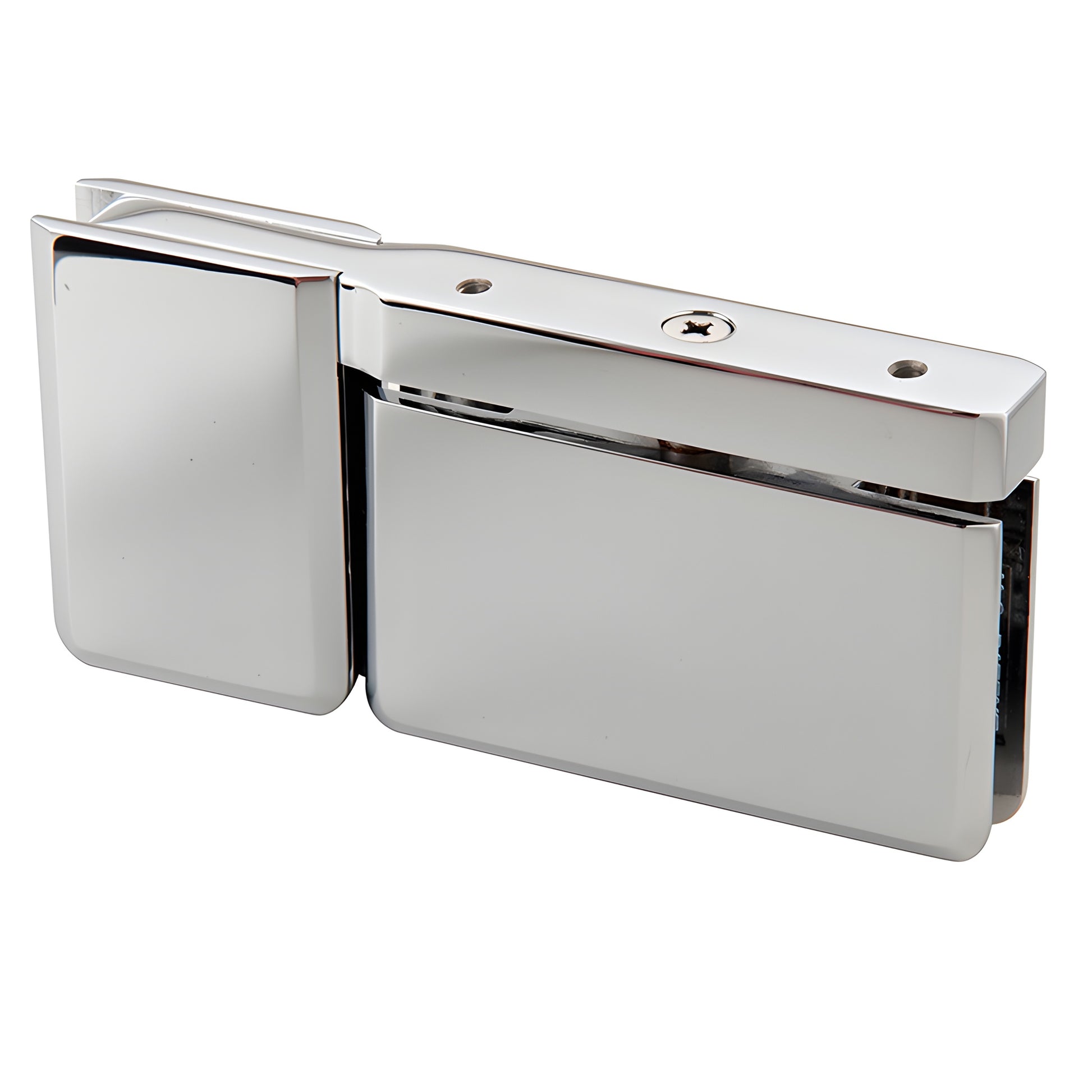

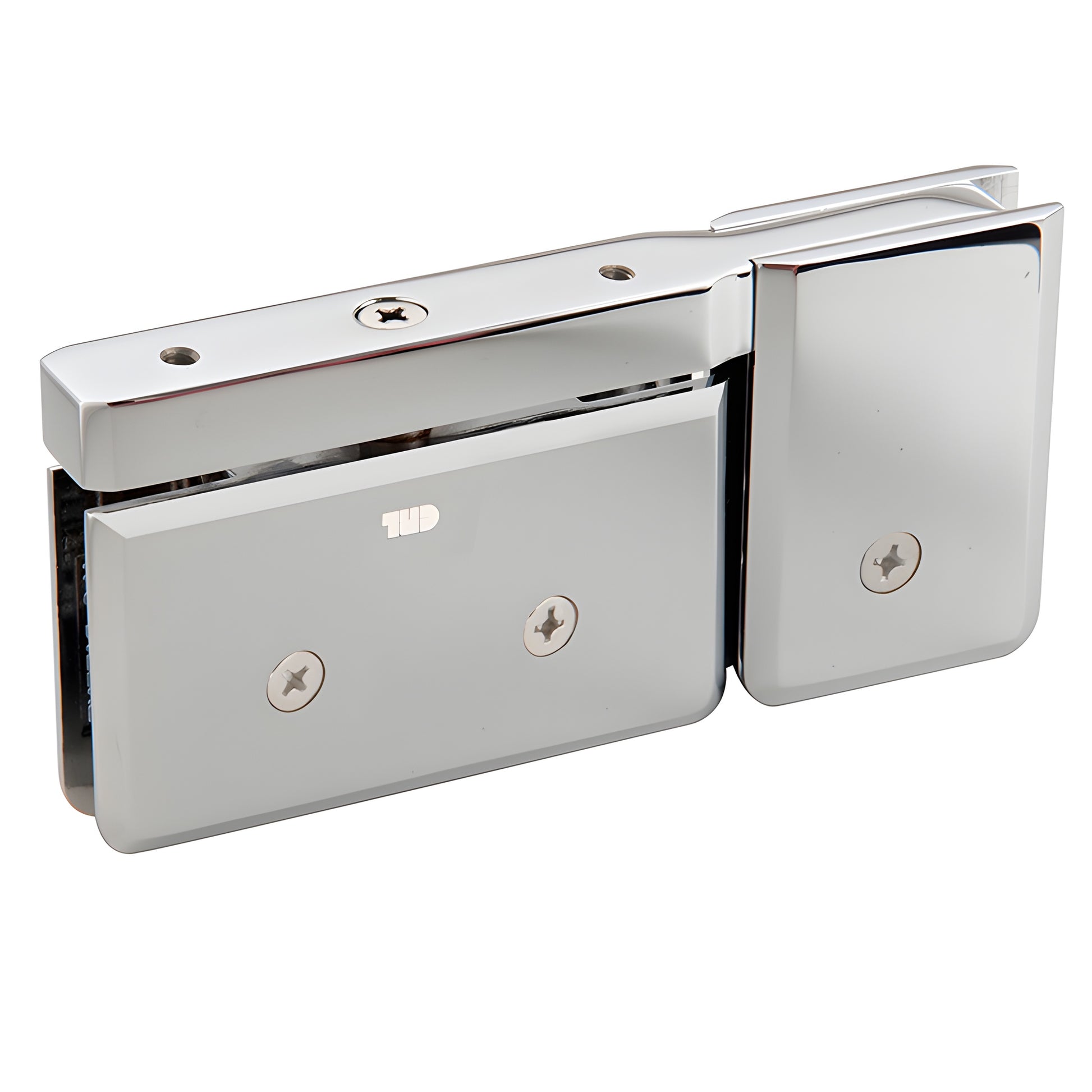

CRL Senior Prima Pivot Hinge Polished Chrome - Glass Door Top/Bottom

• Top or bottom mount with attached U-clamp — alternative to traditional header systems (see "How-To-Do-It" mounting criteria)
• Available in several beautiful finishes; custom finishes available on request
• 3 year warranty
• Designed for monolithic tempered safety glass
• U.S. Patent 5,297,313

Advantages of CRL Senior and Junior Prima hinges: these glass shower door hinges carry the majority of the weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is ideal for doors with fixed transoms; when mounted vertically either hinge style works for movable transom installations. These self-centering pivot hinges feature four springs for maximum retention strength and are optimized for tempered safety glass shower doors.

Model notes: SRPPH01 adapts to the Deluxe Header System. SRPPH06 is compatible only with the EZ-Adjust Header System and includes the required adaptor. The Junior Prima Series adapts to the Junior Header Kit. SKU: SRPPH07CH.

SENIOR PRIMA: With two hinges and 1/2" (12 mm) tempered safety glass, holds up to 145 lbs (66 kg); maximum door width 36" (914 mm).

JUNIOR PRIMA: With two hinges and 1/4" (6 mm) tempered safety glass, holds up to 62 lbs (28 kg); maximum door width 28" (711 mm).

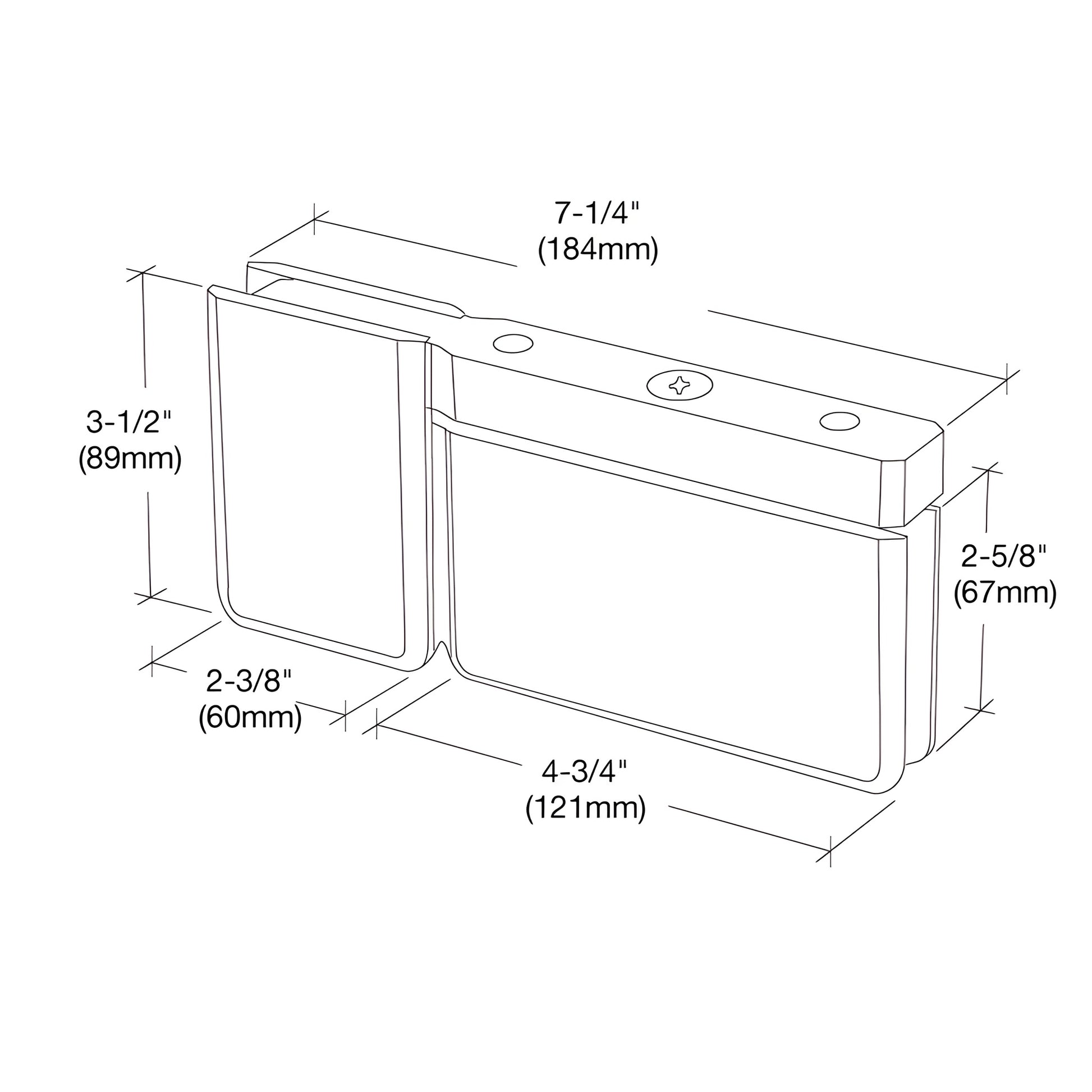

SPECIFICATIONS:

Glass Thickness:
Senior Prima: 1/2" (12 mm) tempered safety glass
Junior Prima: 1/4" (6 mm) tempered safety glass

Special Feature: Top and bottom mount allows more glass exposure and can reduce glass fabrication costs compared with side mount glass-to-glass hinges that require additional cut-outs.

Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Custom finishes available — contact the CRL Technical Sales Shower Door Department for options.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For applications other than intended, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions for CRL hinges may not match other brands.
