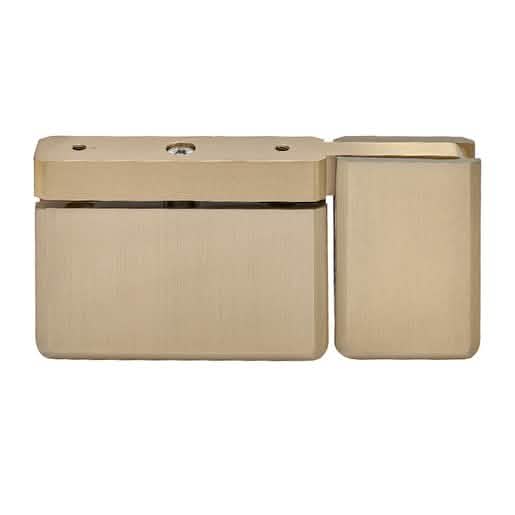

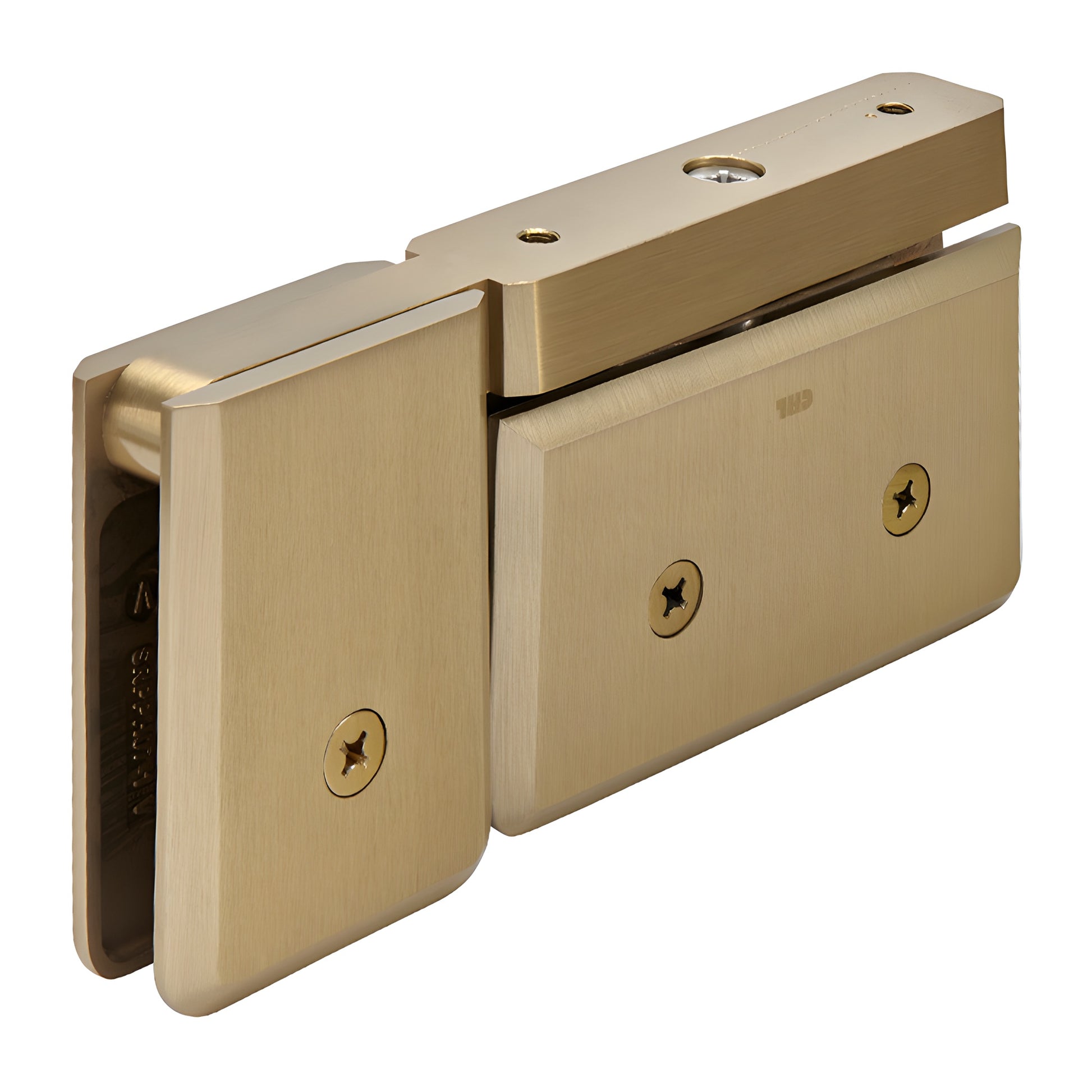

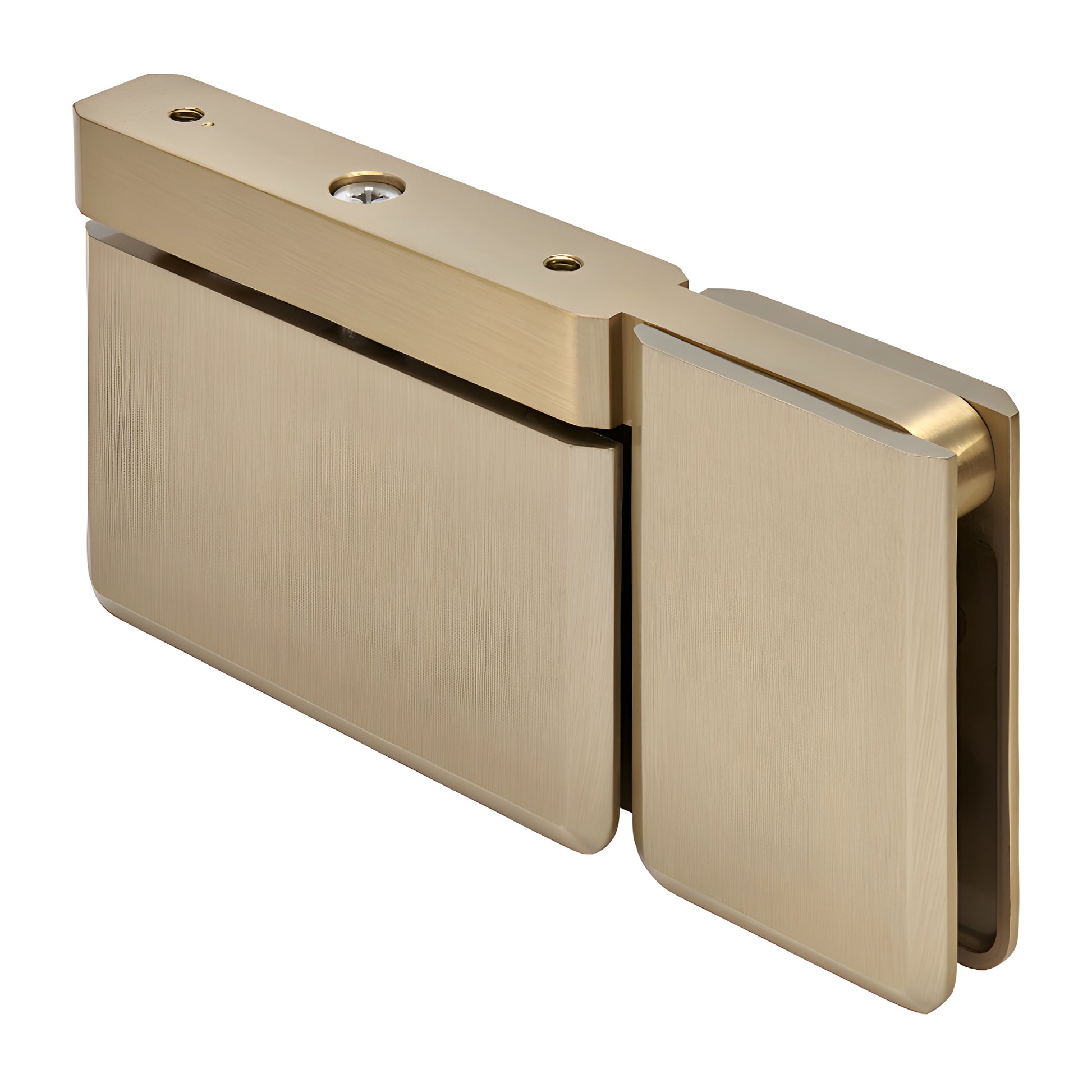

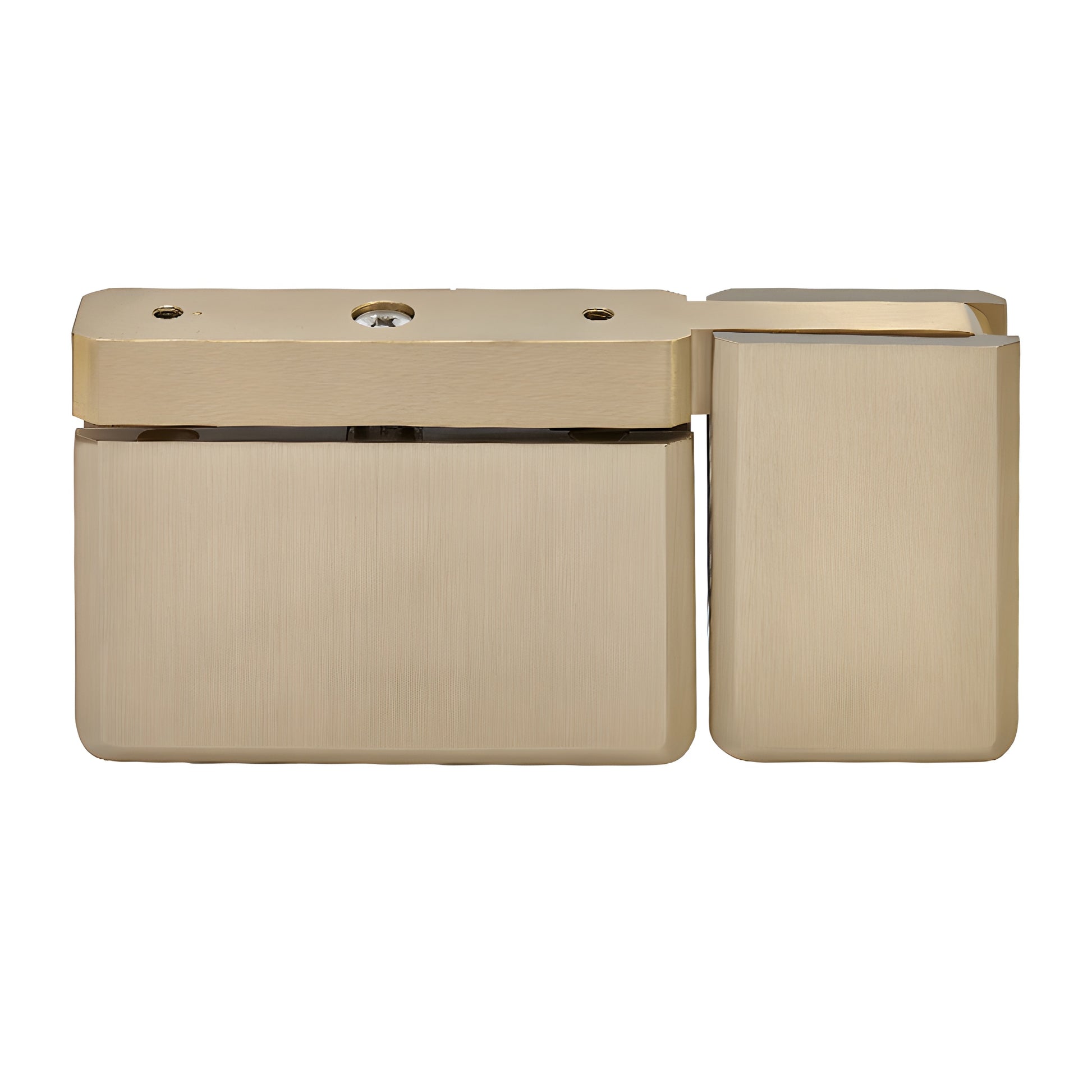

CRL Senior Prima Brushed Bronze Pivot Hinge U-Clamp Top/Bottom Mount

• Top or bottom mount with attached U-clamp — alternative to traditional header systems (see "How-To-Do-It" mounting criteria)
• Available in several durable finishes; custom finishes available on request
• 3‑year warranty
• Uses monolithic tempered safety glass
• U.S. Patent 5,297,313

Advantages of CRL Senior and Junior Prima Hinges: these shower door pivot hinges carry the majority of weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is designed for doors with fixed transoms above them and, when oriented vertically, can be used in movable transom installations. These self-centering pivot hinges include four springs for maximum retention strength and smooth closing performance. Model notes: SRPPH01 adapts to the Deluxe Header System; SRPPH06 is compatible with the EZ-Adjust Header System and includes the required adaptor. The Junior Prima Series adapts to the Junior Header Kit. SKU: SRPPH07BBRZ

SENIOR PRIMA (Heavy-Duty Shower Door Hinge): With two hinges and 1/2" (12 mm) tempered safety glass, holds up to 145 lbs (66 kg); maximum door width 36" (914 mm).

JUNIOR PRIMA (Light-Duty Shower Door Hinge): With two hinges and 1/4" (6 mm) tempered safety glass, holds up to 62 lbs (28 kg); maximum door width 28" (711 mm).

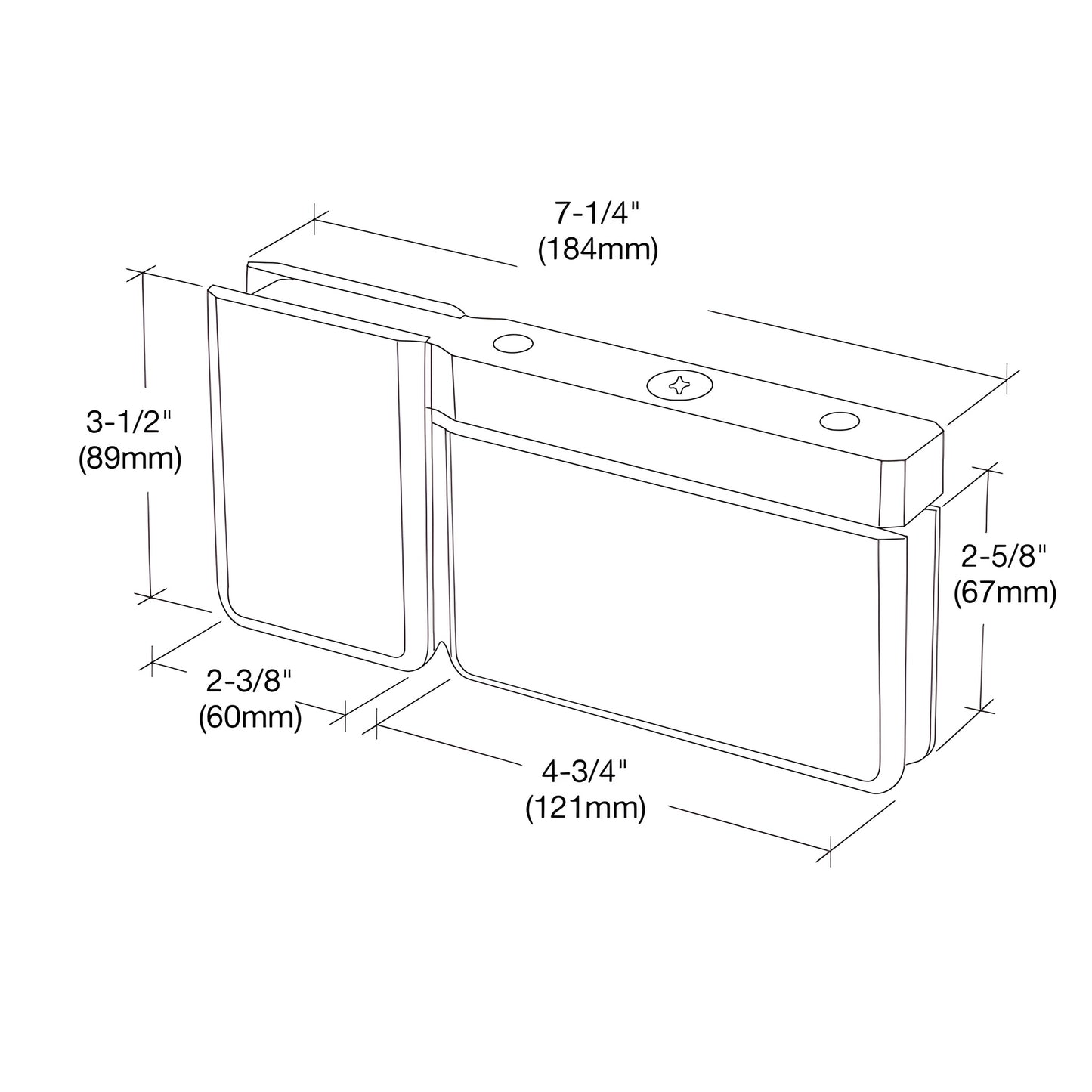

SPECIFICATIONS

• Glass Thickness: Senior Prima — 1/2" (12 mm) tempered safety glass; Junior Prima — 1/4" (6 mm) tempered safety glass
• Special Feature: Top and bottom mount exposes more glass and can reduce glass fabrication compared with side-mount glass-to-glass hinges
• Construction: Solid brass
• Hinge Swing: Full rotation
• Closing Type: Self-centering within 15° of closed position
• Includes: Gaskets, screws, and glass fabrication dimensions; cut-out template required (use only the included template)
• Patent: U.S. Patent No. 5,297,313

Product use note: CRL Shower Door Hinges are designed for residential or hotel shower use. For applications outside intended use, obtain approval from the CRL Shower Door Technical Sales Department. Cut-out dimensions for CRL hinges may differ from other brands—use the provided template.
