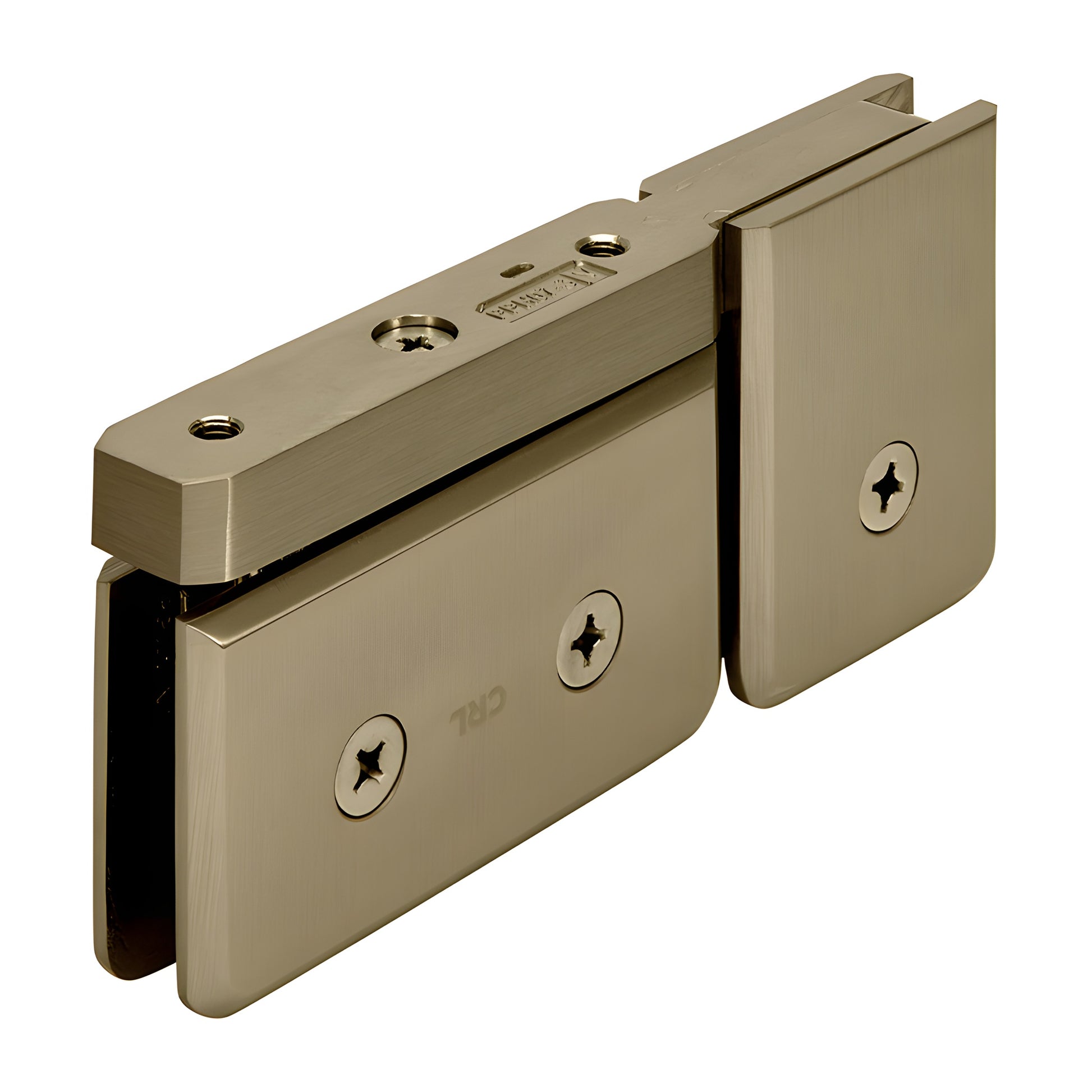

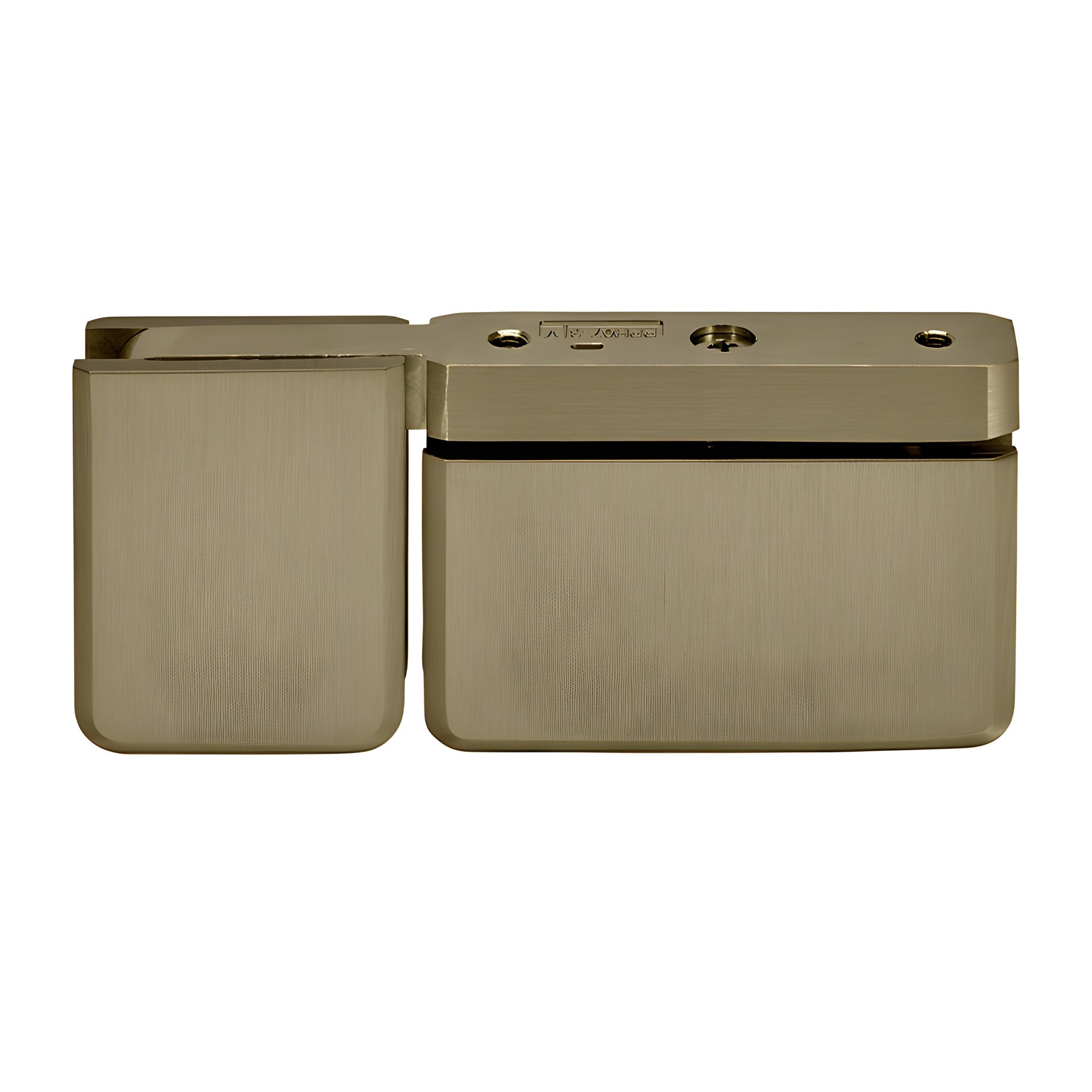

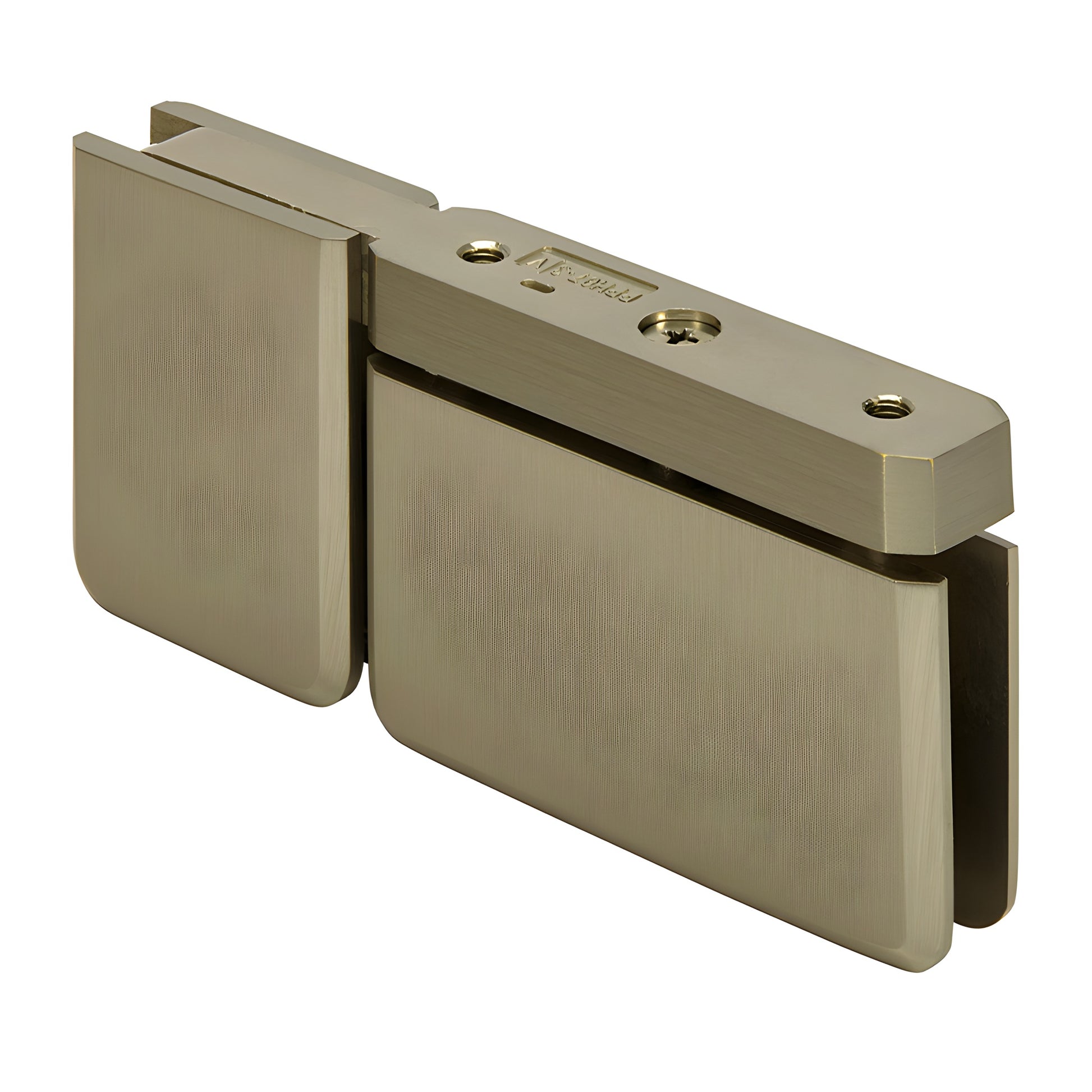

CRL Brushed Bronze Shower Door Pivot Hinge Top/Bottom with U-Clamp

• Top or bottom mount with attached U-clamp — alternative to traditional header systems
• Attached U-clamp matches hinge design and profile
• Patented hinge series (Patent No. 5,297,313) — CE certified
• Can be mounted at bottom of door and adjacent panel for visual symmetry
• Works with 5/16" to 3/8" (8 to 10 mm) tempered safety glass
• Stocked in several popular finishes; custom finishes available
• Designed for monolithic tempered glass shower doors

CRL Prima Series Pivot Hinges (SKU: PPH07BBRZ) are engineered for 5/16"–3/8" (8–10 mm) tempered safety glass and offer versatile mounting options for shower enclosures. These self-centering pivot hinges use four springs for maximum retention strength and carry most of the door weight at the bottom, allowing inset installation for clearance of towel bars and other projections. Ideal long-tail keywords: Prima Series pivot hinge for tempered glass shower door, self-centering shower door pivot hinge, top bottom mount U-clamp hinge.

Optional Cat. No. P1VP1N 5° Pre-Set Pivot Pin Sets may be ordered separately to alter door closing position by 5°. Pins can be installed before or retrofitted after installation. Pre-set 5° hinge models are also available from stock. Not included with hinge purchase.

Performance (two hinges): With 5/16"–3/8" glass (8–10 mm), two hinges support up to 100 lb (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16"–3/8" (8–10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. PPH01 can mount floor-to-ceiling or floor-to-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: PPH135 requires two holes; PPH07 requires cut-out for hinge and hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Series covered by Patent No. 5,297,313

Custom finishes available — contact CRL Technical Sales for options.

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use. For alternate applications, obtain approval from CRL Shower Door Technical Sales. Use only the included template; CRL cut-out
