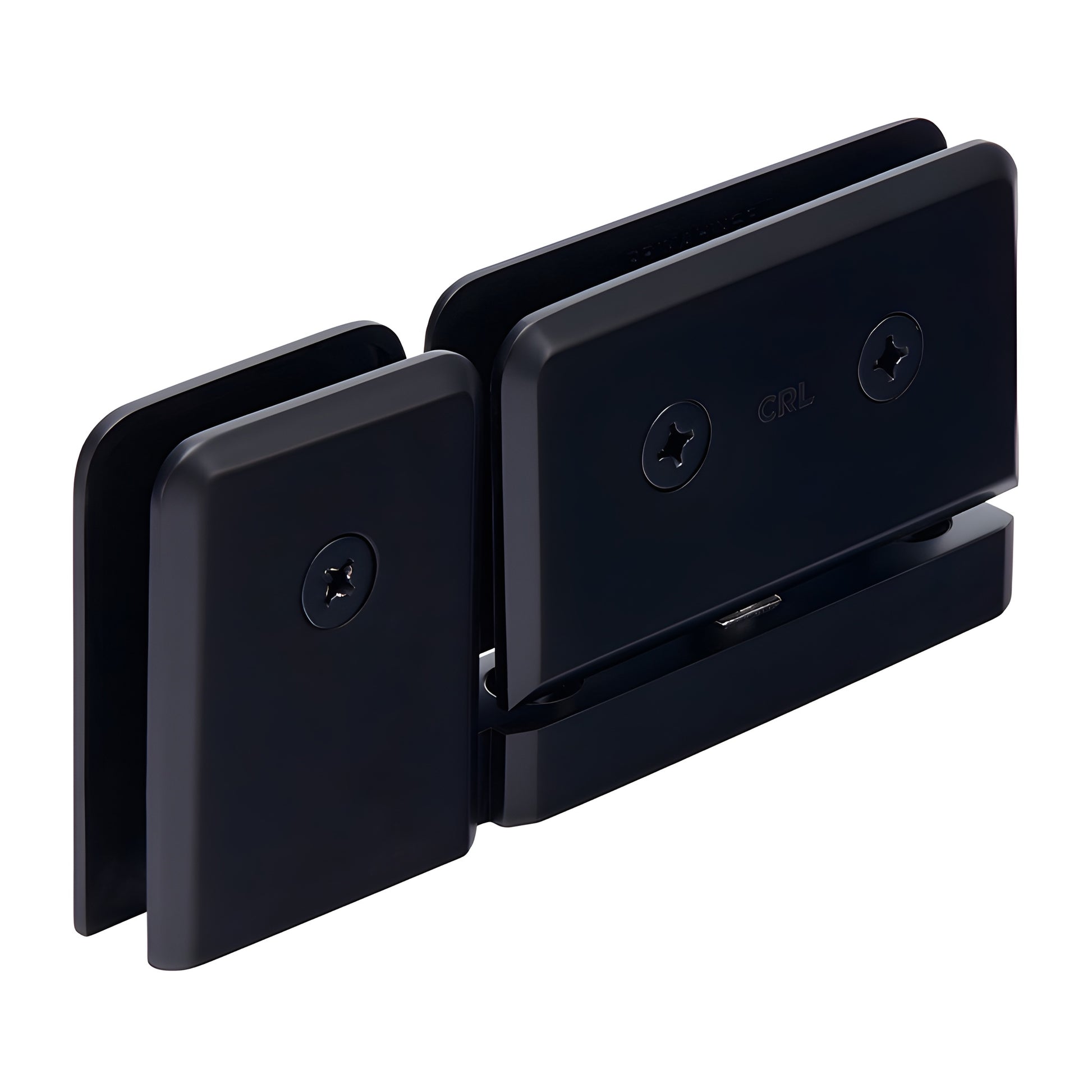

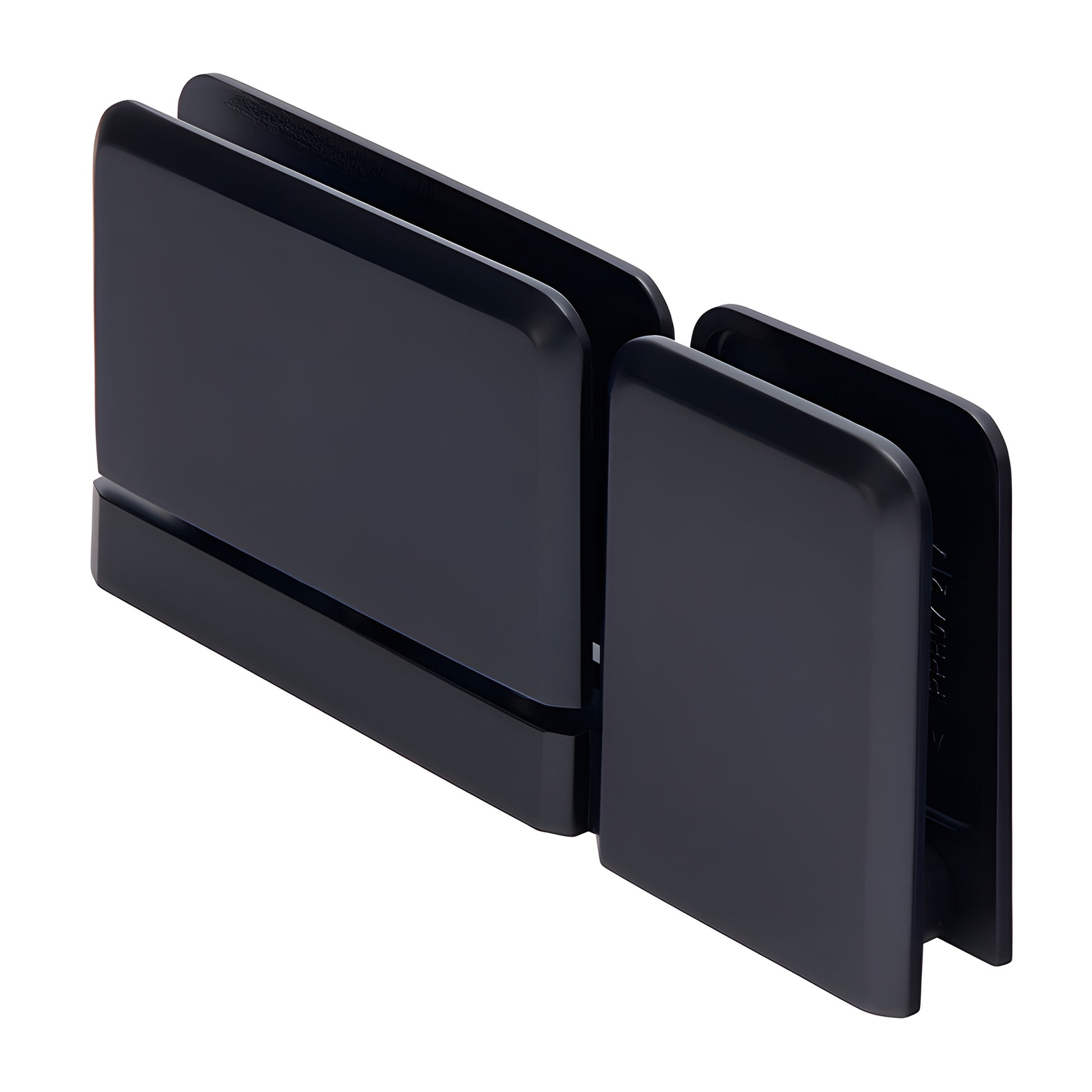

CRL PPH07MBL Prima Glass Pivot Hinge Top/Bottom Mount w/ U-Clamp

• Top or bottom mount with attached U-clamp — alternative to traditional header systems
• Attached U-clamp matches hinge design and profile
• Patented hinge series (Patent No. 5,297,313) — CE certified
• Can be mounted at bottom of door and adjacent panel for visual symmetry
• Fits 5/16" to 3/8" (8 to 10 mm) tempered safety glass
• Stocked in several popular finishes; custom finishes available
• Designed for use with monolithic tempered glass

CRL Prima Series Pivot Hinges (SKU: PPH07MBL) are engineered for 5/16" to 3/8" (8 to 10 mm) tempered safety glass shower doors, offering flexible mounting options and heavy-duty performance. Pivot-style design carries most of the door weight at the bottom and can be inset from the wall to allow clearance for towel bars and other projections — ideal for frameless glass shower door installations and custom glass shower enclosures. These self-centering hinges use four springs for maximum retention strength and provide full rotation swing.

Optional Cat. No. P1VP1N 5° pre-set pivot pin sets are available to adjust the closing position by 5°. Pivot pins can be installed before or retrofitted after installation; sold as a top-and-bottom set. Pre-set 5° hinge models are available from stock. Note: pivot pin sets are not included with hinge purchase.

Performance using two hinges: With 5/16" to 3/8" glass (8 to 10 mm), two hinges will support up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces cut-outs vs. standard side-mount glass-to-glass hinges. PPH01 can be mounted floor-to-ceiling or floor-to-header. PPH06 is compatible only with the EZ-Adjust Header System (includes adapter).
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: PPH135 also requires two holes; PPH07 requires cut-out for hinge and hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
This hinge series is patented (Patent No. 5,297,313).

Custom finishes available on request — contact CRL Technical Sales Department.
