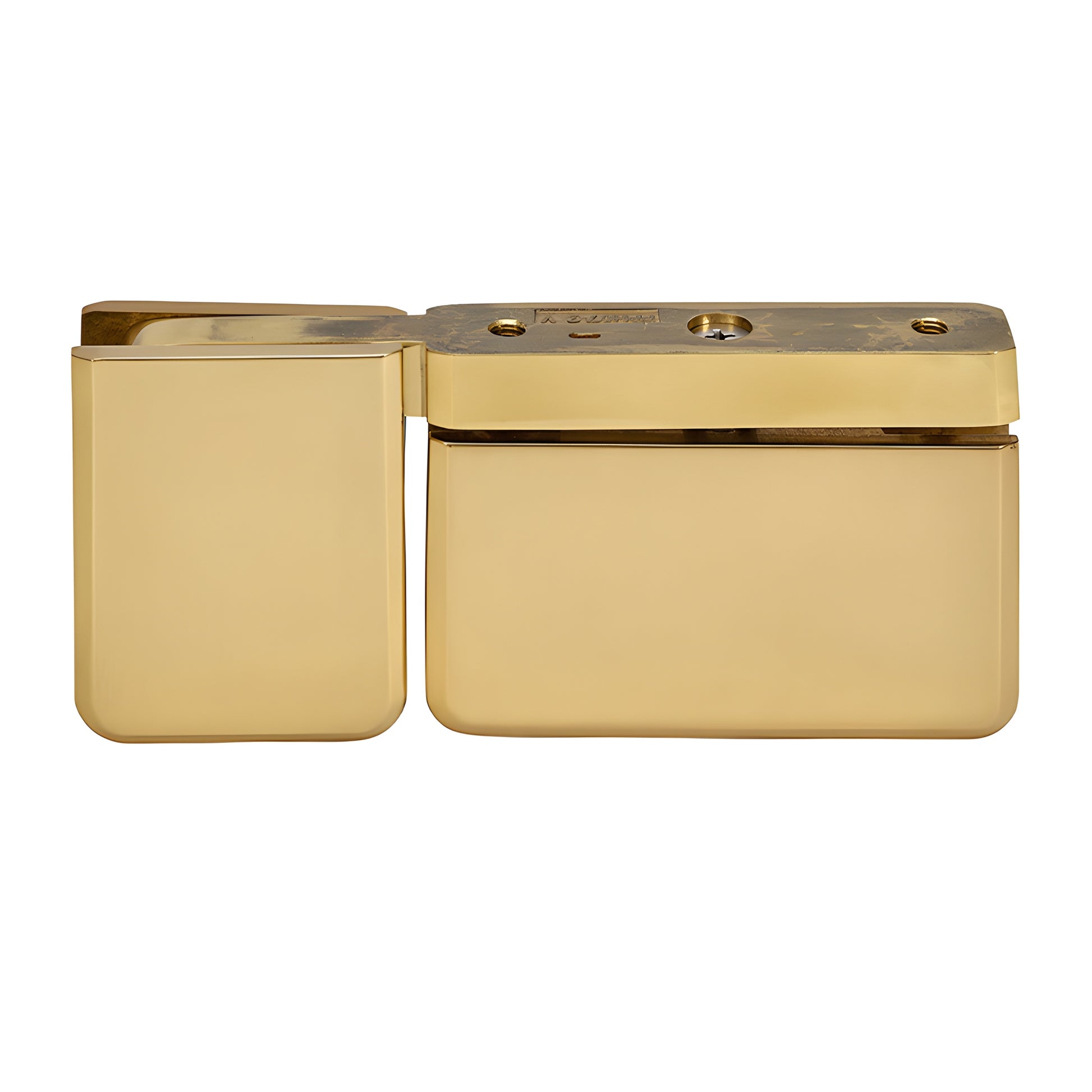

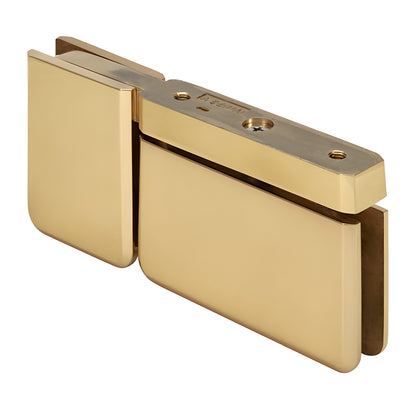

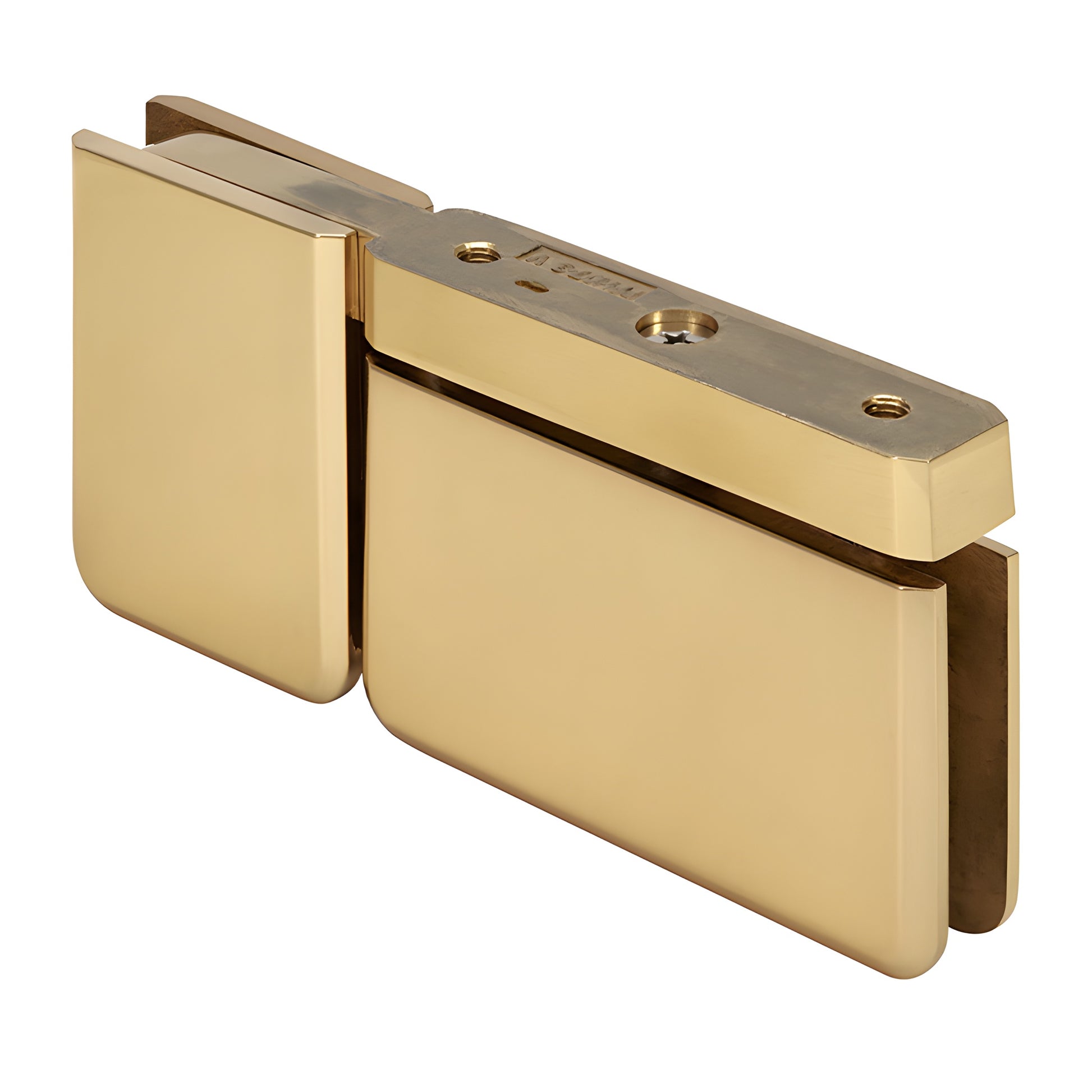

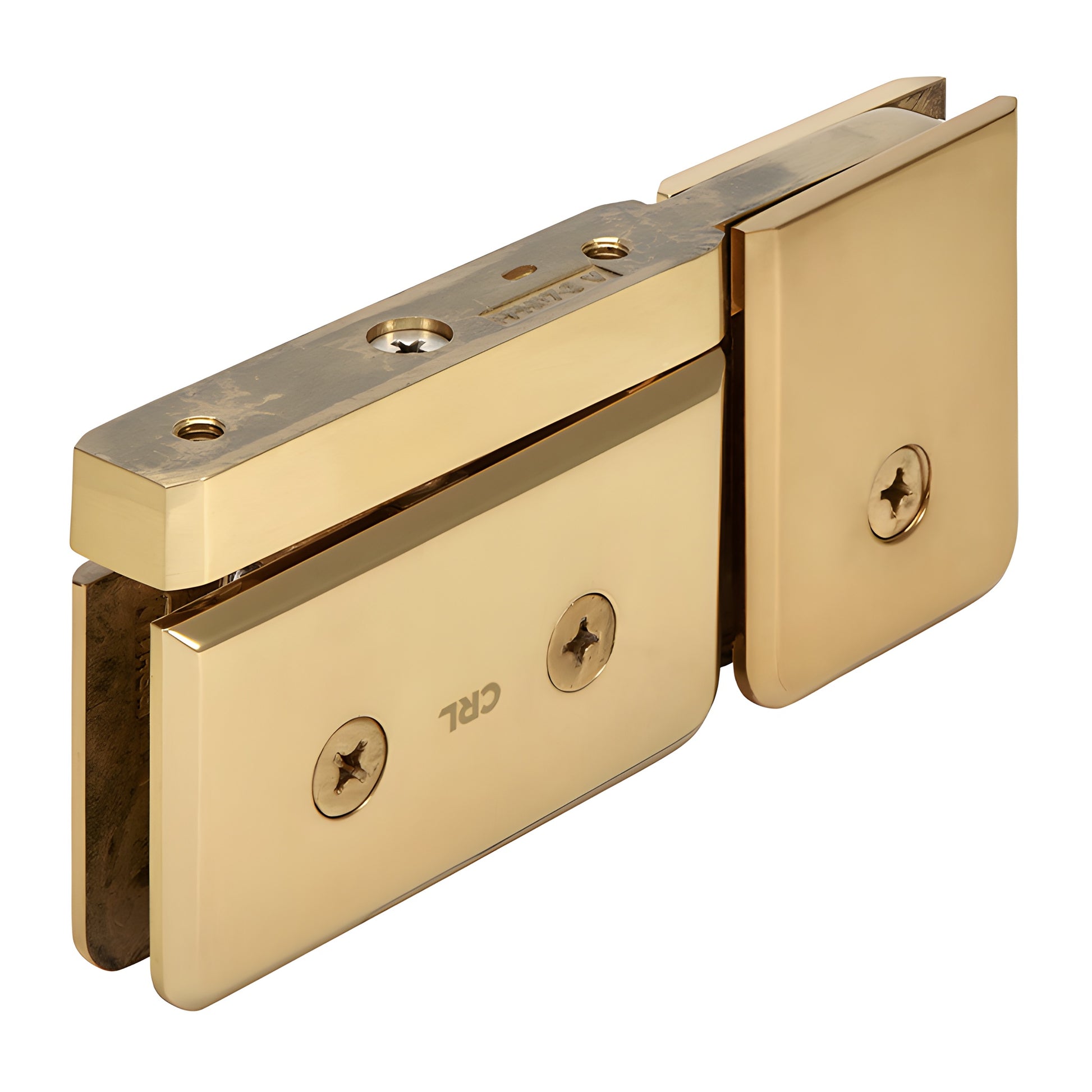

CRL Satin Brass Prima Pivot Hinge w/ U-Clamp, Top/Bottom Glass Door

• Top or bottom mount with attached U-clamp — alternative to traditional header systems
• Attached U-clamp shares design and profile with hinge
• Patented hinge series (Patent No. 5,297,313) — CE certified
• Can be mounted at bottom of door and adjacent panel for a symmetrical shower layout
• Fits 5/16" to 3/8" (8 to 10 mm) tempered safety glass
• Stocked in several popular finishes; custom finishes available
• Designed for monolithic tempered glass applications

CRL Prima Series Pivot Hinges (SKU: PPH07SB) are engineered for tempered glass shower doors using 5/16" to 3/8" (8–10 mm) glass. These solid brass, self-centering pivot hinges use four springs for maximum retention strength and offer flexible installation options: top-and-bottom mount or inverted bottom mount for symmetry. Pivot-style hinges carry most weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections—making them ideal as a tempered glass shower door pivot hinge or brass pivot hinge for glass shower doors. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets may be ordered separately; pre-set 5° hinge models are also available.

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, and Shell Series): Optional 5° pivot pin sets adjust the door closing position by 5°. Pins can be inserted before installation or retrofitted after. Sold as a set (top and bottom). Not included with hinge purchase. Pre-set 5° hinge models are available from stock.

Load Capacity (using two hinges): For 5/16"–3/8" (8–10 mm) glass the pair will support up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
Special Features: Top-and-bottom mount design shows more glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor & ceiling or floor & header.
Construction: Solid Brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: PPH135 model also requires two holes; PPH07 model requires cut-out for hinge and hole for clamp
Includes: Gaskets,
