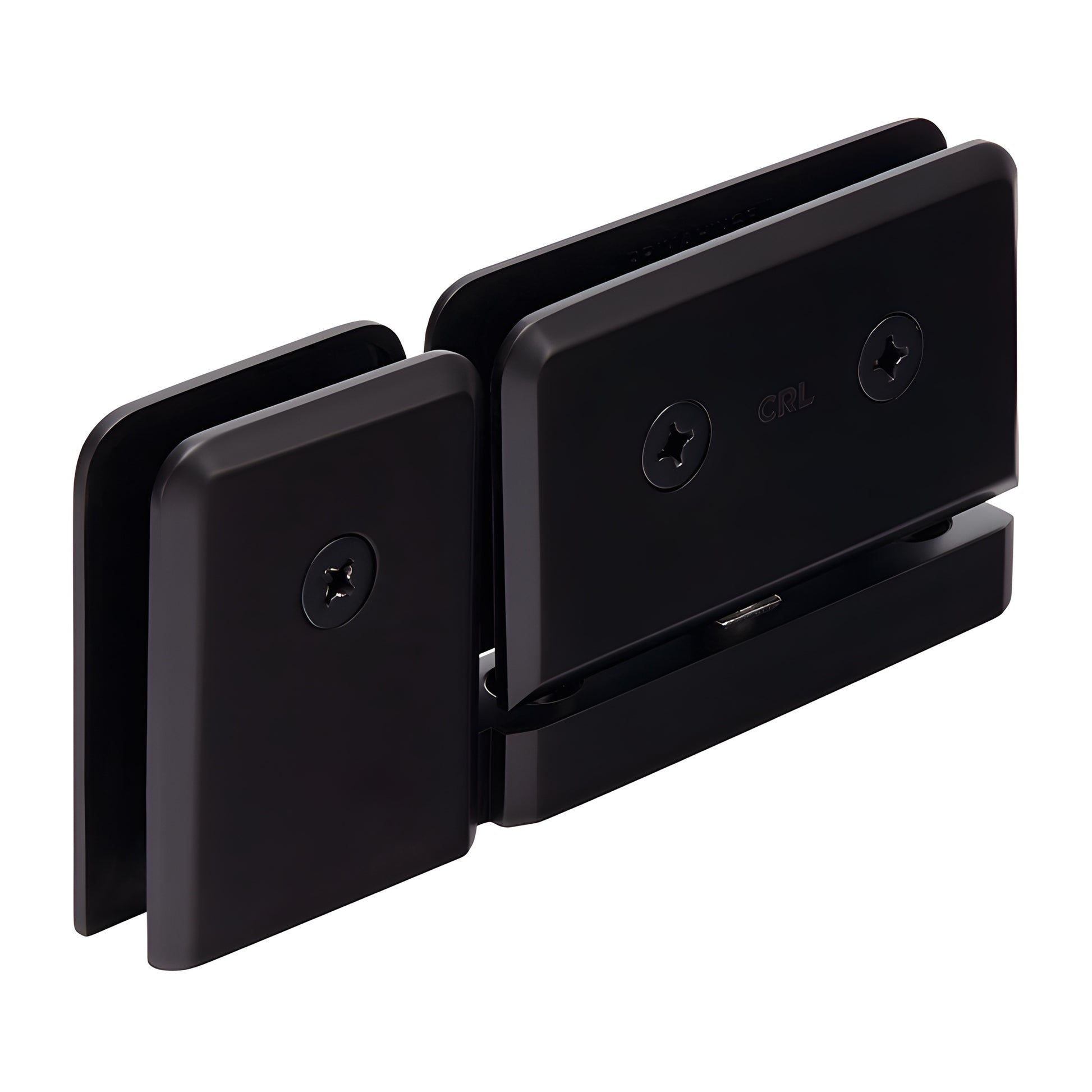

CRL Prima Oil-Rubbed Bronze Top/Bottom Mount Pivot Hinge w/ U-Clamp

• Top or bottom mount with attached U-clamp — alternative to traditional header systems
• Attached U-clamp has same design and profile as hinge
• Patented hinge series (Patent No. 5,297,313) — CE certified
• Can be mounted at bottom of door and adjacent panel for symmetry
• Compatible with 5/16" to 3/8" (8 to 10 mm) tempered safety glass
• Stocked in several popular finishes; custom finishes available on request
• Designed for monolithic tempered glass shower doors

CRL Prima Series Pivot Hinges (SKU: PPH070RB) are engineered for frameless shower doors using 5/16" to 3/8" (8–10 mm) tempered safety glass. These solid-brass pivot hinges offer versatile mounting (top or bottom) and an attached U-clamp that matches the hinge profile for a clean, consistent look—an advantage over traditional header systems. Prima pivots carry most of the door weight at the bottom, can be inset from the wall to allow clearance for towel bars and protrusions, and are self-centering with four internal springs for maximum retention strength.

Optional Cat. No. P1VP1N 5° pre-set pivot pin sets (sold separately) allow the door closing position to be altered by 5°. Pivot pins can be installed before or retrofitted after installation; pre-set 5° hinge models are available from stock.

Using two hinges with 5/16"–3/8" glass, each hinge assembly will support up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

Key Specifications:
Glass Thickness: 5/16" to 3/8" (8–10 mm) tempered safety glass
Special Features: Top-and-bottom mount design exposes more glass and reduces the number of glass cut-outs vs. standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-and-ceiling, or floor-and-header. PPH06 is compatible only with the EZ-Adjust Header System and includes the required adaptor.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Requirements: PPH135 model also requires two holes; PPH07 requires cut-out for hinge and hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
Certification: Patented (Patent No. 5,297,313); CE certification
