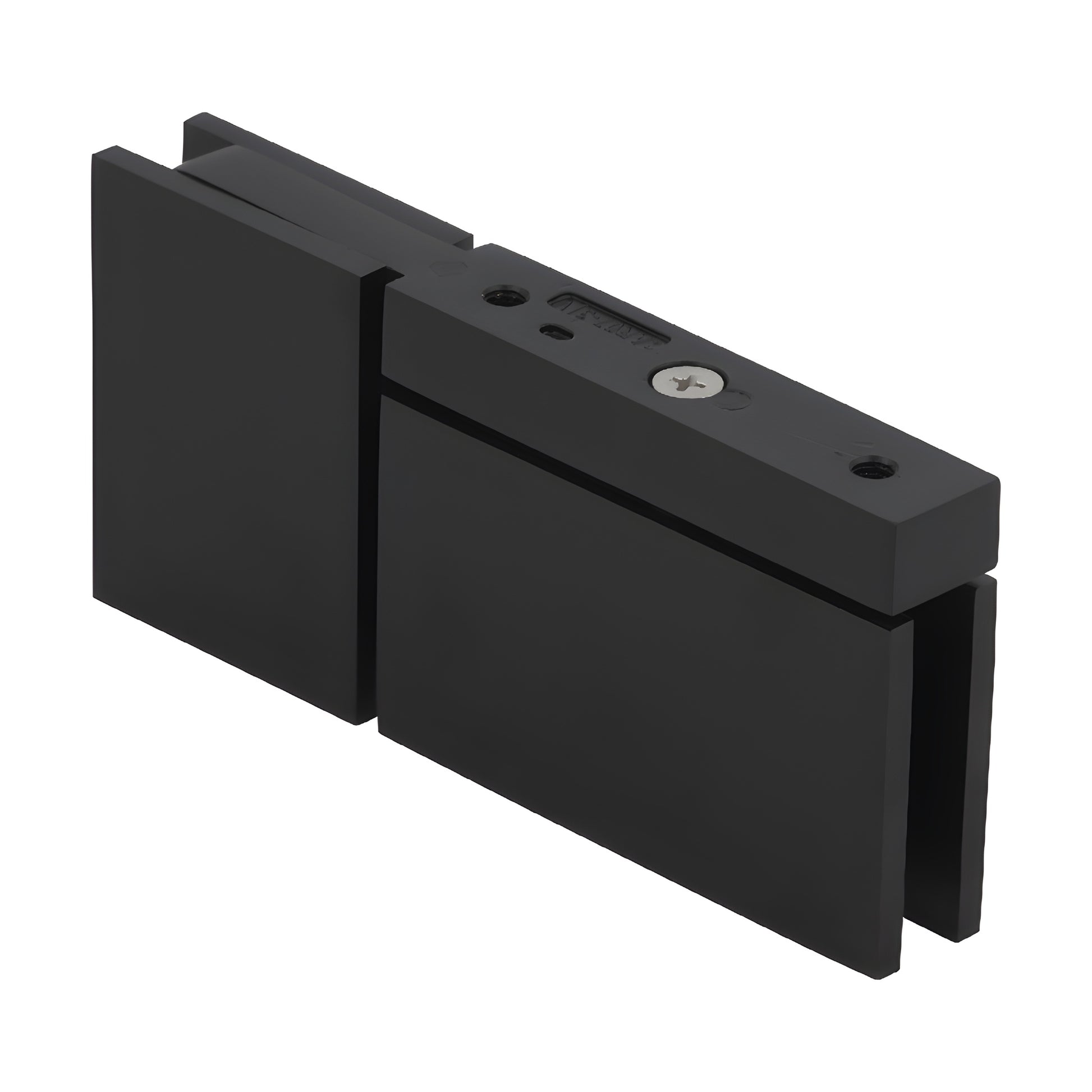

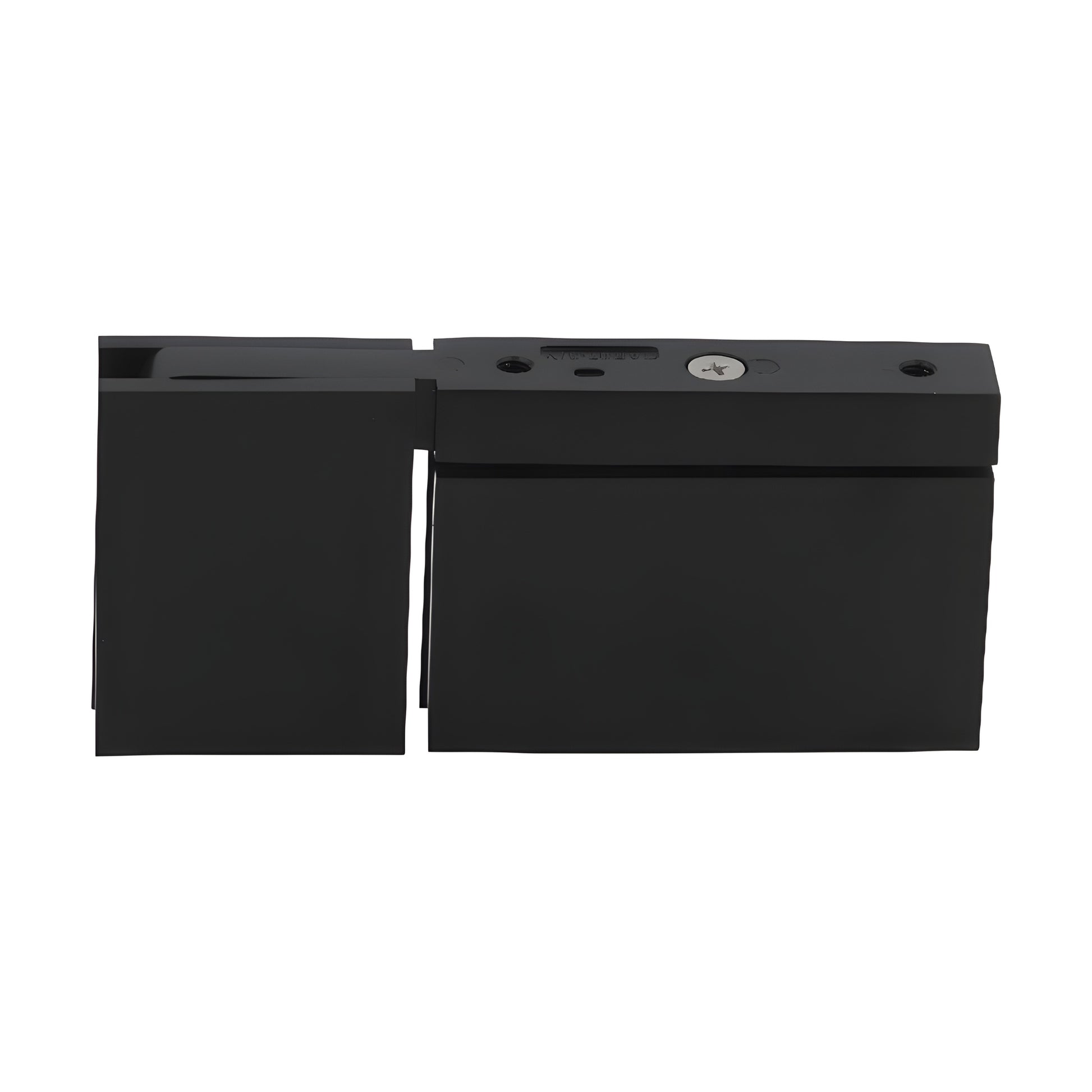

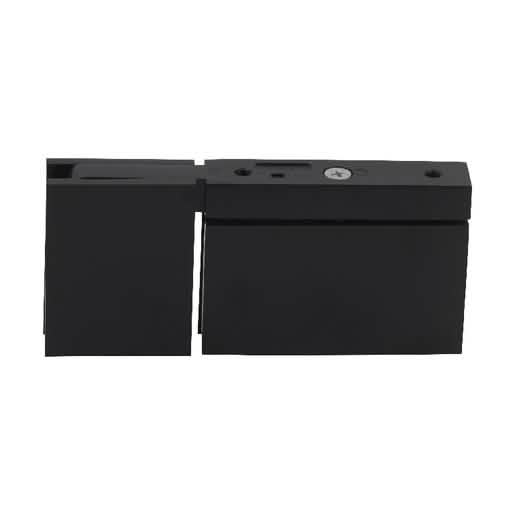

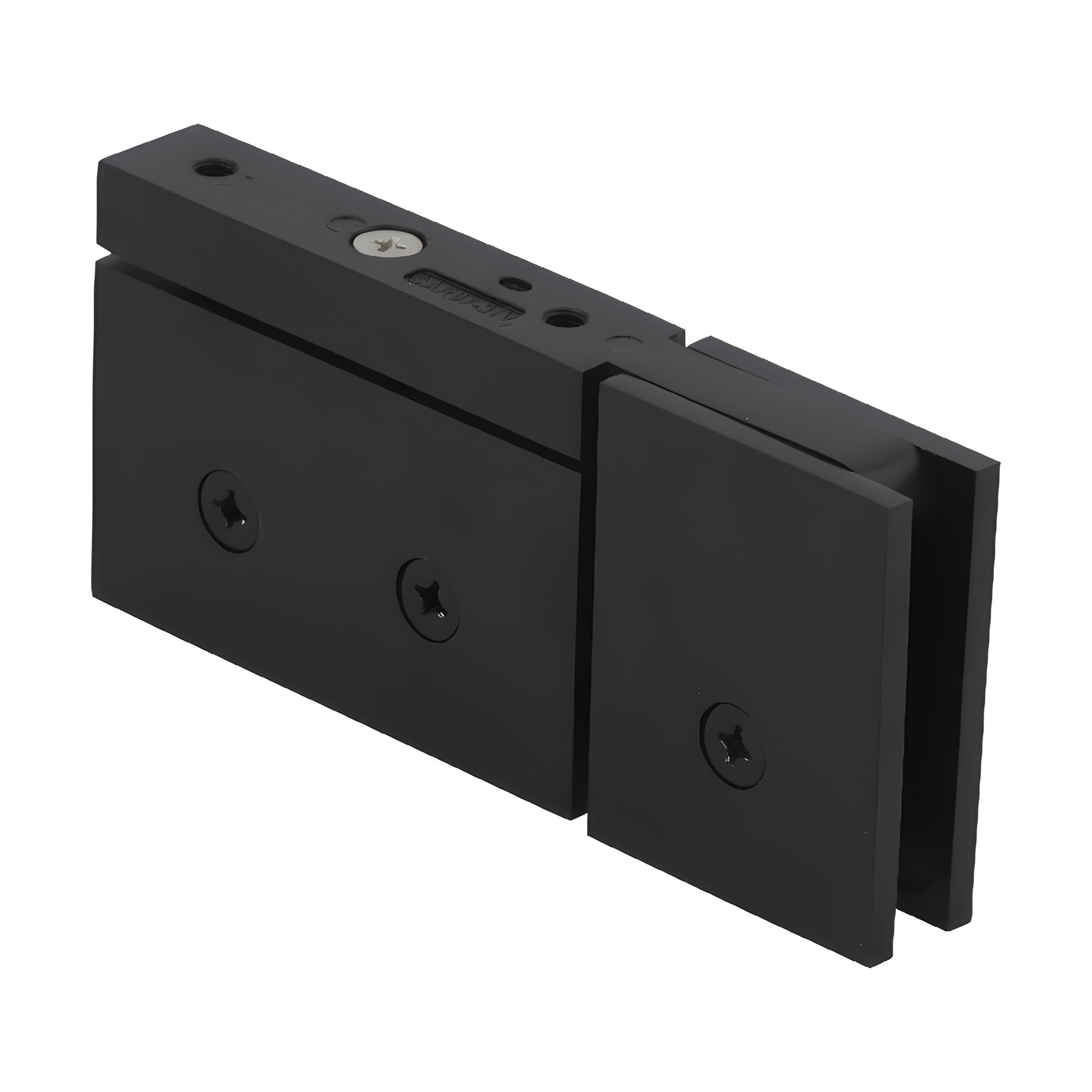

CRL Oil-Rubbed Bronze Cardiff Top/Bottom Mount Door Pivot w/ U-Clamp

• Top or Bottom Mount with Attached U-Clamp
• Alternative to traditional horizontal metal header systems across the enclosure
• 3 Year Warranty
• U.S. Patent 5,297,313
• Can also be mounted at bottom of door and adjacent panel for symmetry
• For 3/8" and 5/16" (10 and 8 mm) thick tempered safety glass
• Stocked in seven popular finishes; custom finishes available
• Design and installation criteria available
• Use with monolithic tempered glass

CRL Cardiff Series Pivot Hinges are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and offer flexible mounting options for shower enclosures. Pivot-style hinges carry most of the weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections. Cardiff hinges are self-centering with four springs for maximum retention strength. Optional 5° pre-set pivot pin sets (sold separately) let you alter the closing position by 5° and can be installed before or after hinge installation. The Cardiff Series is compatible with the Deluxe Header System for enclosures that do not extend to the ceiling.

NOTE: Optional 5° Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series) sold as a set of two (top and bottom). Not included with hinge purchase.

Performance using two hinges: With 5/16" or 3/8" glass (8 or 10 mm), two hinges support up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces the number of cut-outs compared to standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor & ceiling, or floor & header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions may not match other brands.
