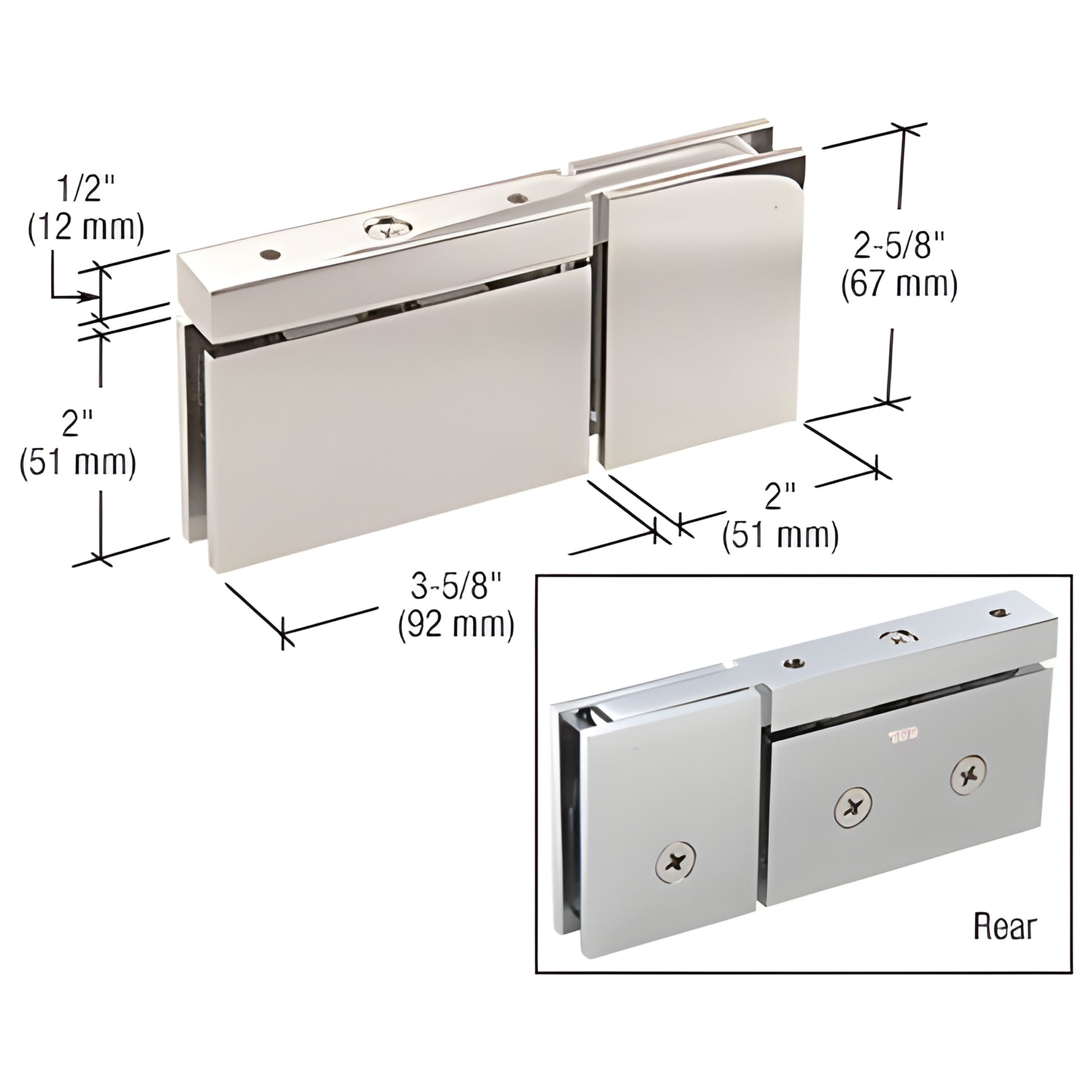

CRL Cardiff Polished Nickel Glass Door Pivot Hinge w/U-Clamp

• Top or bottom mount with attached U-clamp
• Provides alternative to using traditional horizontal metal header systems across enclosure
• 3 Year Warranty
• U.S. Patent 5,297,313
• Can also be mounted at bottom of door and adjacent panel for symmetry
• For 3/8" and 5/16" (10 and 8 mm) thick tempered safety glass
• Stocked in seven popular finishes; custom finishes available
• Design and installation criteria available
• Use monolithic tempered glass

CRL Cardiff Series Pivot Hinges (SKU: CAR07PN) are engineered for tempered safety glass (5/16" / 8 mm to 3/8" / 10 mm) and provide a versatile pivot hinge solution for shower enclosures and glass doors. Ideal as a pivot hinge for tempered glass shower doors, these top-and-bottom mount pivot hinges carry the majority of the load on the bottom and can be inset from the wall to clear towel bars and other projections. Cardiff pivots are self-centering with four springs for strong retention and include an attached U-clamp to simplify installation.

Optional 5º pre-set pivot pin sets (sold separately) allow altering the door closing position by 5º; they can be inserted before or retrofitted after installation. Sold as a set of two (top and bottom). Not included with hinge purchase.

Performance: Using two hinges with 5/16" or 3/8" glass (8 or 10 mm), the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass
Hinge Swings: Full rotation (pivot hinge for glass door applications)
Closing Type: Self-centering within 15º of closed position
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with
