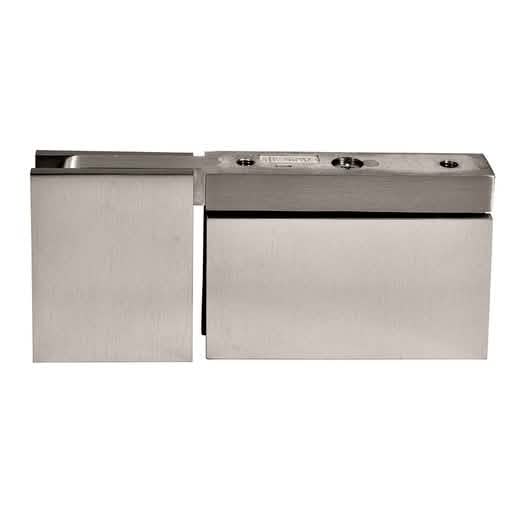

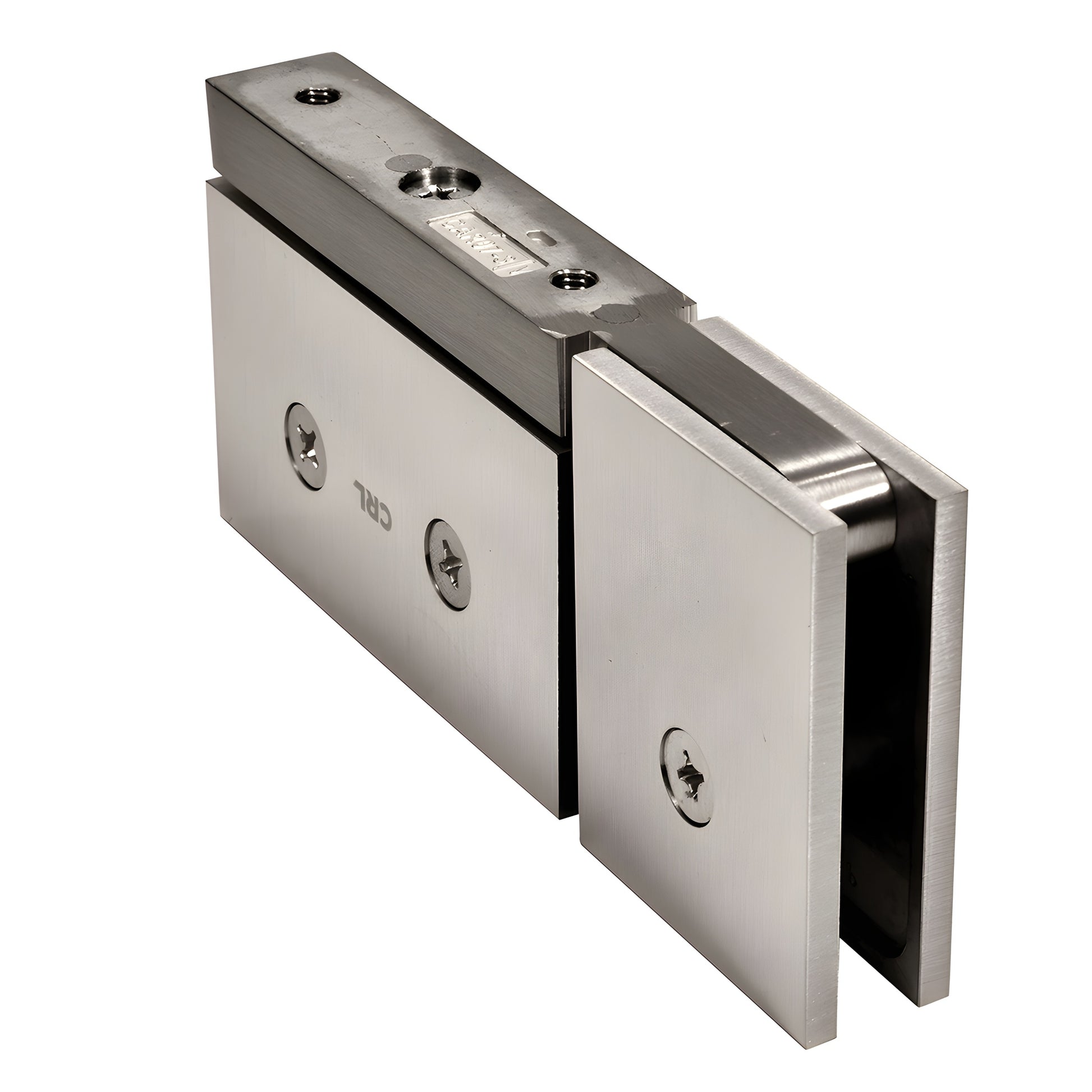

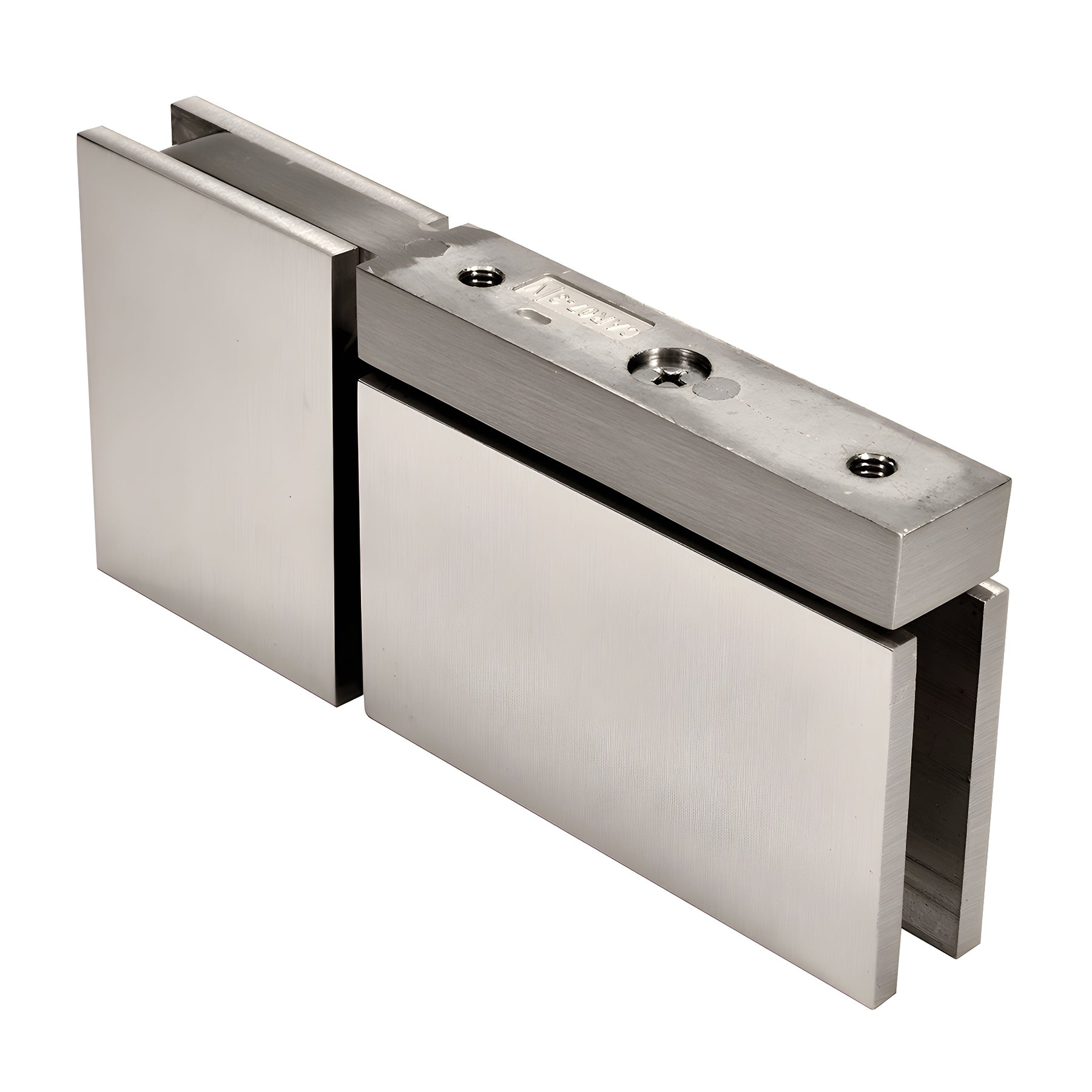

CRL Cardiff Brushed Nickel Top/Bottom Glass Pivot Hinge with U-Clamp

• Top or bottom mount with attached U-clamp
• Alternative to traditional horizontal metal header systems across enclosure
• 3 Year Warranty
• U.S. Patent 5,297,313
• Can also be mounted at bottom of door and adjacent panel for symmetry
• Fits 3/8" and 5/16" (10 and 8 mm) thick tempered safety glass
• Stocked in seven popular finishes; custom finishes available
• Design and installation criteria available
• Use with monolithic tempered glass

CRL Cardiff Series Pivot Hinges (SKU: CAR07BN) are engineered for glass shower doors and offer versatile top-or-bottom mount installation for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. These solid-brass Cardiff pivot hinges are self-centering with four springs for maximum retention strength and are a durable choice for glass shower door hardware. Pivot mounting carries most of the door weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections—making them an excellent pivot hinge option for frameless and semi-frameless glass shower enclosures. Optional 5º pre-set pivot pin sets (sold separately) let you alter the door closing position by 5º; they can be installed before or retrofitted after hinge installation. The Cardiff Series also adapts to the Deluxe Header System for enclosures that do not extend to the ceiling.

NOTE: Optional 5º Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series). Sold as a set of two (top and bottom). Not included with hinge purchase.

Performance with Two Hinges: Using two hinges with 5/16" or 3/8" glass (8 or 10 mm), the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design allows more glass exposure and reduces the number of cut-outs required versus standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor and ceiling, or floor and header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15º of closed position
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313
