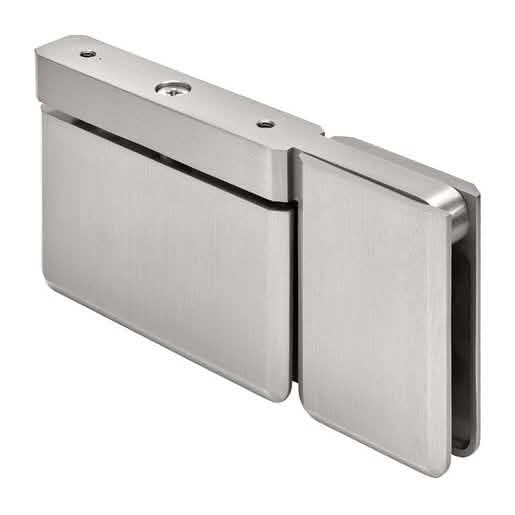

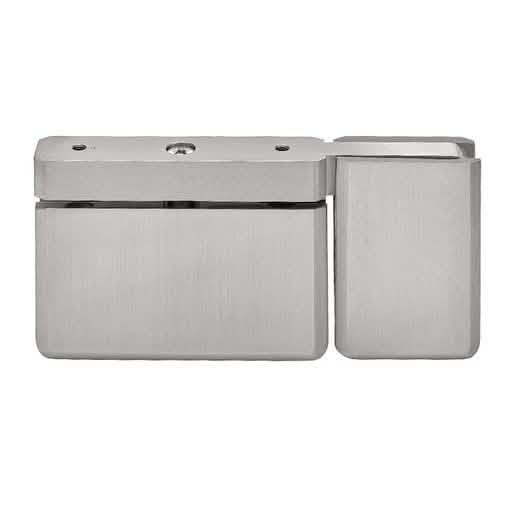

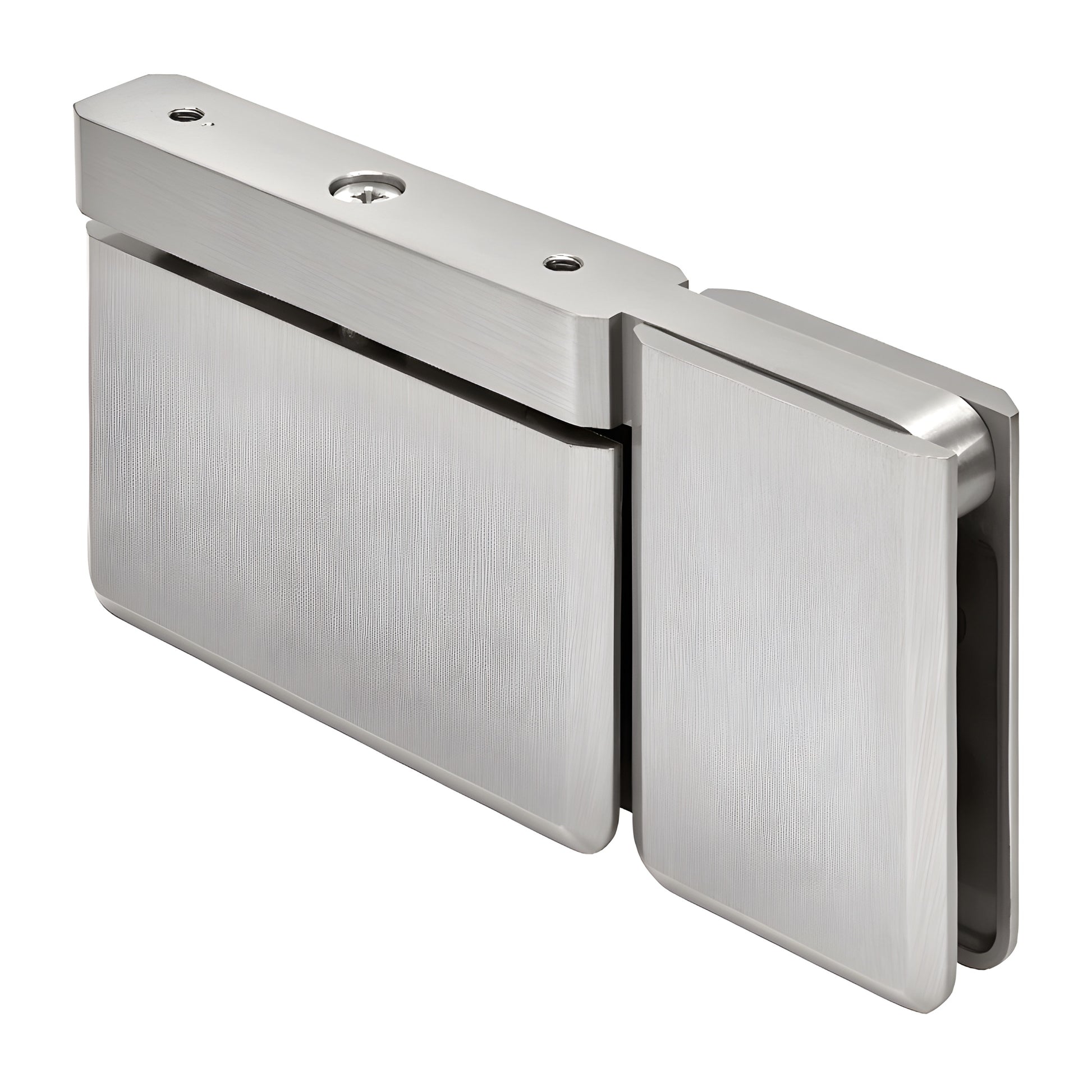

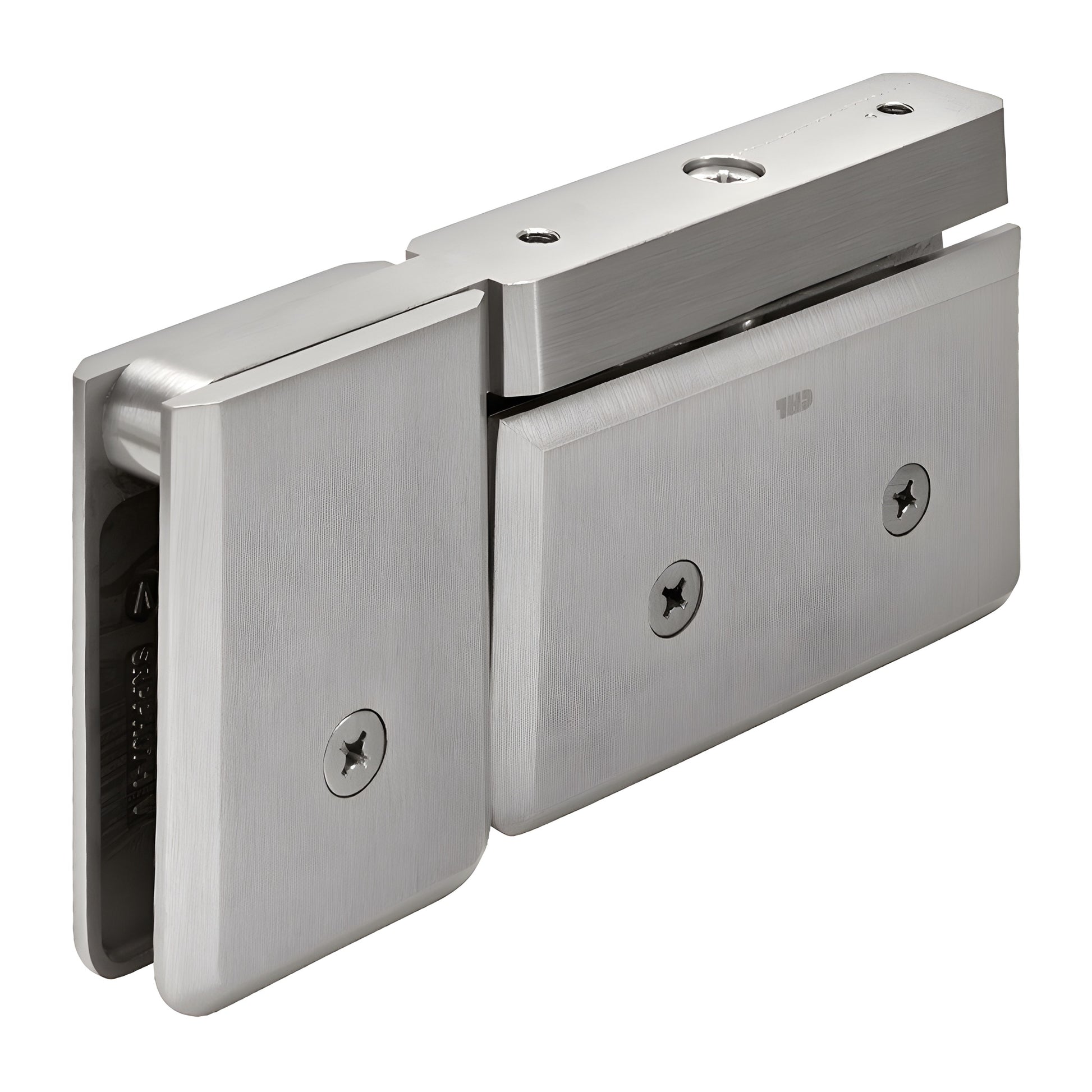

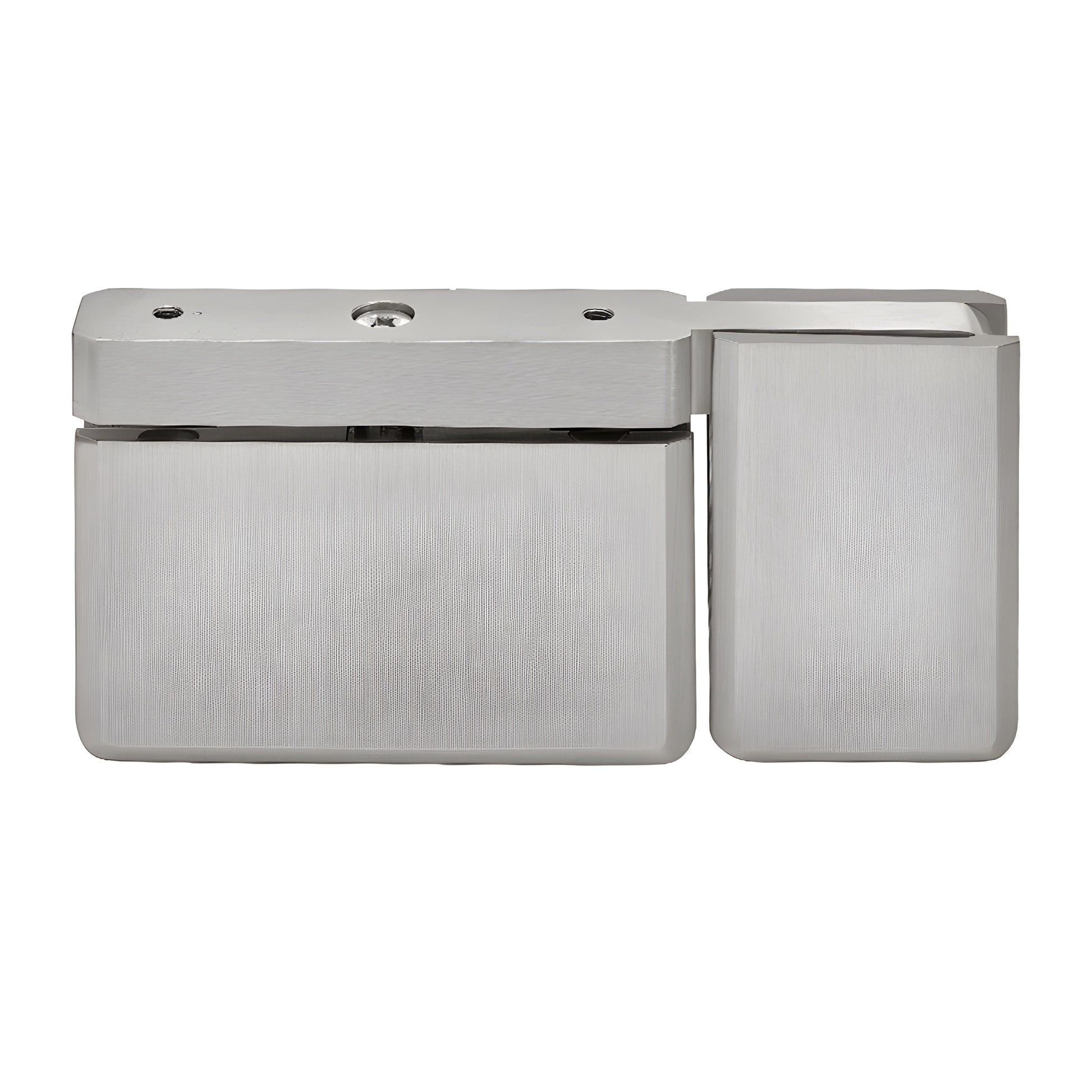

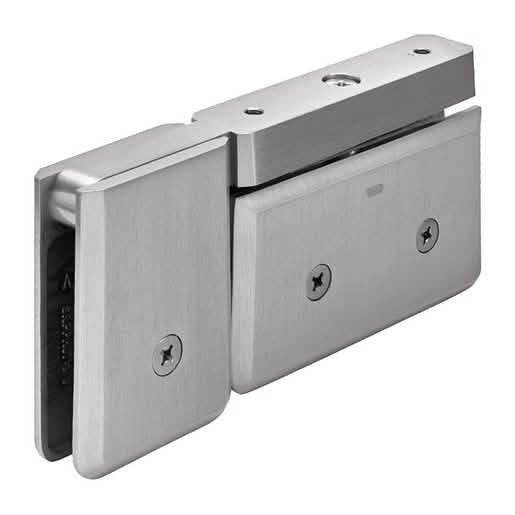

CRL Senior Prima Brushed Nickel Pivot Hinge Top/Bottom Mt U-Clamp

• Top or Bottom Mount with attached U-clamp — alternative to traditional header systems (see "How-To-Do-It" mounting criteria)
• Available in several durable finishes; custom finishes available on request
• 3 Year Warranty
• Uses monolithic tempered safety glass
• U.S. Patent 5,297,313

Advantages of CRL Senior and Junior Prima Hinges: these glass shower door hinges (SKU: SRPPH07BN) carry most of the weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is designed for doors with fixed transoms above; when oriented vertically, either style works for movable transom installations. These pivot hinges are self-centering with four springs for maximum retention strength. Models: SRPPH01 adapts to the Deluxe Header System; SRPPH06 is compatible only with the EZ-Adjust Header System and includes the required adaptor. The Junior Prima Series adapts to the Junior Header Kit.

SENIOR PRIMA: With two hinges and 1/2" (12 mm) tempered safety glass, holds up to 145 lbs (66 kg). Maximum door width: 36" (914 mm).

JUNIOR PRIMA: With two hinges and 1/4" (6 mm) tempered safety glass, holds up to 62 lbs (28 kg). Maximum door width: 28" (711 mm).

SPECIFICATIONS

Glass Thickness:
Senior Prima: 1/2" (12 mm) tempered safety glass
Junior Prima: 1/4" (6 mm) tempered safety glass

Special Feature: Top and bottom mount increases visible glass area and can reduce glass fabrication costs compared with side-mount glass-to-glass hinges that require additional cut-outs.

Construction: Solid brass

Hinge Swings: Full rotation

Closing Type: Self-centering within 15° of the closed position

Cut-Out Required

Includes: Gaskets, screws, and glass fabrication dimensions

Note: Senior and Junior Prima hinges are patented (Patent No. 5,297,313).

Custom finishes available — contact the CRL Technical Sales Shower Door Department for custom glass shower door hinge finishes and matching hardware options.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions may not match other brands.
