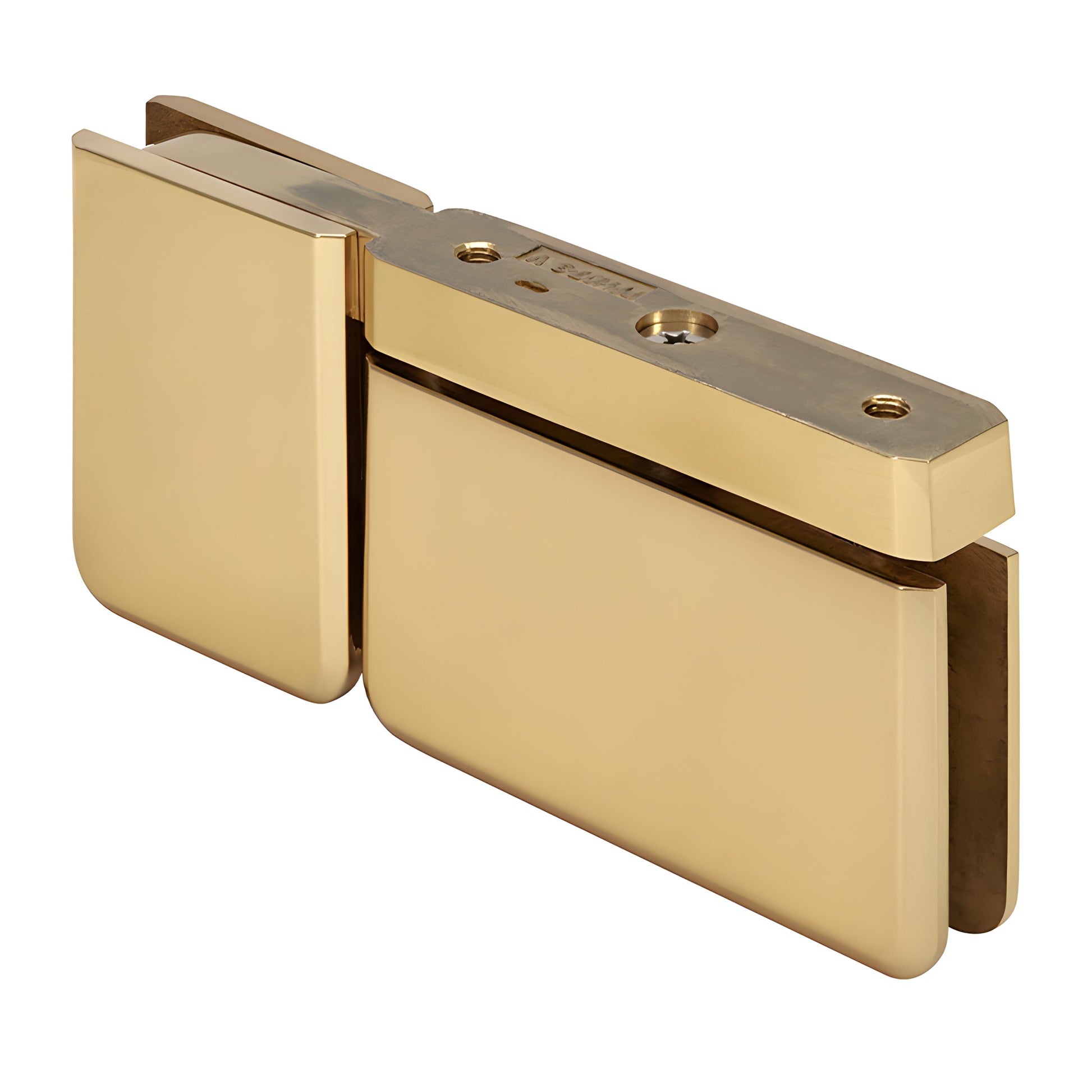

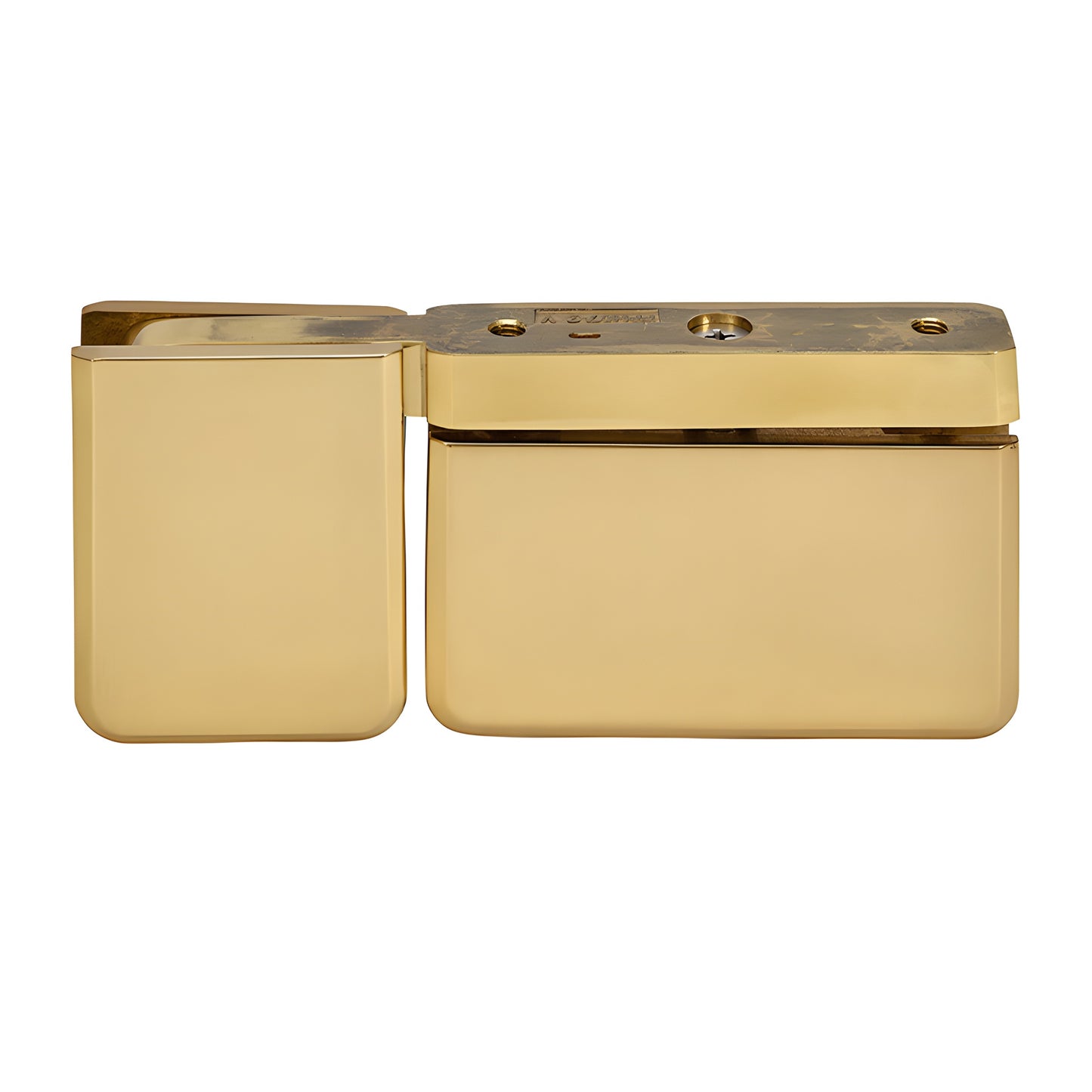

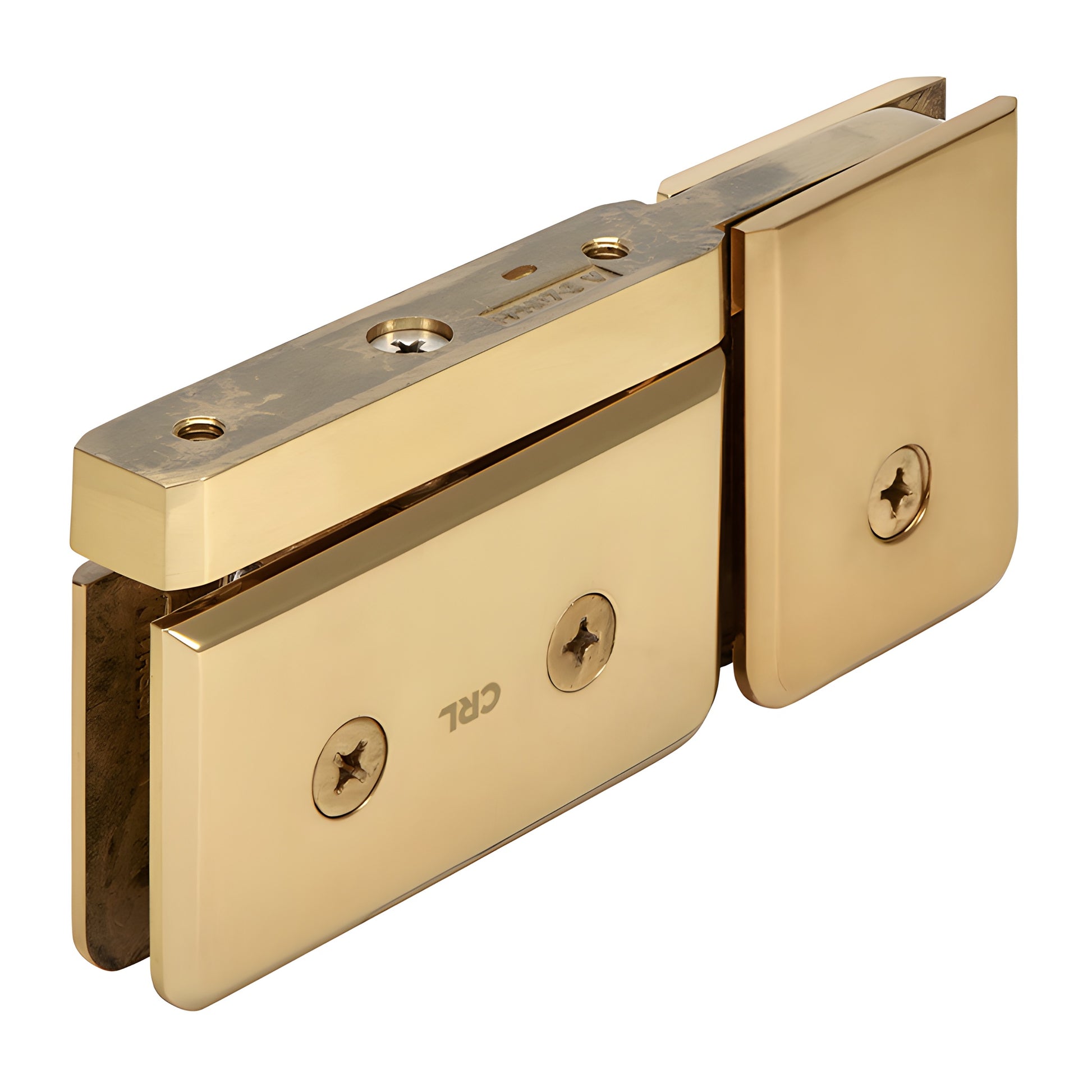

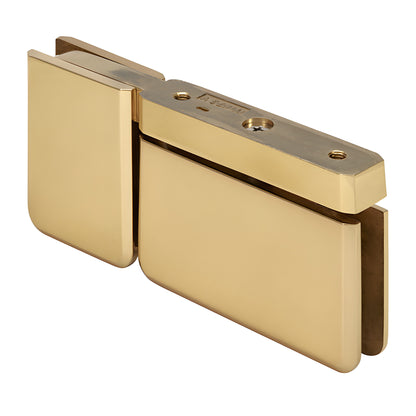

CRL Satin Brass Prima Pivot Hinge w/ U-Clamp for Glass Door

• Top or bottom mount with attached U-clamp — alternative to traditional header systems (see "How-To-Do-It" mounting criteria)
• Glass-to-fixed transom pivot hinge for doors with fixed transoms; can be used vertically for movable transom installations
• Carries majority of door weight on the bottom to reduce header stress and allow inset mounting for towel bar and accessory clearance
• Self-centering design with four springs for maximum retention strength
• Available in several durable finishes
• Use with monolithic tempered glass
• 3-year warranty
• U.S. Patent 5,297,313

Advantages of CRL Senior and Junior Prima Hinges: These SRPPH07SB-series glass shower door hinges are engineered to support residential and hotel shower doors while minimizing header loading. The bottom-weighted design and inset mounting option provide clearance for towel bars and wall projections. The Senior and Junior Prima pivot hinges are adaptable to multiple header systems: SRPPH01 adapts to the Deluxe Header System; SRPPH06 is compatible with the EZ-Adjust Header System and includes the necessary adaptor; the Junior Prima Series adapts to the Junior Header Kit.

Compatibility & installation notes: Use only the template provided with this hinge — cut-out dimensions may not match other brands. For movable transom applications, install the hinge vertically. For detailed mounting criteria, consult the "How-To-Do-It" mounting guide.

Product Warning: CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from the CRL Shower Door Technical Sales Department.

Brass Finish Advisory:

SKU: SRPPH07SB

Choose CRL SRPPH07SB glass-to-fixed transom pivot hinges for a durable, self-centering, bottom-weighted solution that preserves header integrity and allows accessory clearance. Order now or contact CRL for technical assistance.
