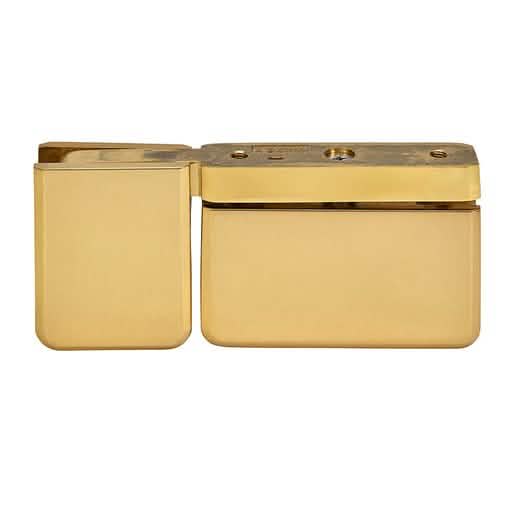

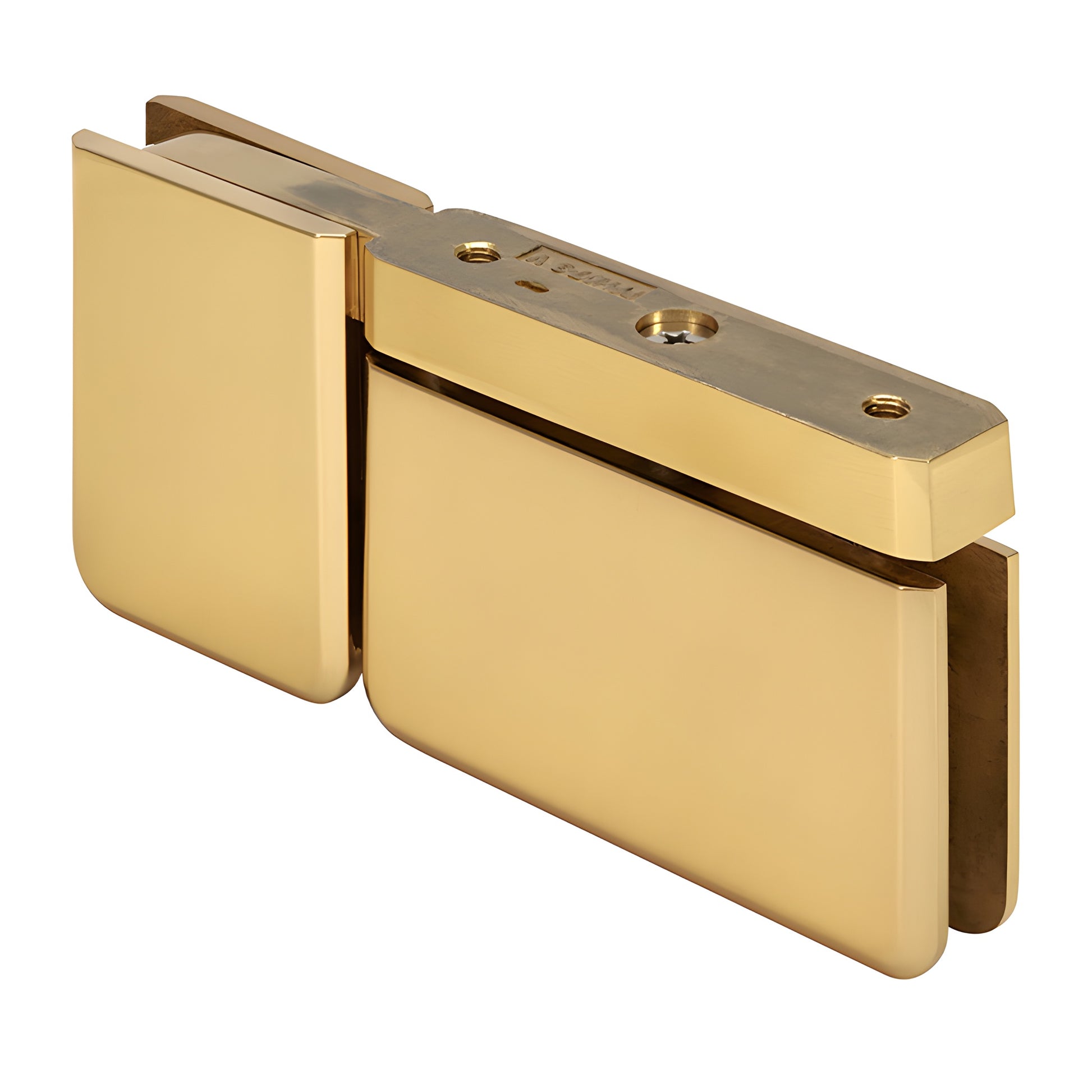

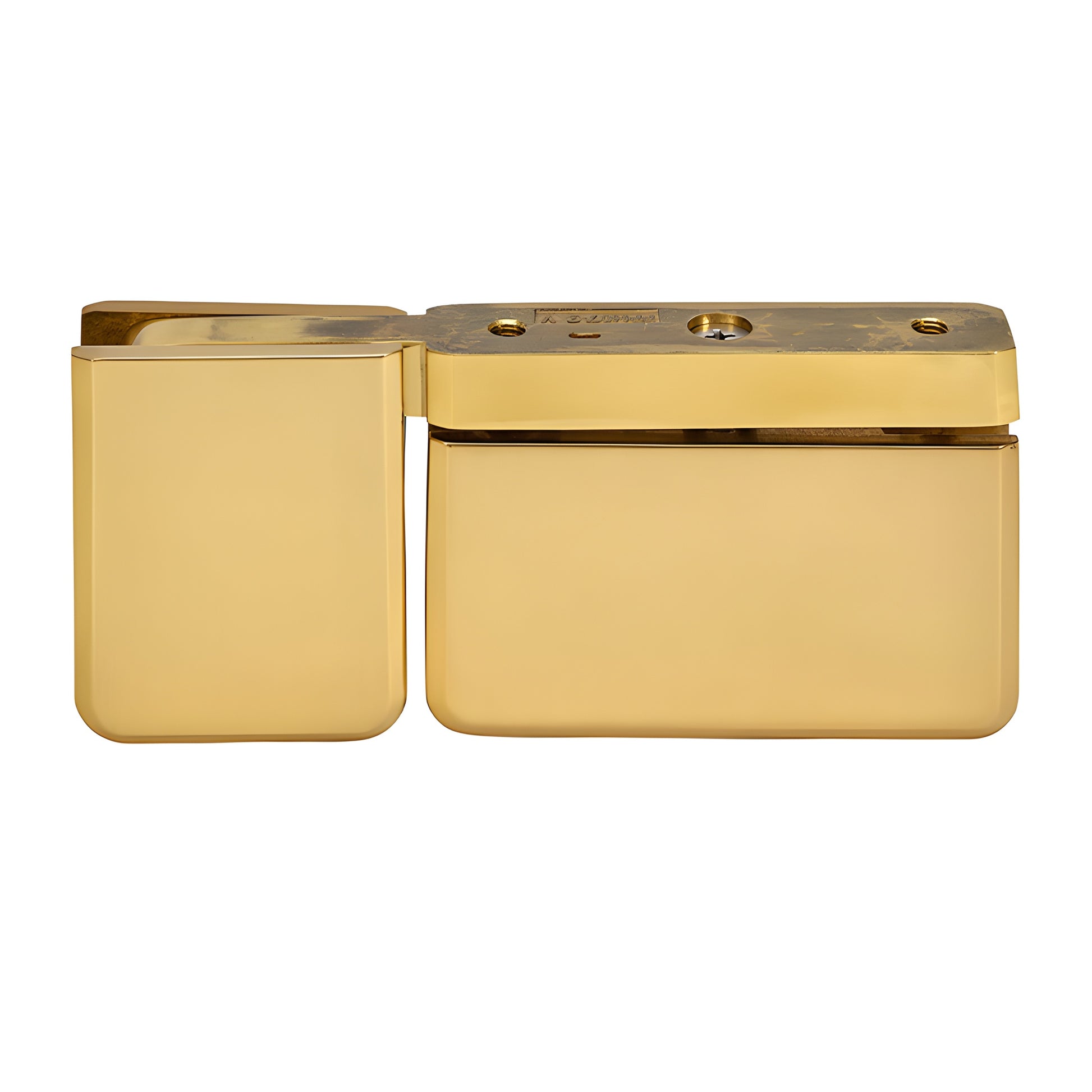

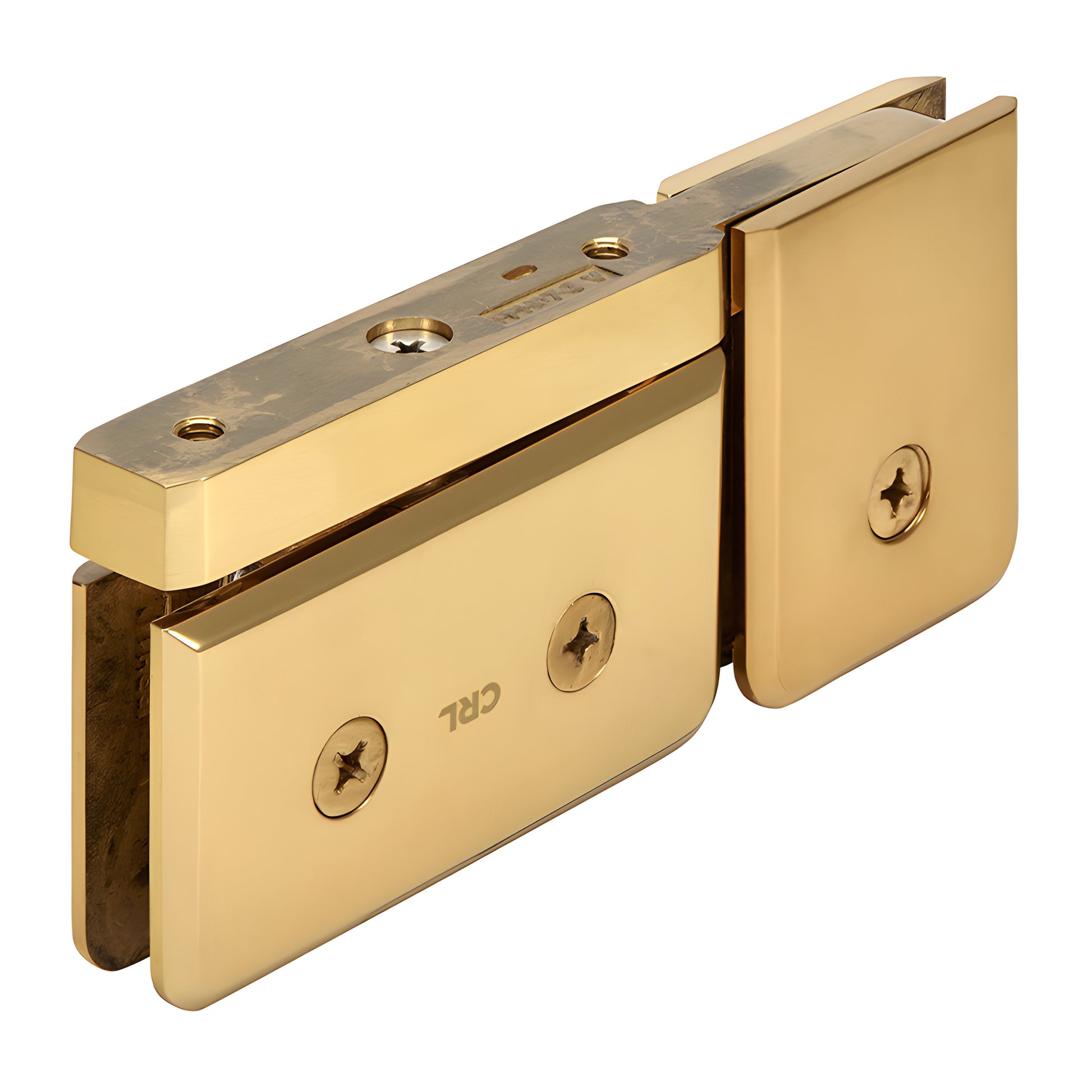

CRL Prima Unlacquered Brass Glass Door Pivot Hinge w/ U-Clamp

• Top or bottom mount with attached U-clamp — alternative to traditional header systems
• Attached U-clamp shares the same design and profile as the hinge
• This hinge series is patented (Patent No. 5,297,313) and CE certified
• Can be mounted at the bottom of the door and adjacent panel for visual symmetry
• Fits 5/16" to 3/8" (8 to 10 mm) tempered safety glass
• Stocked in several popular finishes; custom finishes available on request
• Designed for use with monolithic tempered glass

CRL Prima Series Pivot Hinges are engineered for 5/16" to 3/8" (8 to 10 mm) tempered safety glass and expand application options for frameless and semi-frameless shower enclosures. Pivot-style hinges carry most of the door weight at the bottom and can be inset from the wall to allow clearance for towel bars and other projections. Prima Series hinges are self-centering with four retention springs for reliable closing performance. Optional Cat. No. P1VP1N 5° pre-set pivot pin sets can be ordered separately; pre-set 5° hinge models are also available from stock. Model compatibility notes: PPH01 adapts to the Deluxe Header System; PPH06 is compatible only with the EZ-Adjust Header System and includes the required adapter.

Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Use the optional 5° pivot pin set to alter the door closing position by 5°. Pins may be installed before or retrofitted after installation. Sold as a set (top and bottom). Not included with hinge purchase. Pre-set 5° hinge models are available from stock.

Capacity (two hinges): With 5/16" to 3/8" (8 to 10 mm) glass, two hinges will support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) tempered safety glass
Special Features: Top-and-bottom mount design maximizes visible glass and reduces the number of cut-outs vs. standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: PPH135 also requires two holes; PPH07 requires cut-out for hinge and hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series
