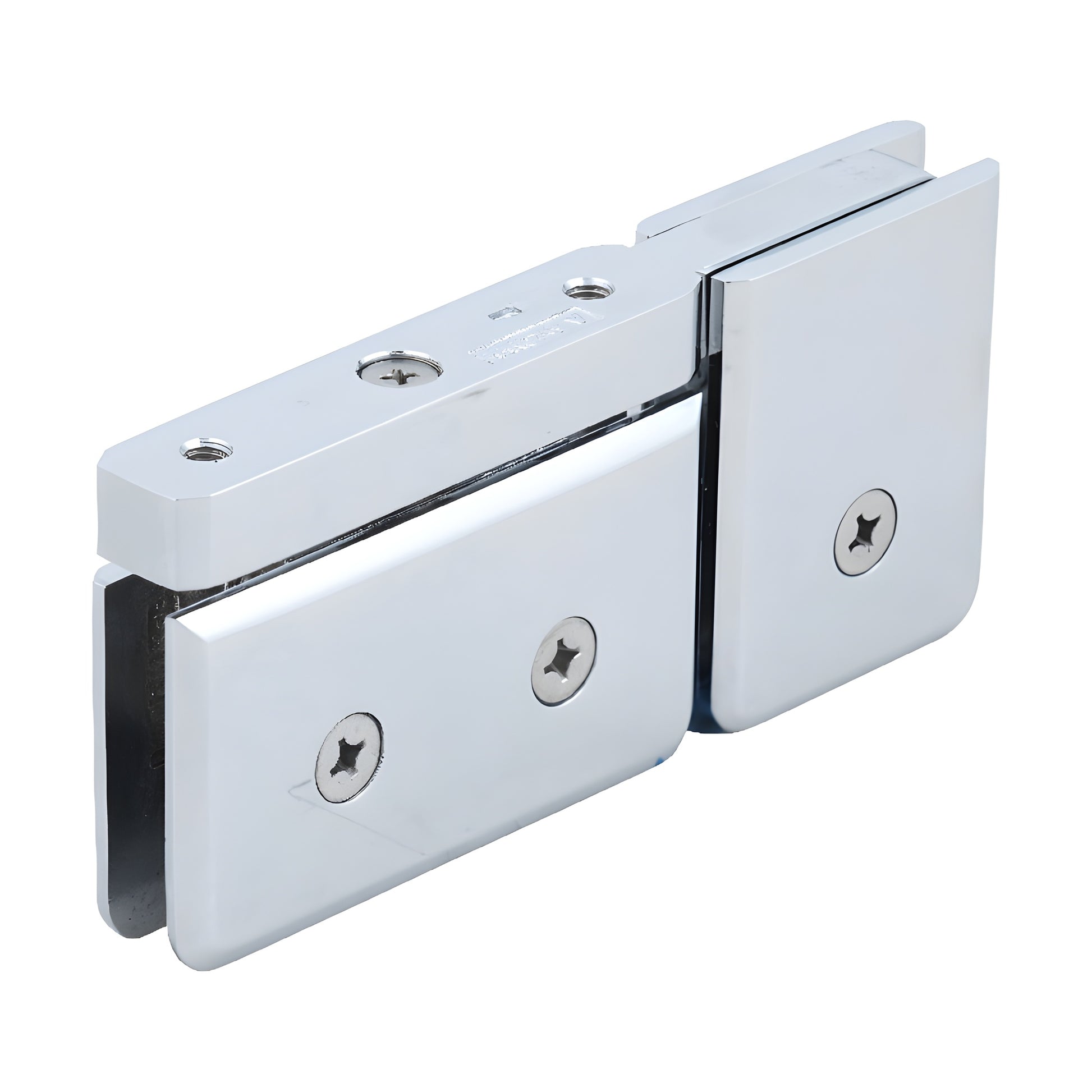

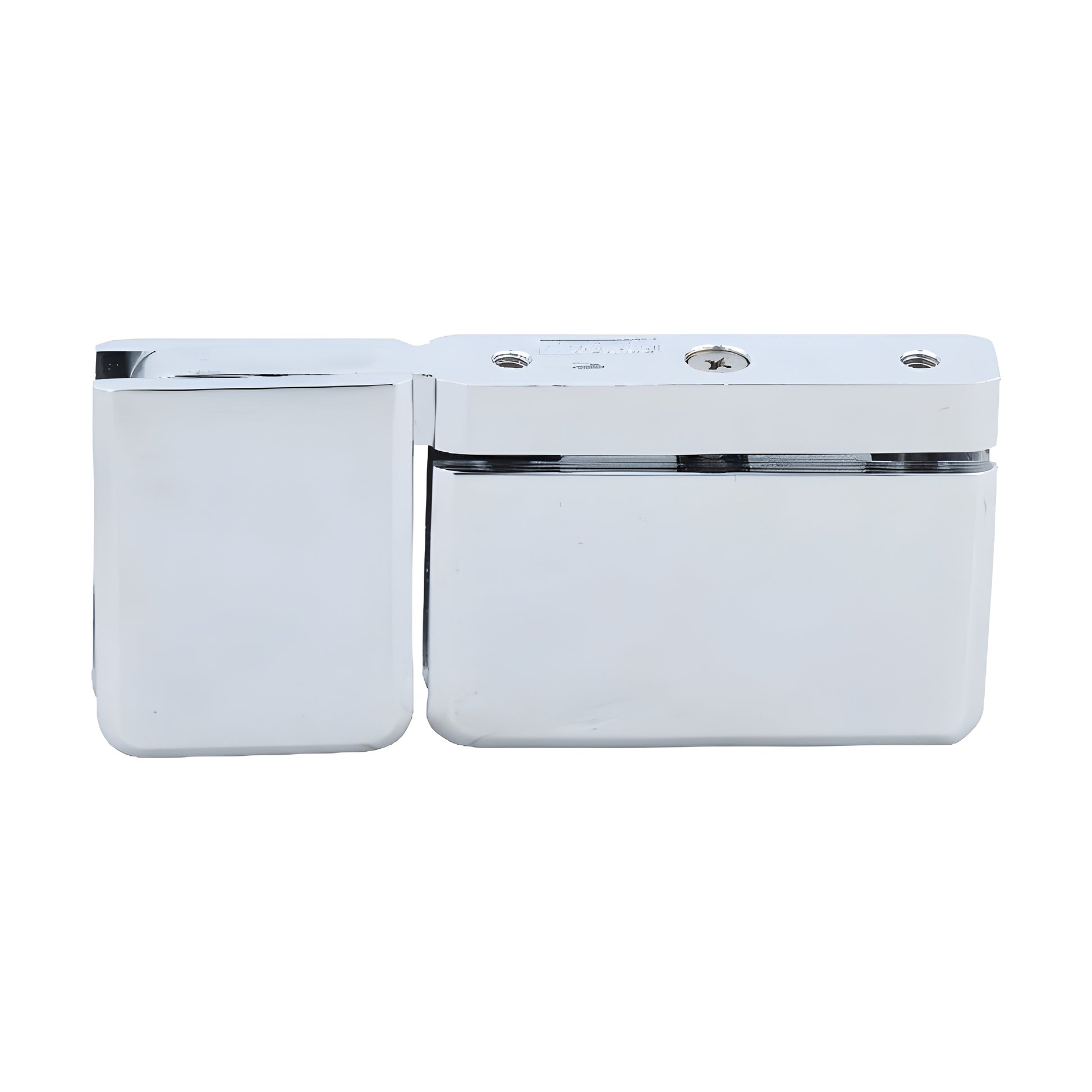

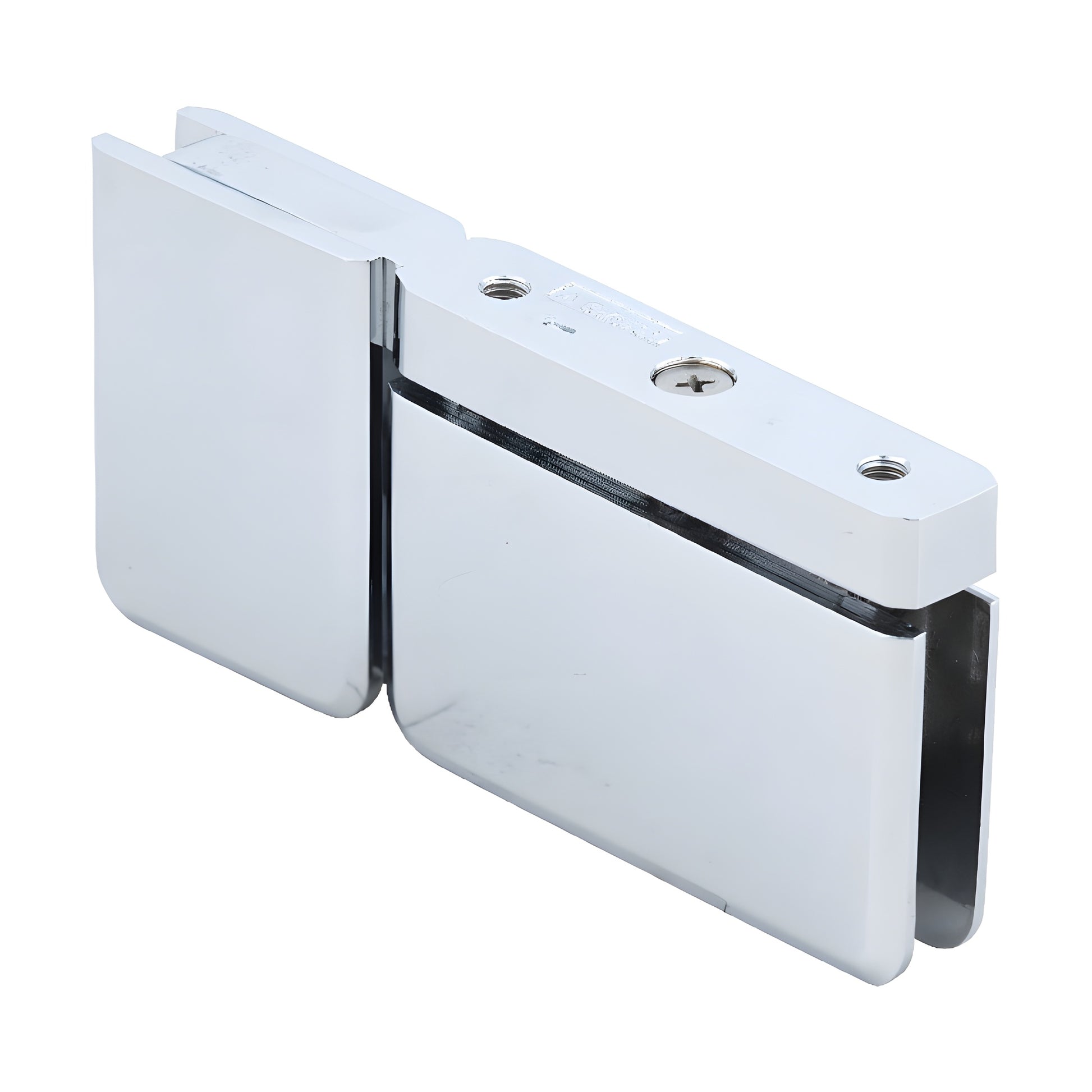

CRL Prima Polished Chrome Pivot Hinge w/ U-Clamp for Glass Doors

• Top or bottom mount with attached U-clamp — alternative to traditional header systems
• Attached U-clamp matches hinge design and profile
• Patented hinge series (Patent No. 5,297,313) — CE certified
• Can be mounted at bottom of door and adjacent panel for visual symmetry
• Fits 5/16" to 3/8" (8 to 10 mm) tempered safety glass
• Stocked in popular finishes; custom finishes available
• Designed for use with monolithic tempered glass

CRL Prima Series Pivot Hinges (SKU: PPH07CH) are engineered for tempered glass shower doors and enclosures, supporting 5/16" to 3/8" (8–10 mm) glass. These solid brass pivot hinges are ideal for residential and hotel shower applications where a durable, self-centering pivot hinge is required. Key differentiators include bottom-weighted construction that carries the majority of the door weight, the ability to inset from the wall for clearance (useful for towel bars and projections), and four-spring self-centering retention for reliable closing performance. The attached U-clamp provides an elegant alternative to header-based systems while maintaining a consistent hinge profile.

Optional 5° Pivot Pin Set: Pre-set 5° pivot pin sets (Cat. No. P1VP1N) let you alter the door closing position by 5°. Pins may be installed before or retrofitted after installation. Sold as a set (top and bottom). Not included with hinge.

Performance with two hinges: For 5/16"–3/8" (8–10 mm) glass, two hinges support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) tempered safety glass
Special Features: Top-and-bottom mount design shows more glass and reduces required cut-outs versus standard side-mount glass-to-glass hinges. PPH01 can be mounted floor-to-ceiling or floor-to-header.
Construction: Solid brass for long-lasting corrosion resistance
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: PPH135 model also requires two holes; PPH07 model requires cut-out for hinge plus hole for clamp
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Patent No. 5,297,313

Custom finishes available on request. Contact the CRL Technical Sales Department for lead times and finish options.
