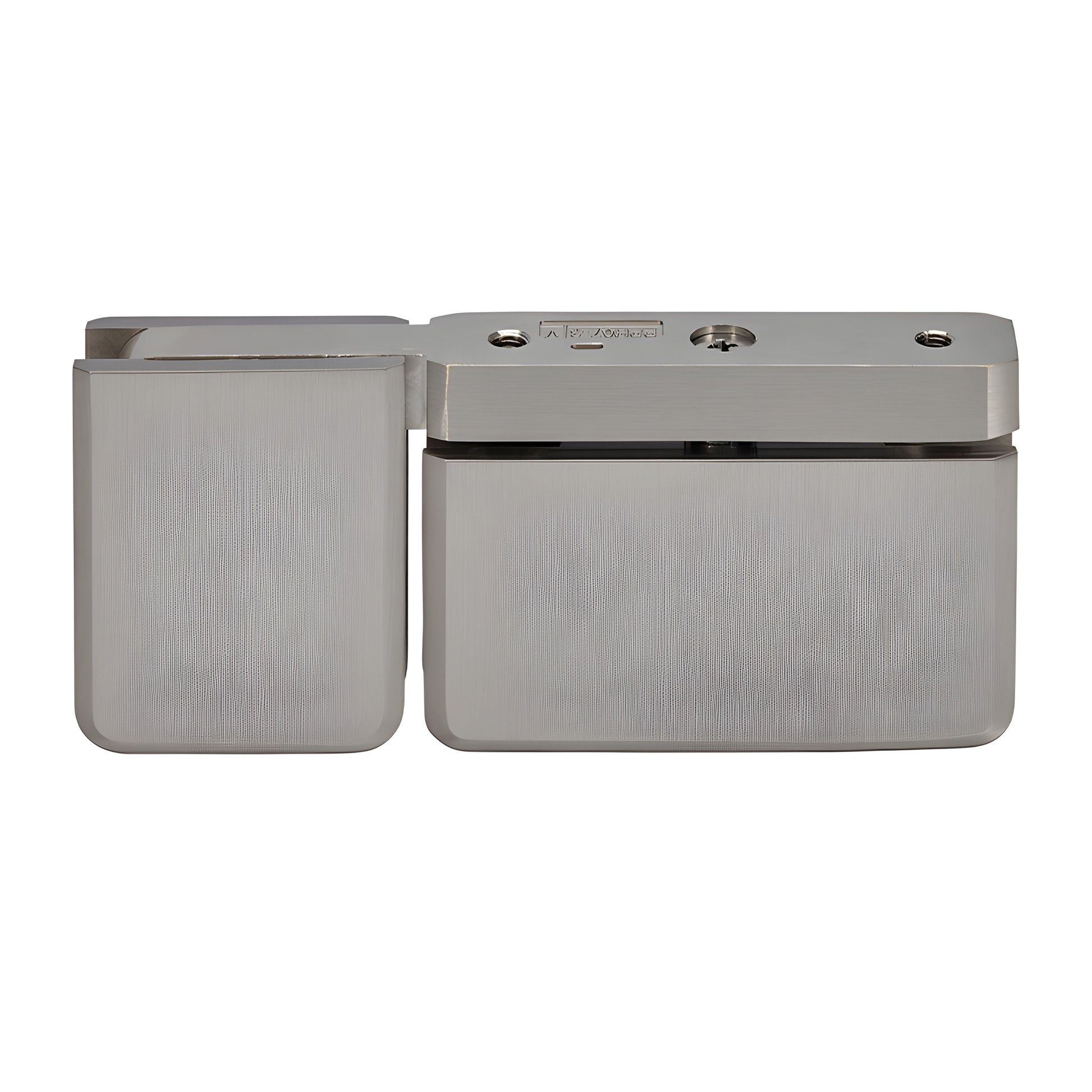

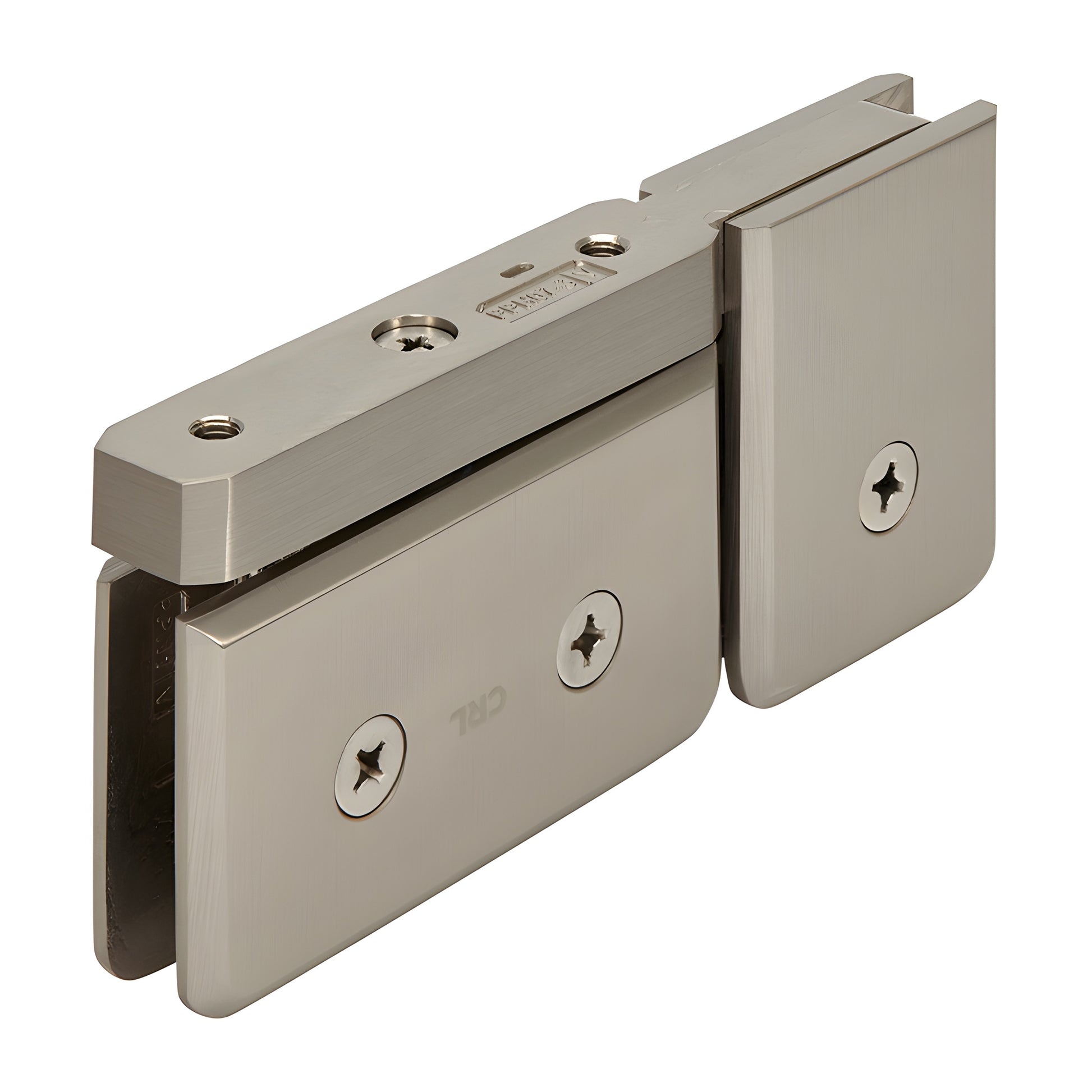

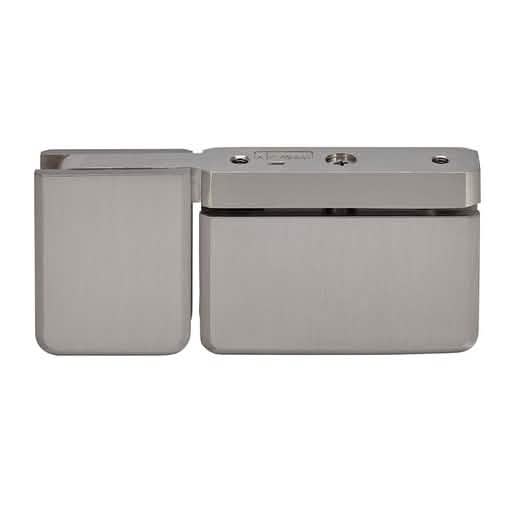

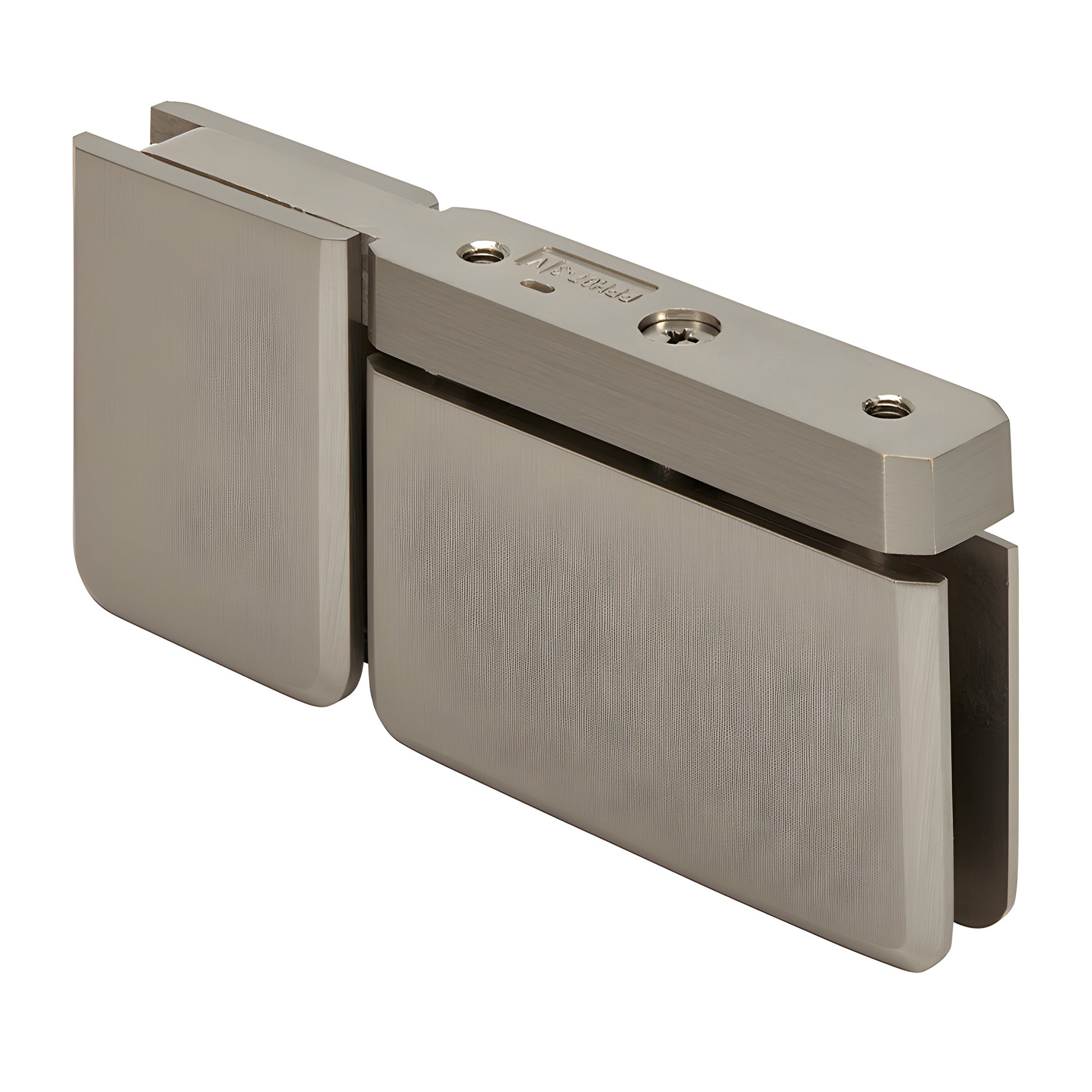

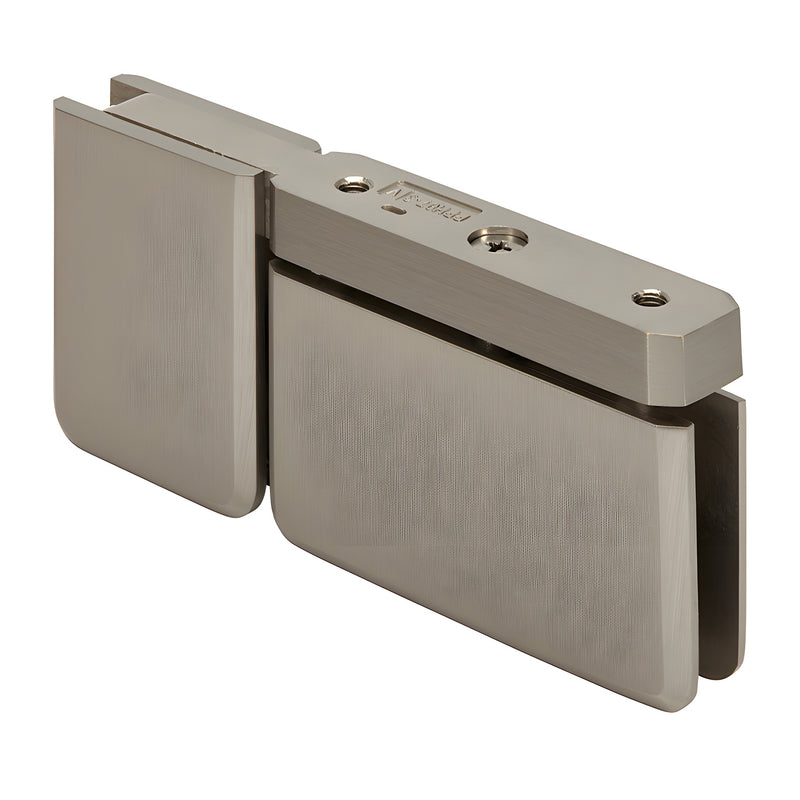

CRL Brushed Nickel Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
CRL Brushed Nickel Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp
Regular price
$153.75 CAD
Regular price
Sale price
$153.75 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PPH07BN
Shipping Weight: 2.32 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.32 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

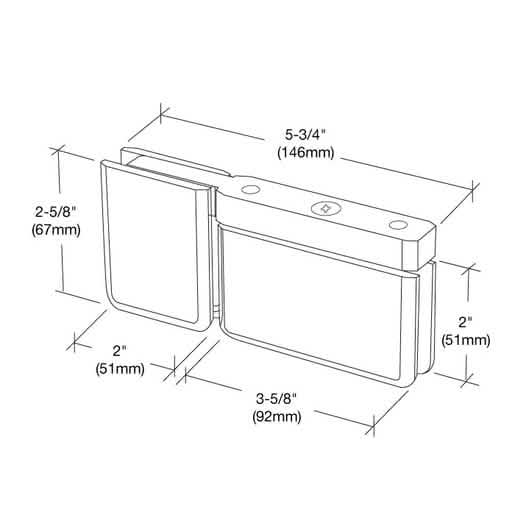

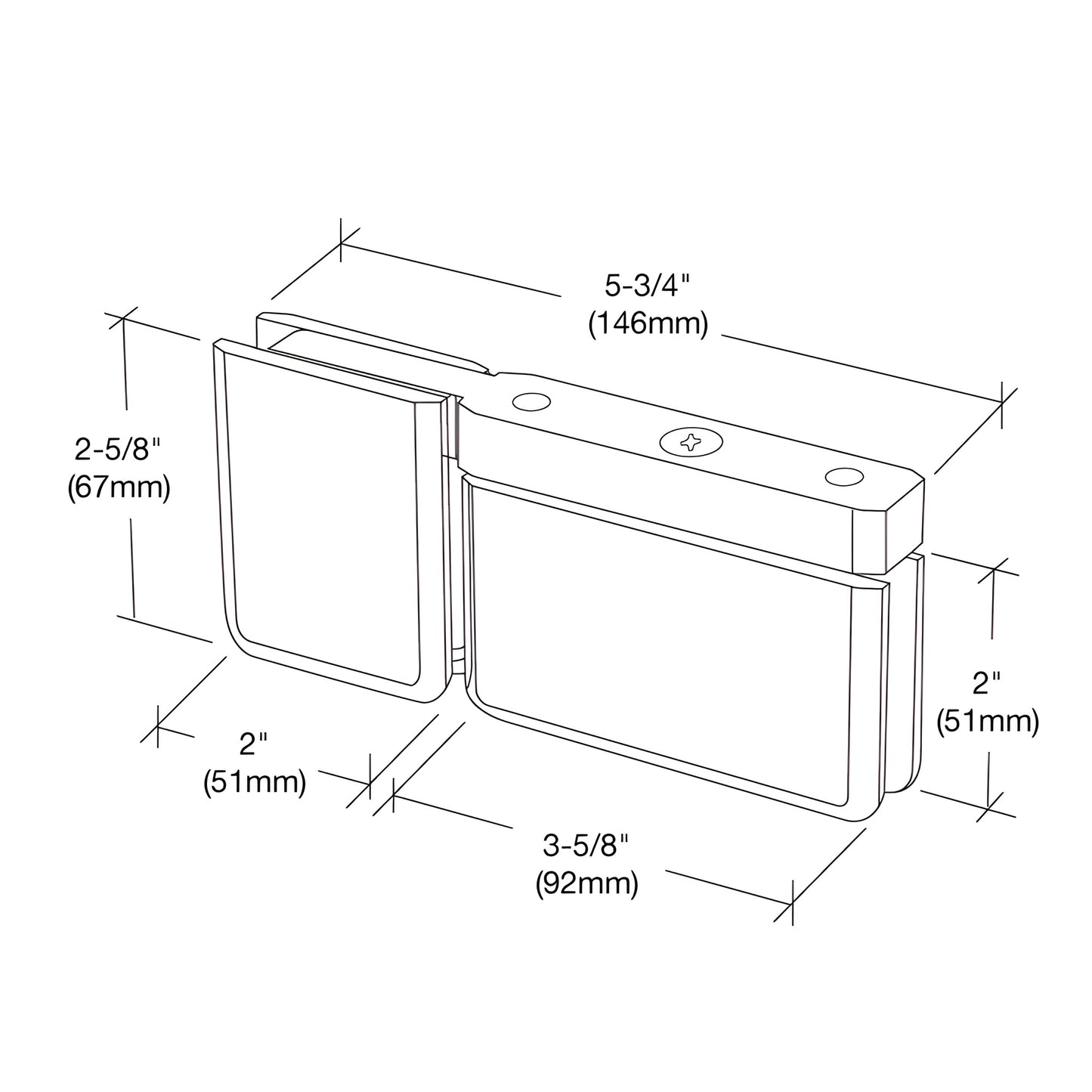

| Design | Style Beveled |
| Edge | Profile Beveled |
| Enclosure | Type Niche, Tailor Made Solutions |
| Finish/Color | Brushed Nickel |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 5/16 in. To 3/8 in. (8 mm To 10 mm) |
| Handing | Field Reversible |
| Height 2-5/8 in. | (67 mm) |
| Height - Door Portion | 2 |
| Height - Sidelite Portion | 2-5/8 |
| Material | Brass |
| Maximum Door Weight 100 lbs. | (45.4 kg) |
| Maximum Door Width 31 in. | (787 mm) |
| Mounting | Type Head & Sill Mount |
| Opening Style Pivot | (floor) |
| Self-Centering Yes | Prima |
| Width - Door Portion 3-5/8 in. | (92 mm) |
| Width - Sidelite Portion | 2 |
Overview
The CRL Prima Series Pivot Hinges are an innovative solution for frameless shower enclosures, designed to work with 5/16" to 3/8" (8 to 10 mm) tempered safety glass.
These patented hinges (Patent No.
5,297,313) offer versatile installation options, including top or bottom mounts with attached U-Clamps for a sleek look.
The Prima Series boasts self-centering capabilities with four springs for maximum retention strength, supporting up to 100 lbs.
(45 kg) for glass widths up to 31" (787 mm).
Custom finishes are available, and optional 5-degree pivot pin sets can adjust the door's closing position, enhancing functionality for both residential and hotel shower applications.
For more information or custom requests, contact the CRL Technical Sales Department.
These patented hinges (Patent No.
5,297,313) offer versatile installation options, including top or bottom mounts with attached U-Clamps for a sleek look.
The Prima Series boasts self-centering capabilities with four springs for maximum retention strength, supporting up to 100 lbs.
(45 kg) for glass widths up to 31" (787 mm).
Custom finishes are available, and optional 5-degree pivot pin sets can adjust the door's closing position, enhancing functionality for both residential and hotel shower applications.
For more information or custom requests, contact the CRL Technical Sales Department.
