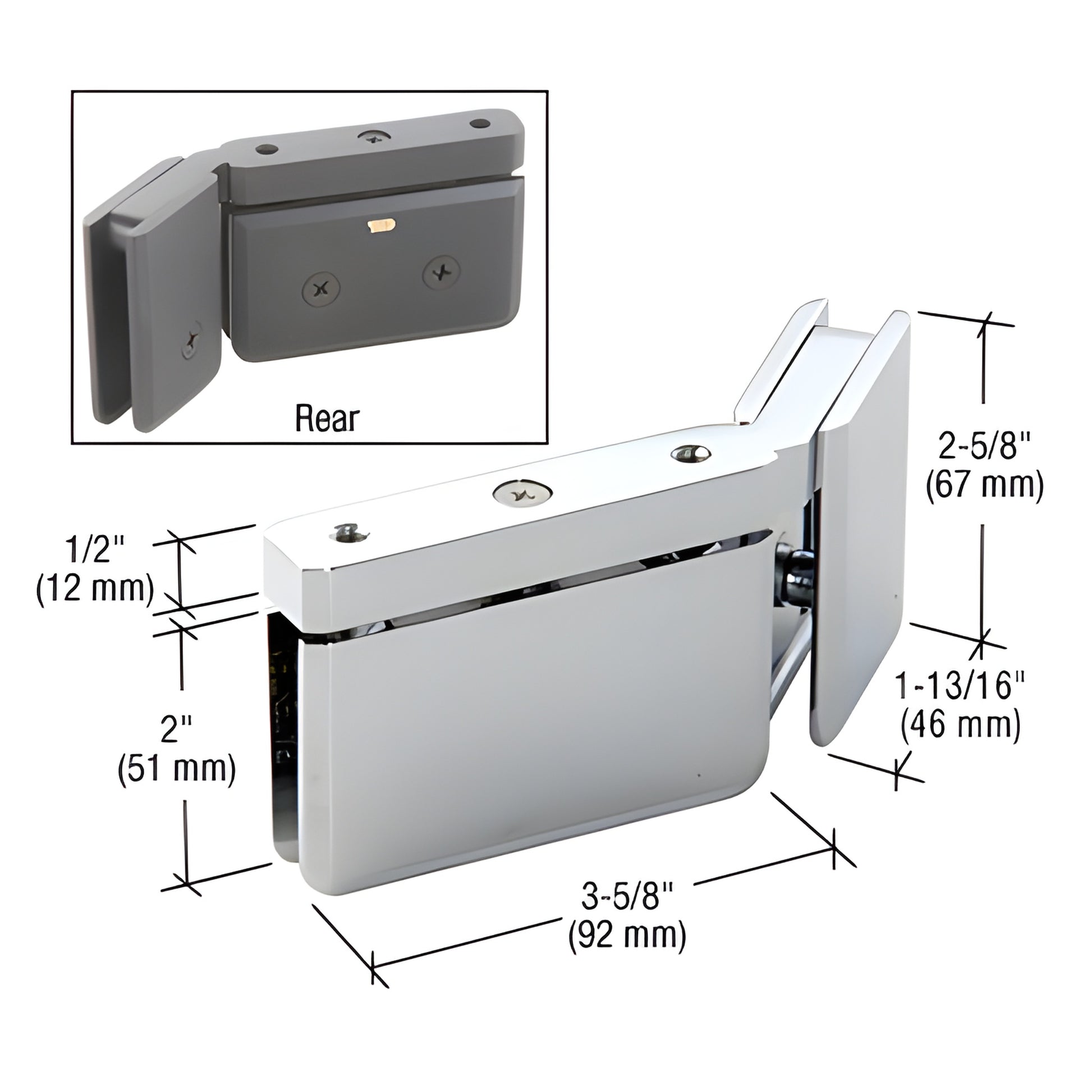

CRL Polished Chrome 135° Right-Hand Prima Glass Door Hinge w/ U-Clamp
CRL Polished Chrome 135° Right-Hand Prima Glass Door Hinge w/ U-Clamp
Regular price
$177.00 CAD
Regular price
Sale price
$177.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PPH0735RCH
Shipping Weight: 2.34 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.34 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Beveled
Edge Profile
Beveled
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Polished Chrome
Glass To Glass Angle
135
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing
Right Hand

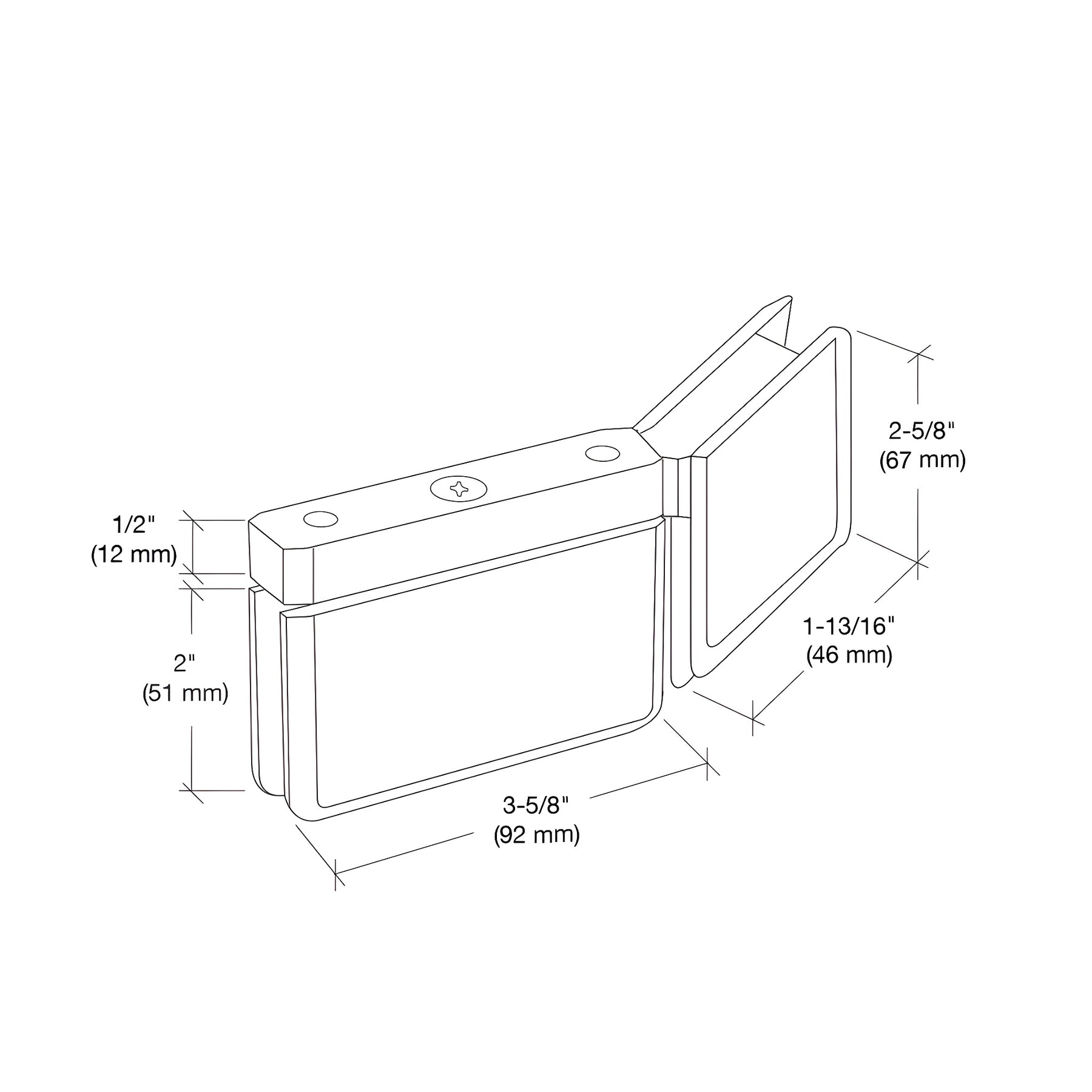

Height
2-5/8 in. (67 mm)
Height - Door Portion
2
Height - Sidelite Portion
2-5/8
Material
Brass
Maximum Door Weight
100 lbs. (45.4 kg)
Maximum Door Width
31 in. (787 mm)
Mounting Type
Head & Sill Mount
Opening Style
Pivot(floor)
Self-Centering
Yes
Series
Prima
Width - Door Portion
3-5/8 in. (92 mm)
Width - Sidelite Portion
1-13/16
Overview
- Alternative to traditional header systems for frameless shower enclosures
- CRL engineered design criteria must be met before use
- Use with monolithic tempered safety glass
- Stocked in six popular finishes; custom finishes available
- For use with 3/8" or 5/16" (10 or 8 mm) thick tempered safety glass
The combination of this CRL 135 Degree Prima Hinge with U-Clamp (SKU: PPH0735RCH) at the top of the enclosure lets installers mount a shower door next to an adjacent 135° fixed panel without a header—ideal for frameless shower door installations. It can also be used at the bottom of the door or paired with a standard PPH01 hinge and a separate U-clamp or U-channel for the bottom panel. Available in six popular finishes and compatible with 3/8" or 5/16" (10 or 8 mm) tempered safety glass.
NOTE: See "Design Criteria" for guidelines and maximum sizes this hinge supports.
Product Warning:
CRL Shower Door Hinges are designed for residential and hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—CRL cut-out dimensions may differ from other brands.
Order the PPH0735RCH 135 degree shower hinge with U-clamp today to finish your frameless shower installation.
