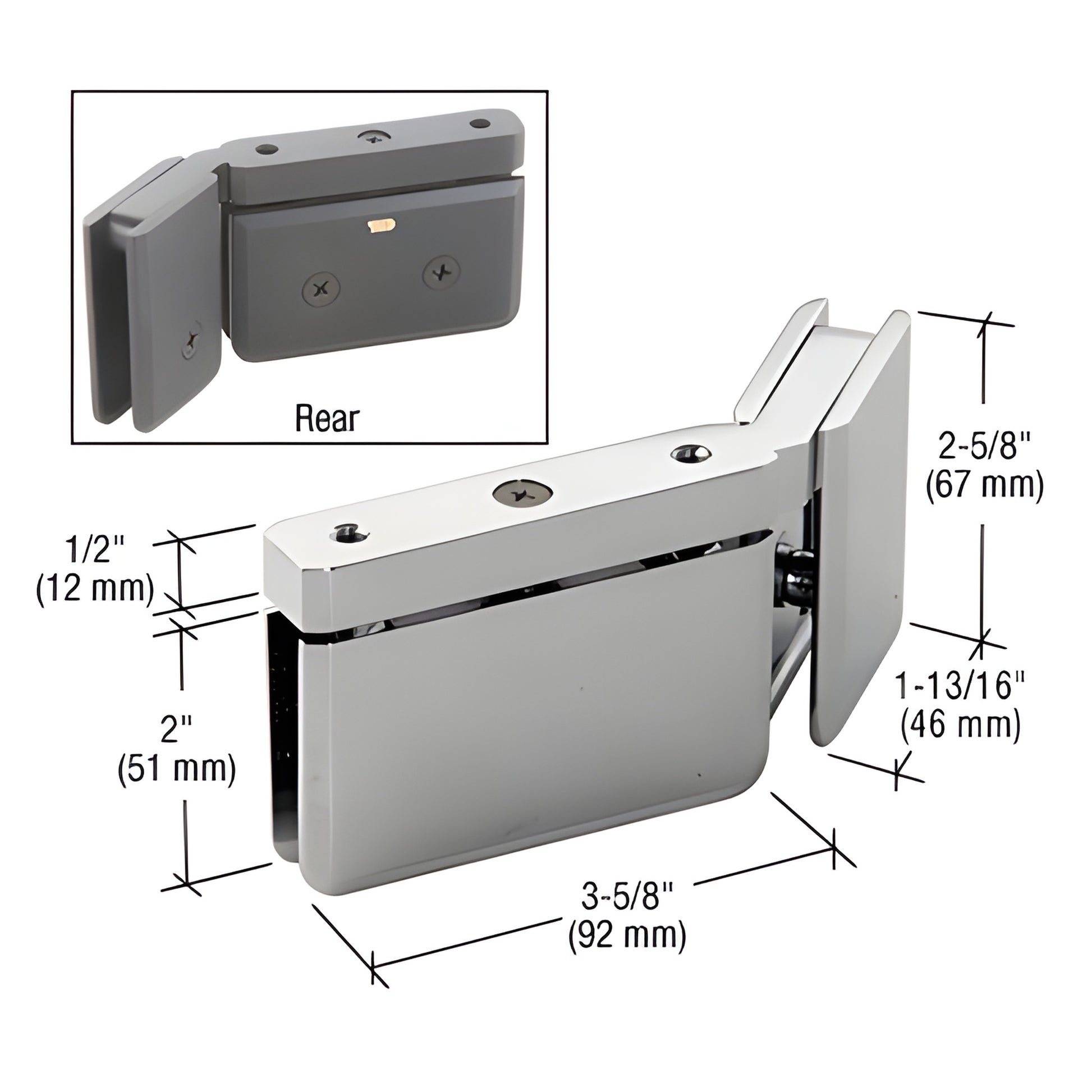

CRL Prima 135° Right-Hand Brushed Nickel Glass Door Hinge U-Clamp
CRL Prima 135° Right-Hand Brushed Nickel Glass Door Hinge U-Clamp
Regular price
$246.00 CAD
Regular price
Sale price
$246.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PPH0735RBN
Shipping Weight: 2.33 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.33 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Beveled
Edge Profile
Beveled
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Brushed Nickel
Glass To Glass Angle
135
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Handing
Right Hand

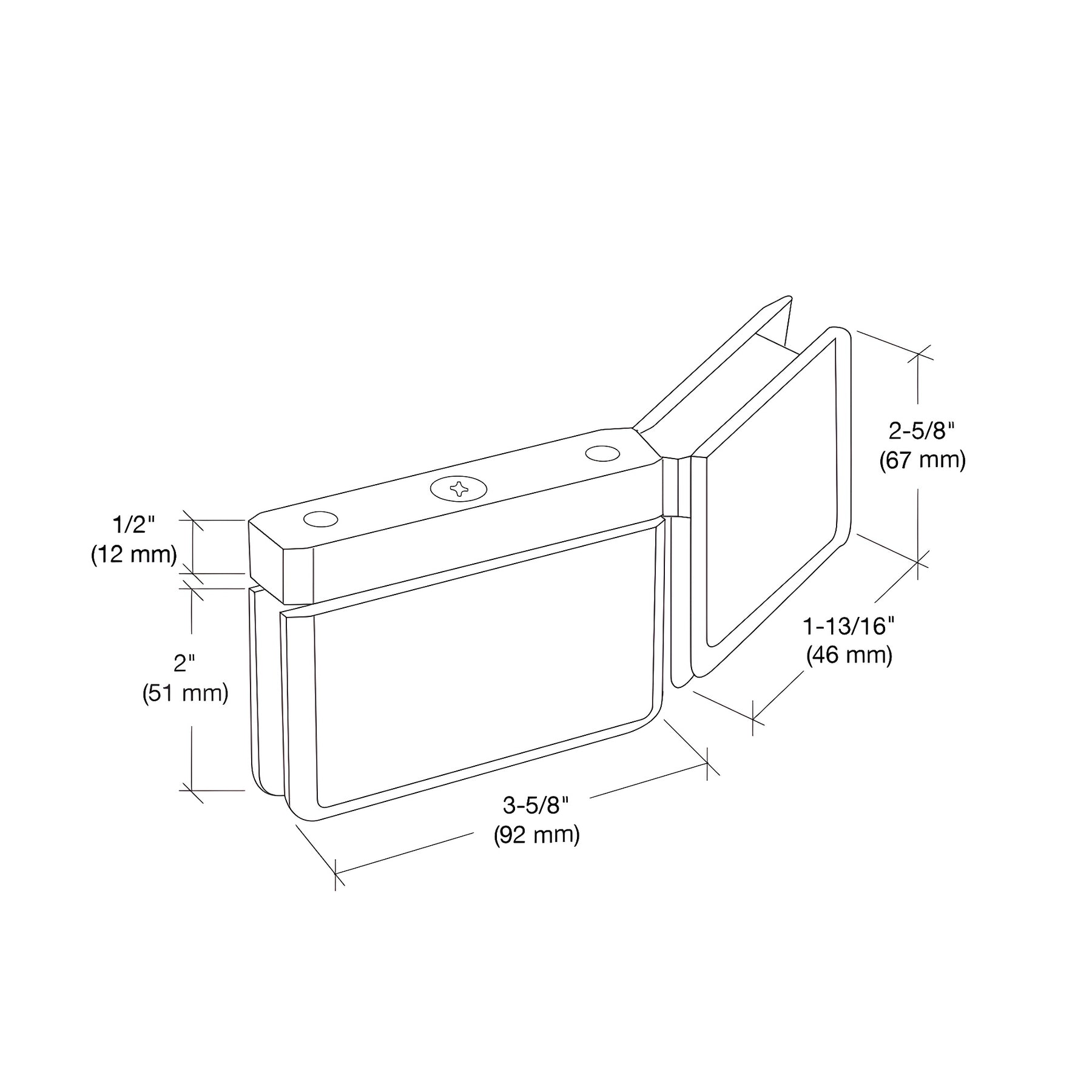

Height
2-5/8 in. (67 mm)
Height - Door Portion
2
Height - Sidelite Portion
2-5/8
Material
Brass
Maximum Door Weight
100 lbs. (45.4 kg)
Maximum Door Width
31 in. (787 mm)
Mounting Type
Head & Sill Mount
Opening Style
Pivot(floor)
Self-Centering
Yes
Series
Prima
Width - Door Portion
3-5/8 in. (92 mm)
Width - Sidelite Portion
1-13/16
Overview
- Alternative to traditional header systems for shower enclosures
- Must meet CRL engineered design criteria before use
- For use with monolithic tempered safety glass
- Compatible with 3/8" or 5/16" (10 or 8 mm) thick tempered safety glass
- Stocked in six popular finishes; custom finishes available
The CRL 135 Degree Prima Hinge with U-Clamp allows installers to mount a shower door adjacent to a 135° fixed panel without a header, providing a clean, headerless look. It can be used at the top of the enclosure and may also be applied at the bottom of the door; alternatively, use a standard PPH01 model with a separate U-clamp or U-channel at the bottom. Designed for monolithic tempered glass, this hinge supports 3/8" or 5/16" (10 or 8 mm) tempered safety glass and is available in six stocked finishes with custom finishes on request.
NOTE: See "Design Criteria" for installation guidelines and maximum panel sizes for this hinge.
Product Warning:
CRL Shower Door Hinges are intended for residential or hotel shower use. Use for other applications requires approval from the CRL Shower Door Technical Sales Department. Use only the template provided with this hinge—cut-out dimensions for CRL hinges may differ from other brands.
SKU: PPH0735RBN
