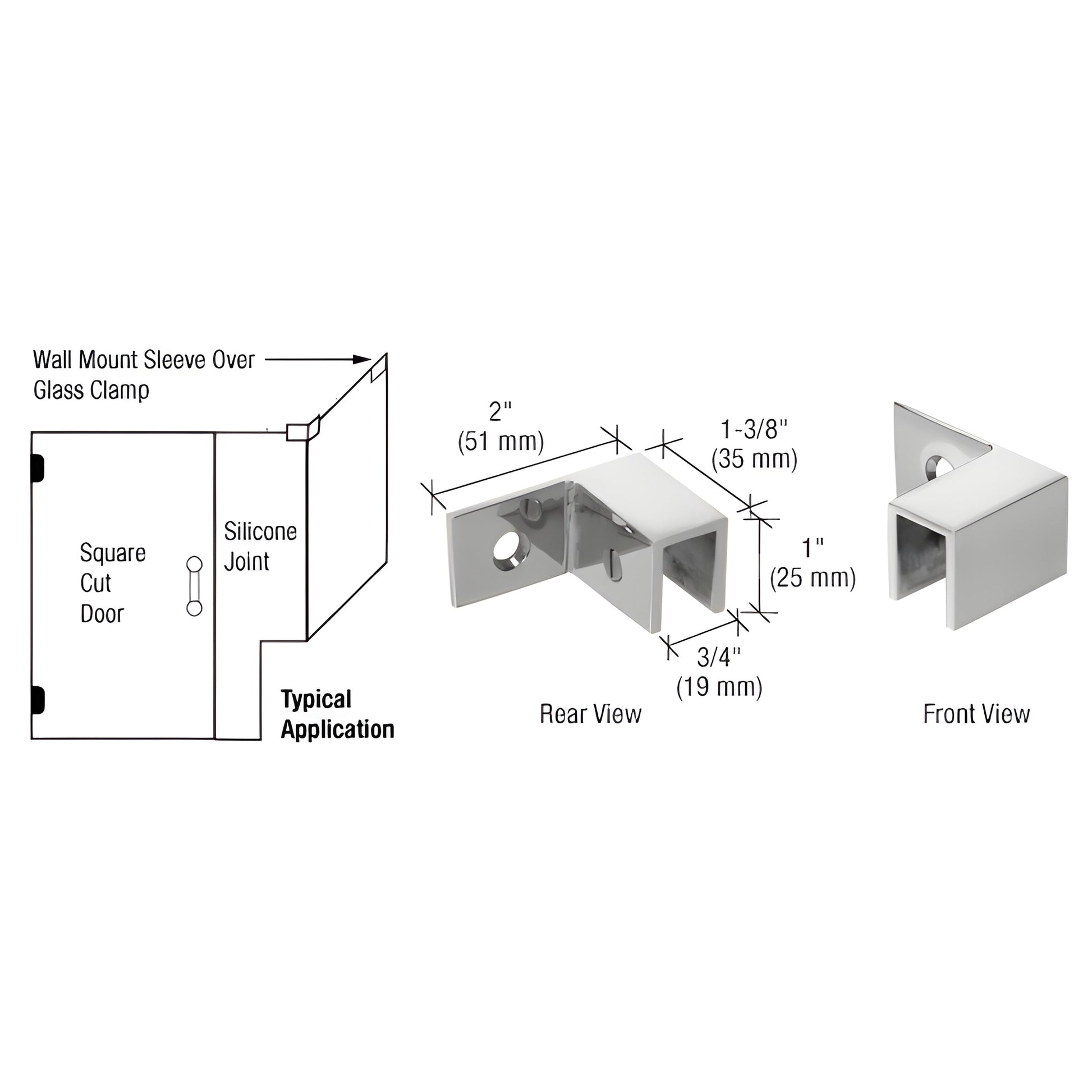

CRL Polished Chrome Right-Hand Sleeve-Over Wall-Mount Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) thick tempered glass
• Use monolithic tempered glass
• Solid brass construction
• Secured to glass with nylon‑tipped Allen set screws
• Assists with shear forces on glass panels
• Holds panels in position while sealant cures
• Right‑handed orientation as viewed from outside shower

CRL Sleeve Over Glass Clamps are solid‑brass sleeve‑over glass clamps engineered for frameless shower doors and glass partitions. Designed to absorb shear forces and temporarily secure 8–12 mm tempered glass panels without special glass fabrication, these sleeve clamps simplify installation and protect glass edges. Use them to hold panels in position while silicone sealant cures—the sealant provides long‑term pull strength and waterproofing—while the clamps are tightened using nylon‑tipped Allen set screws for a secure, non‑marring hold.

P612** replacement screws

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid brass
Includes: Gaskets
No glass fabrication required

NOTE: Clamps tighten using nylon‑tipped Allen screws. These clamps are not designed to replace headers or a support bar. Contact CRL Frameless Shower Technical Sales for installation guidance.

Product Warning:
These clamps are not designed to take the place of headers or a support bar. Use as a mechanical fastener and temporary support only.

SKU: S0GC37RCH — Order these solid brass sleeve‑over glass clamps for reliable, no‑fabrication installation. Add to cart to secure your glass panels today.
