CRL Brushed Nickel Right-Hand Wall-Mount Glass Clamp for Shower Door

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Use monolithic tempered glass
• Solid brass construction
• Secured to glass with nylon-tipped Allen set screws
• Assists with shear forces on glass panels
• Holds glass panels in position while sealant cures
• Right-handed as viewed from outside shower

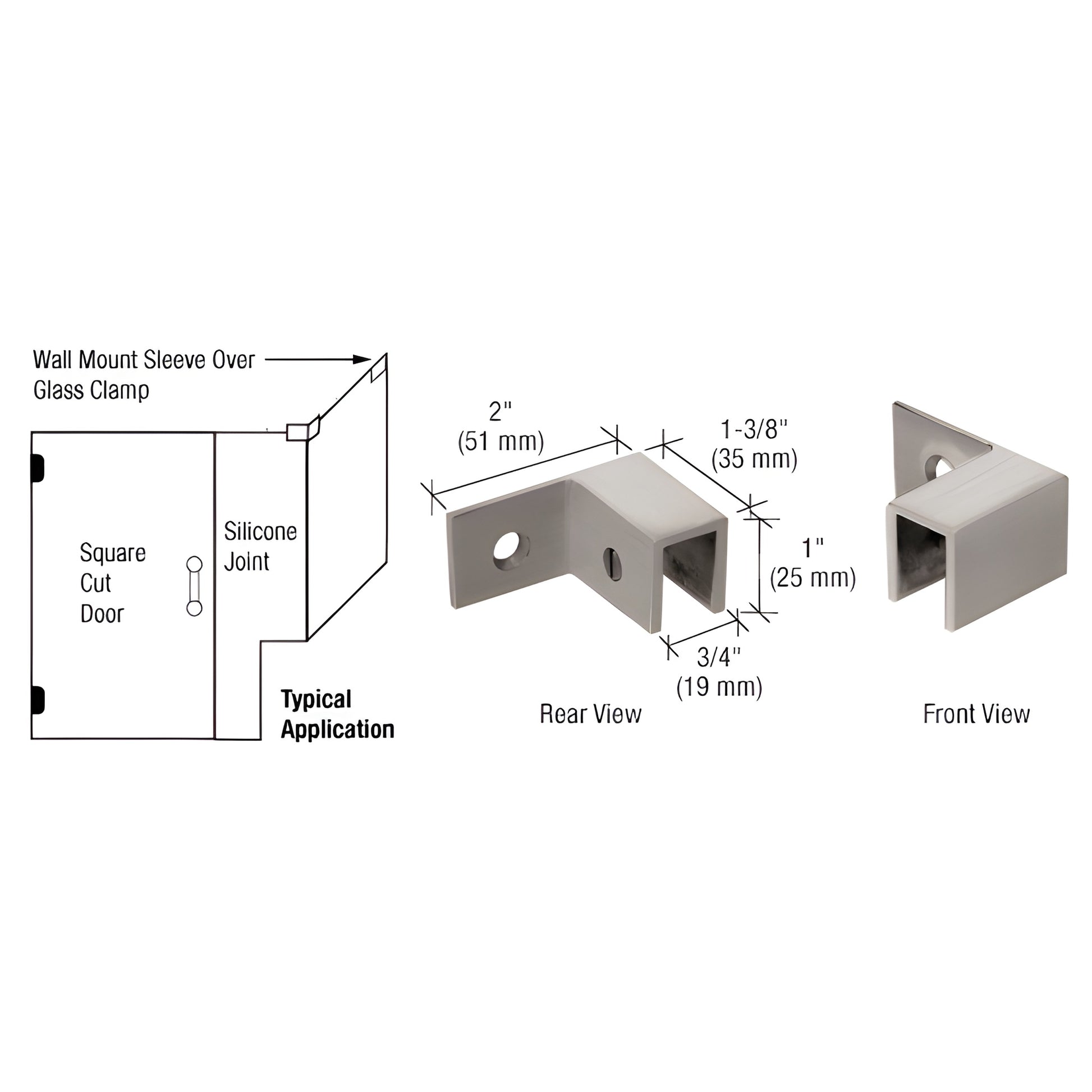

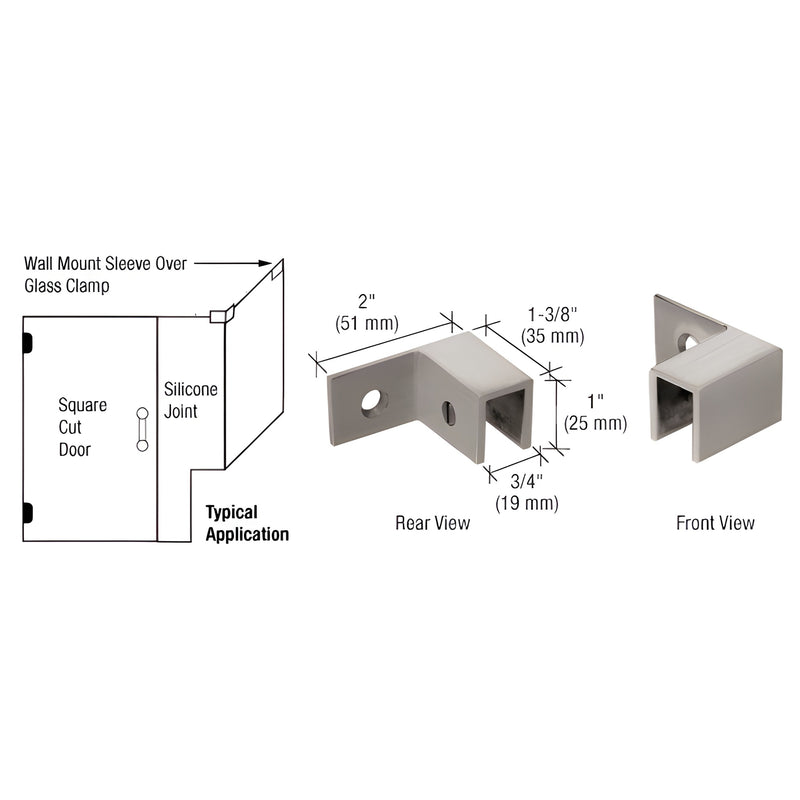

CRL Sleeve Over Glass Clamps (SKU: S0GC37RBN) are solid-brass, right-hand glass clamps designed for frameless shower installations and other applications requiring a mechanical fastener to resist shear forces. No special glass fabrication is required—use with monolithic tempered glass 5/16"–1/2" (8–12 mm). Clamps secure with nylon-tipped Allen set screws and include gaskets for a protective seal. Ideal as a temporary positioning device while silicone sealant cures; silicone provides the final pull strength and water-tight bond.

P612** replacement screws

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid brass
Includes: Gaskets
No glass fabrication required

NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not designed to replace headers or a support bar. For structural guidance, contact CRL Frameless Shower Technical Sales.

Product Warning:
These clamps are not designed to take the place of headers or a support bar. Use only as directed for frameless shower glass support and positioning.

Need help specifying the right clamp for your frameless shower project? Contact CRL or order SKU S0GC37RBN today.
