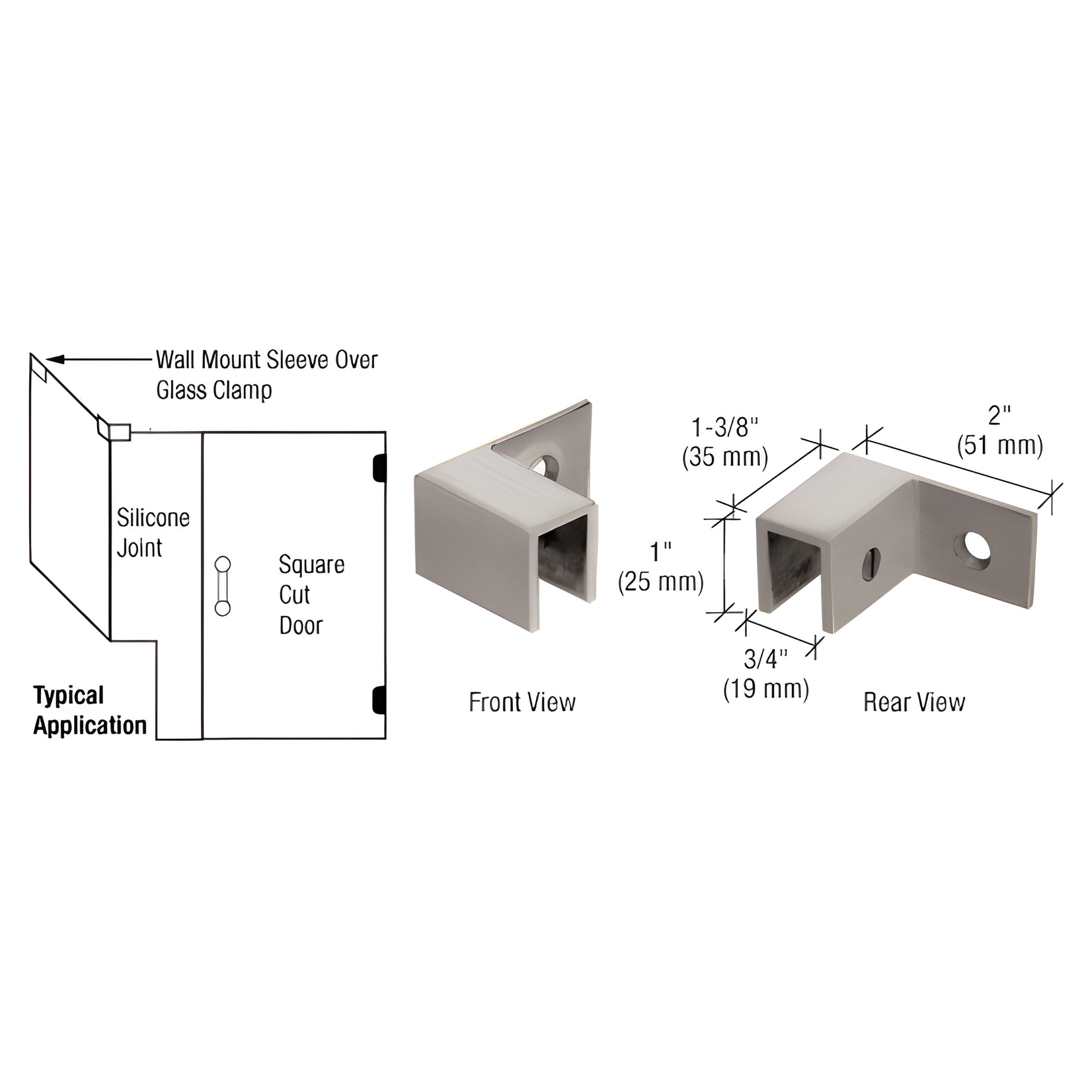

CRL Brushed Nickel Left-Hand Sleeve-Over Wall-Mount Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Use monolithic tempered glass
• Solid brass construction
• Secured to glass with nylon‑tipped Allen set screws
• Assists with shear forces on frameless shower panels
• Holds glass panels in position while sealant cures
• Left‑handed as viewed from outside shower

CRL Sleeve Over Glass Clamps (SKU: S0GC37LBN) are engineered as a mechanical fastener to resist shear forces on frameless shower glass. No special glass fabrication is required—these solid brass, sleeve‑over clamps install directly on monolithic tempered glass and use nylon‑tipped Allen set screws for secure, non‑marring clamping. Ideal as a temporary or supplemental locator while silicone sealant cures, they help prevent panel movement, reduce water leakage risk, and simplify installation of frameless shower enclosures.

P612** replacement screws

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No glass fabrication required

NOTE: Clamps tighten using nylon‑tipped Allen screws. These clamps are not designed to replace headers or a support bar. Contact CRL Frameless Shower Technical Sales for application guidance.


Product Warning:

These clamps are not designed to take the place of headers or a support bar.

Order the left‑handed solid brass sleeve over glass clamp (SKU: S0GC37LBN) for secure, no‑fabrication installation—contact CRL or add to cart to get started.
