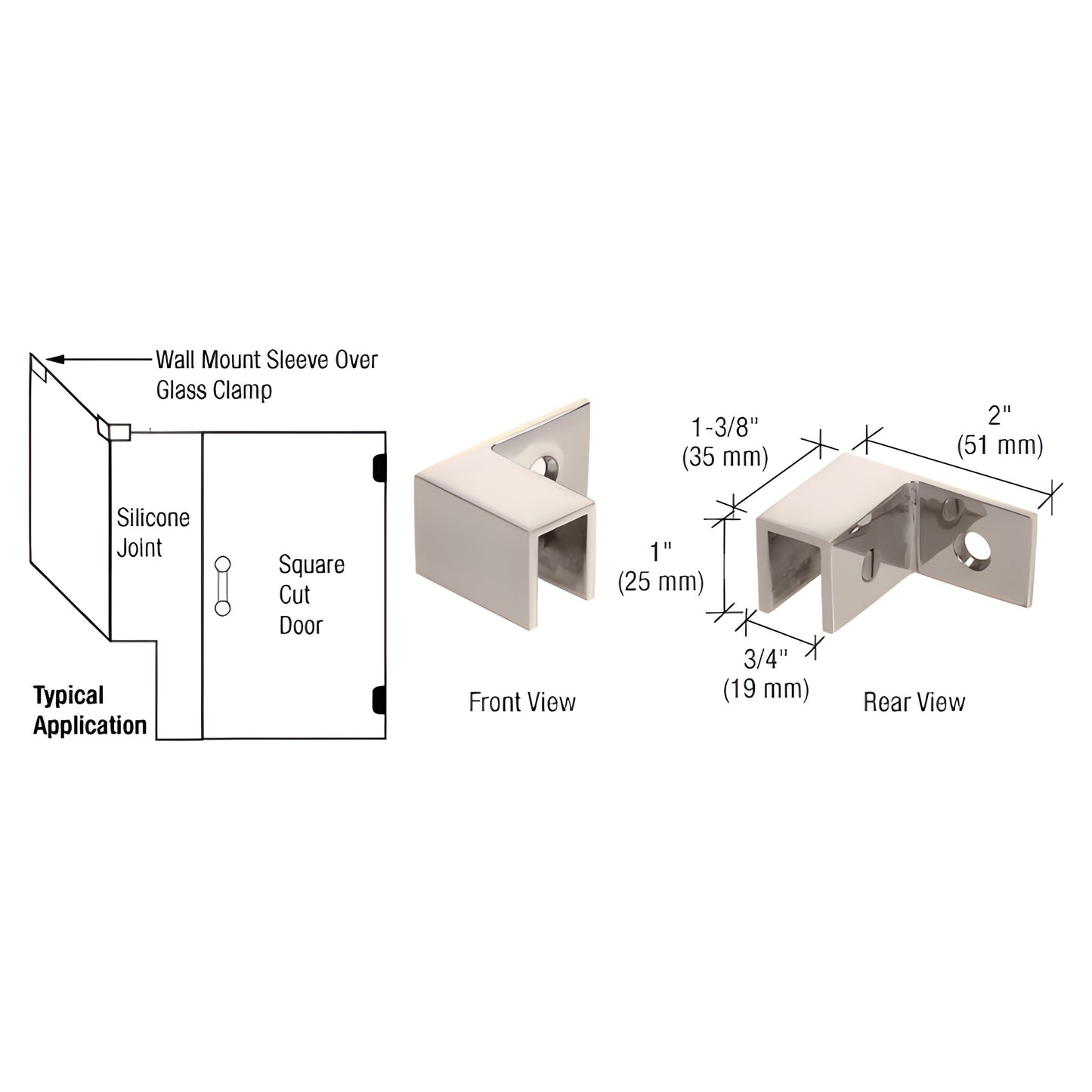

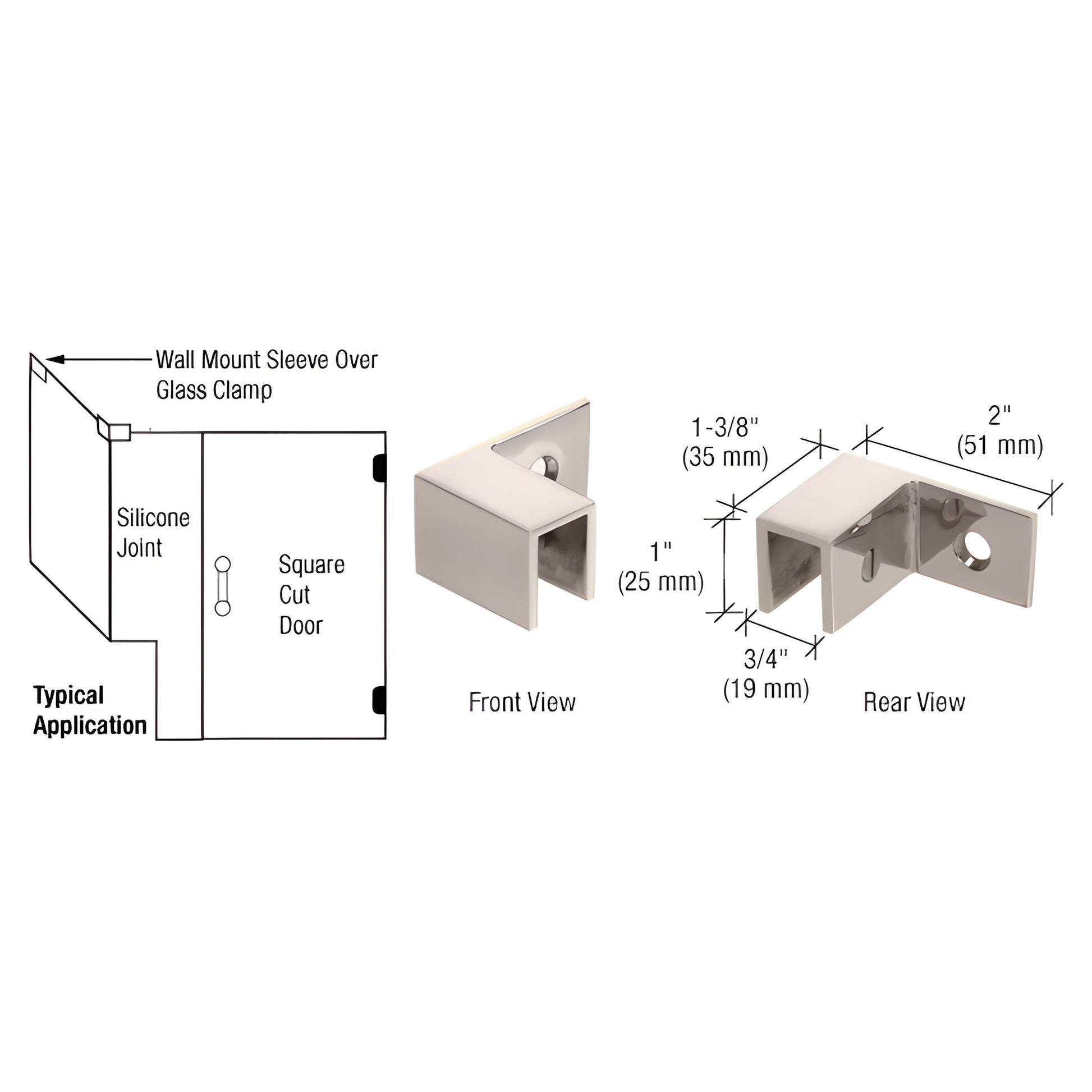

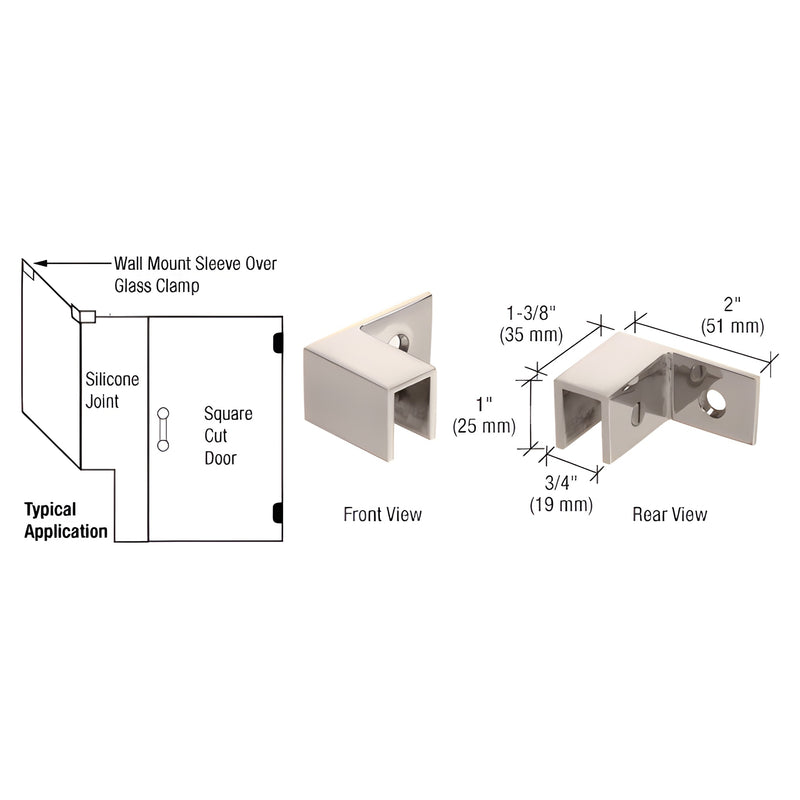

CRL Polished Nickel Left-Hand Sleeve-Over Clamp for Frameless Glass

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Use monolithic tempered glass
• Solid brass construction
• Secured to glass with nylon-tipped Allen set screws
• Assists with shear forces on glass panels
• Holds glass panels in position while sealant cures
• Left-handed orientation (as viewed from outside shower)

CRL Sleeve Over Glass Clamps are frameless shower glass clamps designed to provide a mechanical fastener that resists shear forces on glass panels. No special glass fabrication is required. These sleeve-over-glass clamps can also secure panels while silicone sealant cures—the sealant provides watertight joints and the long-term pull strength—while the clamp delivers immediate positioning and shear support. Clamps are secured with nylon-tipped Allen set screws for a non-marring hold.

P612** replacement screws

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid brass
Includes: Gaskets
No glass fabrication required

NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not designed to replace headers or a support bar. Contact CRL Frameless Shower Technical Sales for application details.


Product Warning:

These clamps are not designed to take the place of headers or a support bar.

SKU: S0GC37LPN

Need help selecting the correct frameless shower glass clamp? Contact our technical sales team or add to cart to get started.
