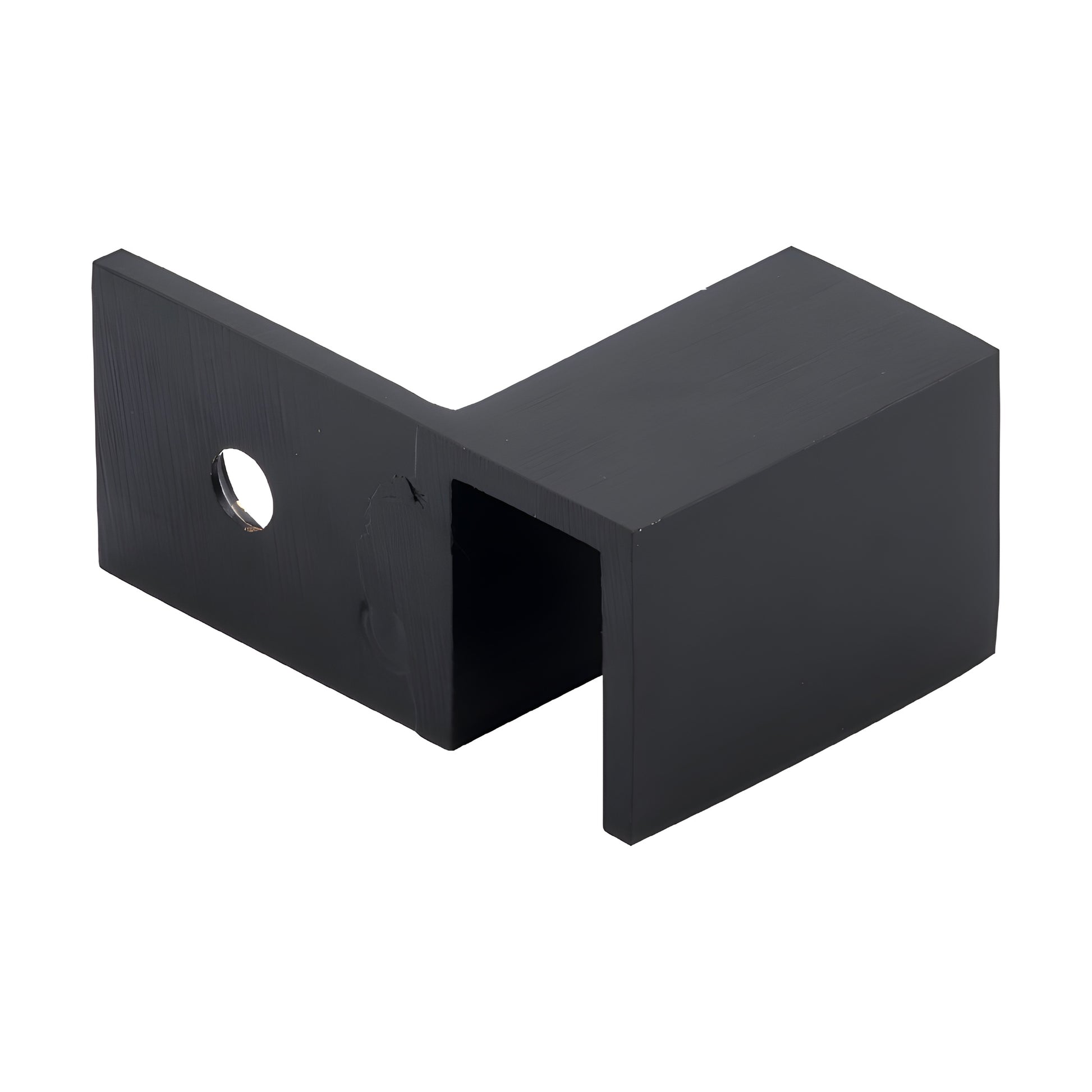

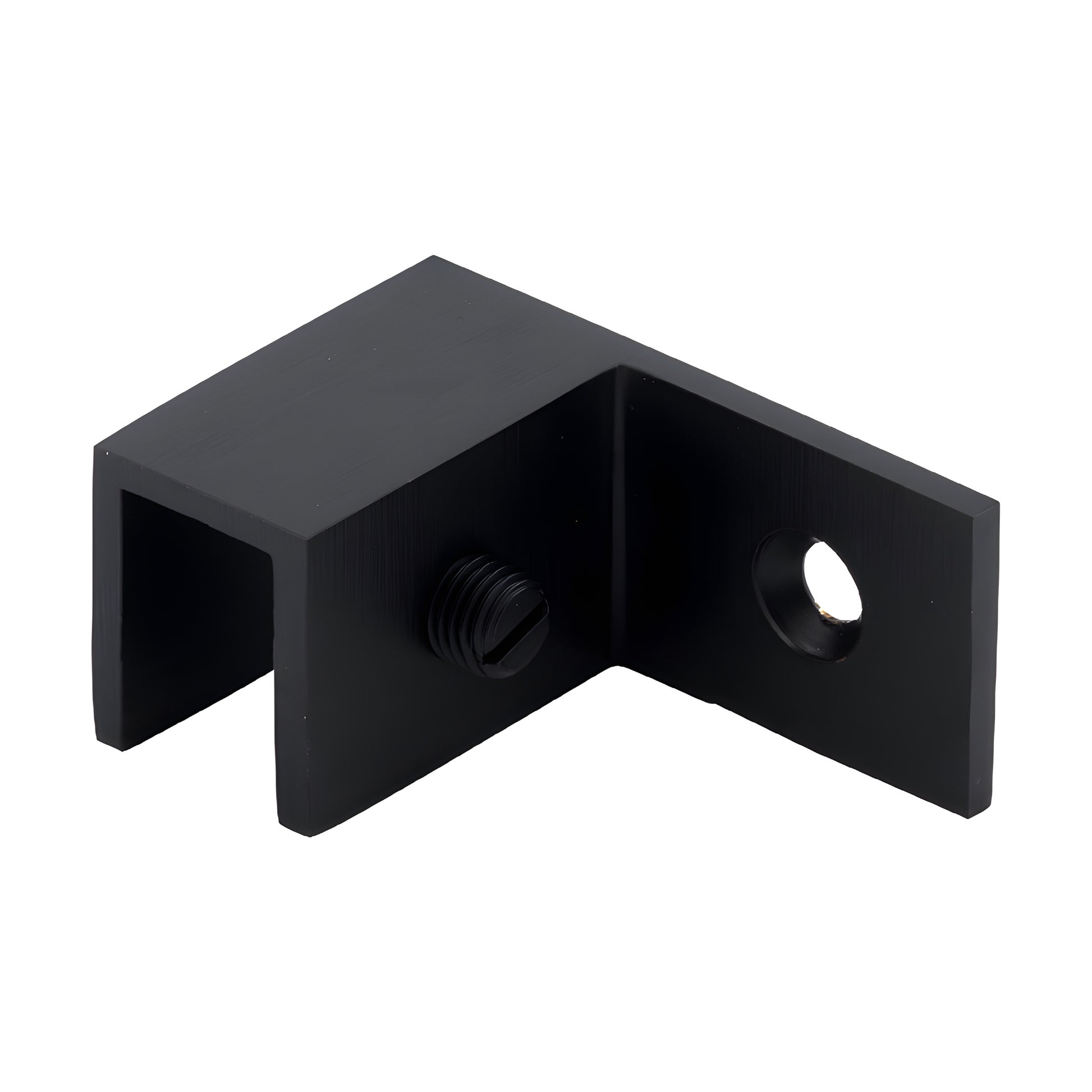

Product Details
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Use Monolithic Tempered Glass
- Solid Brass
- Secured to Glass with Set Screws
- Assists with Shear Forces
- Holds Glass Panels in Position While Sealant Cures
- Left-Handed as Viewed from Outside Shower
CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
P612** replacement screws
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No Glass Fabrication Required
NOTE: Clamps tighten using nylon tipped Allen screws. These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales for more details.
Product Warning:
These Clamps are not designed to take the place of Headers or a Support Bar.
