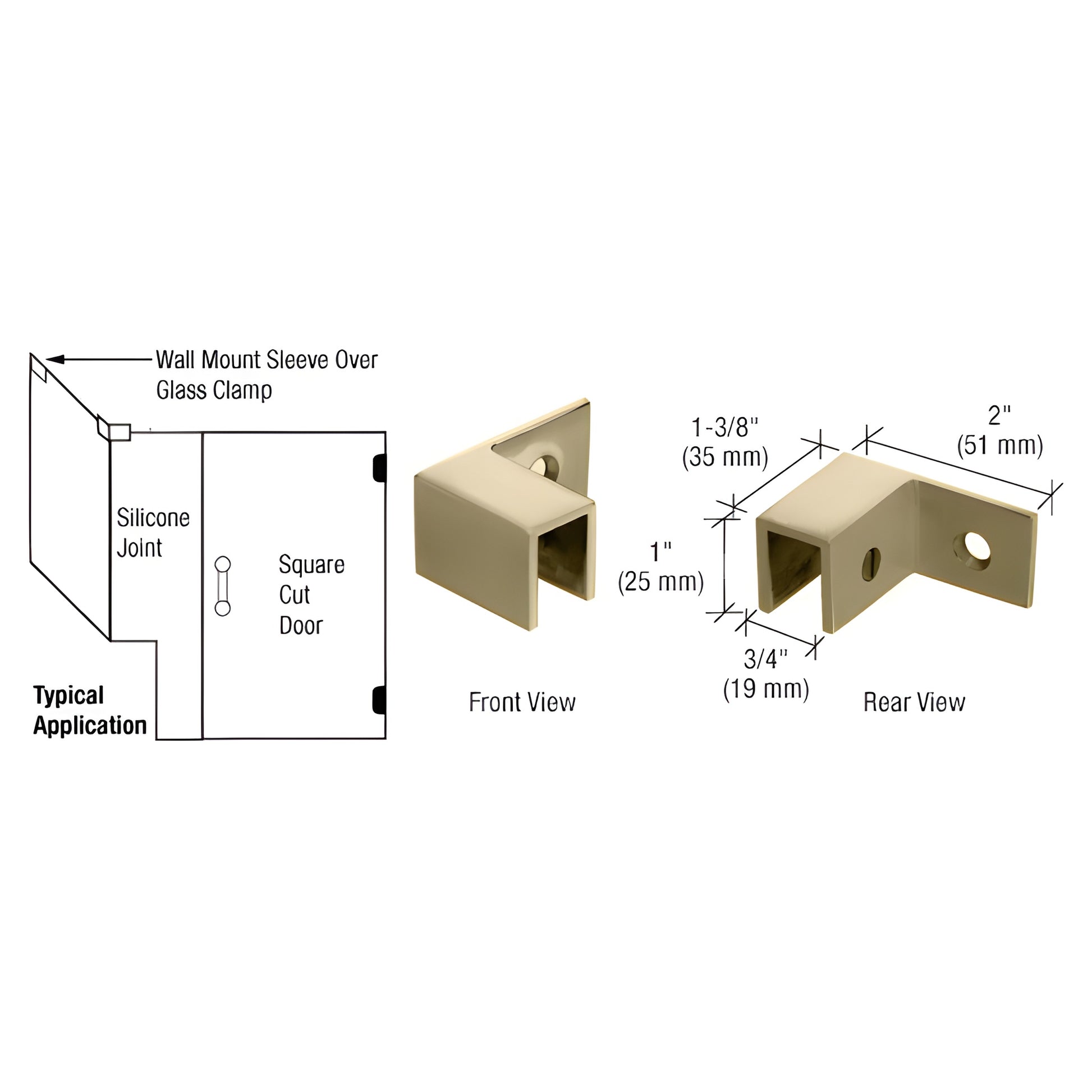

CRL Brushed Bronze Left-Hand Wall-Mount Sleeve-Over Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Use Monolithic Tempered Glass
• Solid Brass
• Secured to Glass with Set Screws
• Assists with Shear Forces
• Holds Glass Panels in Position While Sealant Cures
• Left-Handed as Viewed from Outside Shower

CRL Sleeve Over Glass Clamps (SKU: S0GC37LBBRZ) are precision solid-brass clamps for frameless shower glass installations. Designed to resist shear forces and temporarily hold monolithic tempered glass panels in position while silicone sealant cures, these left-handed glass clamps require no special glass fabrication. Clamps are secured with nylon-tipped Allen set screws and include protective gaskets to prevent glass marring.

P612** replacement screws

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No Glass Fabrication Required

NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not designed to replace headers or support bars. Contact CRL Frameless Shower Technical Sales for installation details and compatibility.

Product Warning:

These clamps are not designed to take the place of headers or a support bar. Use as a mechanical fastener to supplement sealant during cure only.

Order the left-handed solid brass frameless shower glass clamp (SKU S0GC37LBBRZ) today to secure glass panels during installation.
