CRL Brushed Bronze Right-Hand Sleeve-Over Wall-Mount Glass Clamp
CRL Brushed Bronze Right-Hand Sleeve-Over Wall-Mount Glass Clamp
Couldn't load pickup availability
Shipping Weight: 3.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

Description
Overview
- For 5/16" to 1/2" (8 to 12 mm) thick glass
- Use monolithic tempered glass
- Solid brass construction
- Secured to glass with nylon-tipped Allen set screws
- Assists with shear forces on glass panels
- Holds panels in position while sealant cures
- Right-handed as viewed from outside shower

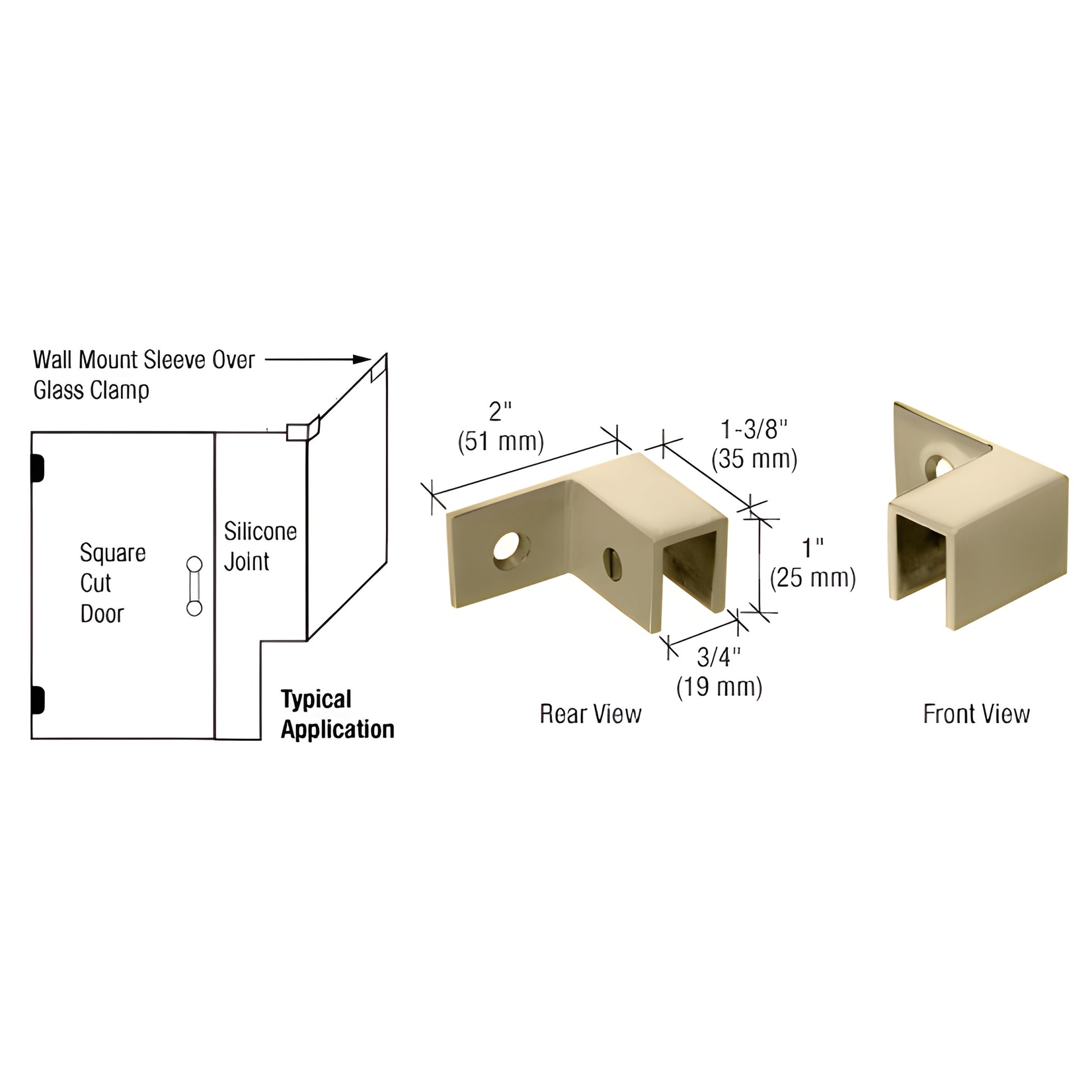

CRL Sleeve Over Glass Clamps (SKU: S0GC37RBBRZ) are heavy-duty, solid brass clamps designed for frameless shower and glass partition applications. These sleeve-over-glass clamps provide a mechanical fastener to resist shear forces and stabilize panels during silicone cure—no special glass fabrication required. Clamps use nylon-tipped Allen set screws and include gaskets for secure, non-marring installation.
P612** replacement screws
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid brass
Includes: Gaskets
No glass fabrication required
NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not a substitute for headers or a support bar. Contact CRL Frameless Shower Technical Sales for installation guidance and load requirements.
Product Warning:
These clamps are not designed to replace headers or a support bar. Use as a supplementary fastener only.
Order the solid brass sleeve-over-glass clamp (SKU: S0GC37RBBRZ) for reliable, tempered-glass support in frameless shower installations—contact us to buy or get technical help.
