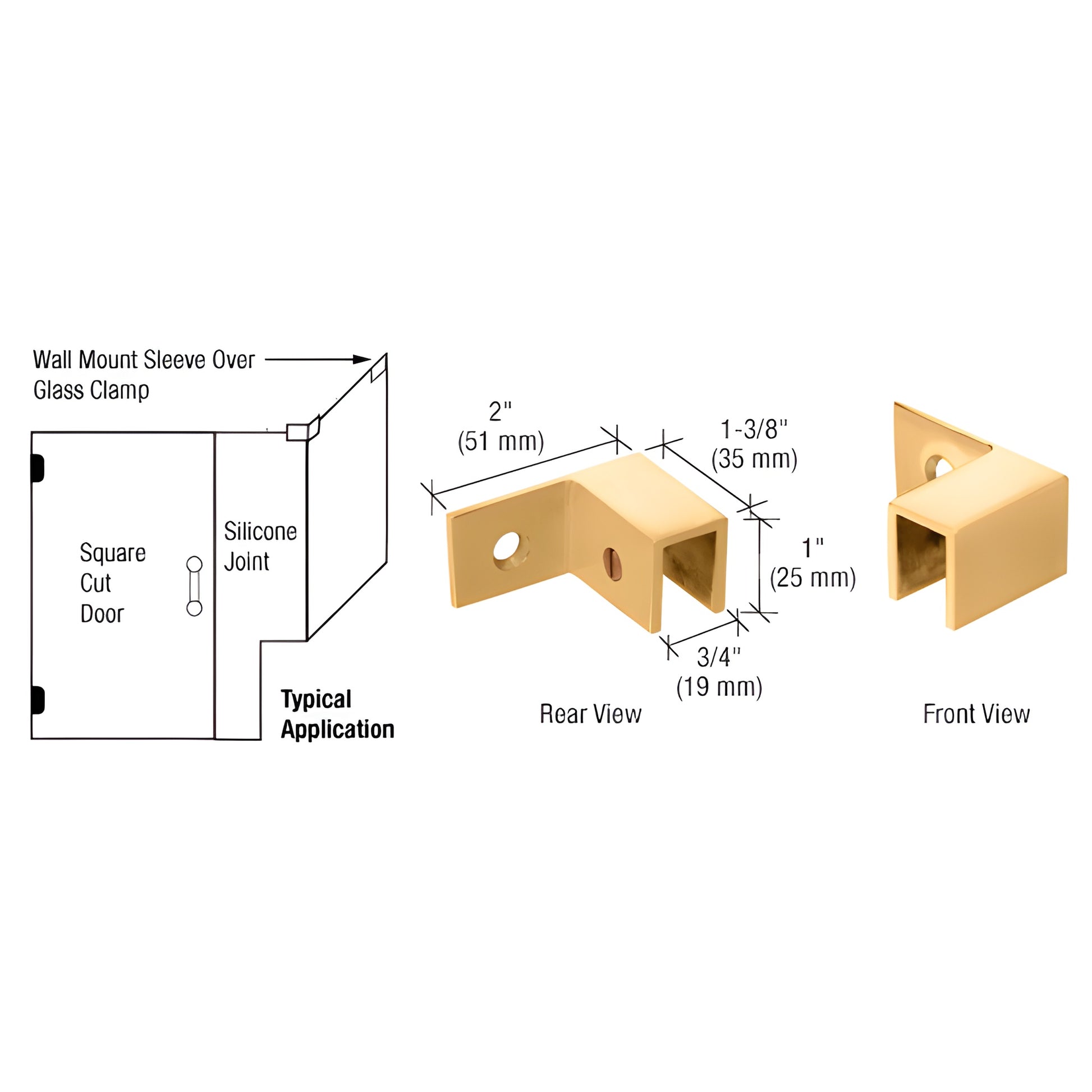

CRL Satin Brass Right-Hand Wall-Mount Sleeve-Over Glass Clamp

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Use monolithic tempered glass
• Solid brass sleeve-over-glass clamp
• Secured to glass with nylon‑tipped Allen set screws
• Assists with shear forces on frameless shower panels
• Holds glass panels in position while sealant cures
• Right-handed as viewed from outside shower

CRL Sleeve Over Glass Clamps (SKU: S0GC37RSB) are engineered for frameless shower installations that require a compact mechanical fastener to resist shear forces on glass panels. No special glass fabrication is required. These brass sleeve-over-glass clamps secure panels while silicone sealant cures—the sealant provides waterproofing and long-term pull strength—while the clamps are tightened with nylon‑tipped Allen set screws for a secure hold.

P612** replacement screws

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No glass fabrication required

NOTE: Clamps tighten using nylon‑tipped Allen screws. These clamps are not designed to replace headers or a support bar. Contact CRL Frameless Shower Technical Sales for installation guidance.

Product Warning:
These clamps are not intended to serve as a substitute for headers or a support bar in structural applications.

Brass Finish Advisory:

Designed for frameless shower glass (8–12 mm tempered glass). Order SKU S0GC37RSB or contact CRL for pricing and technical support.
