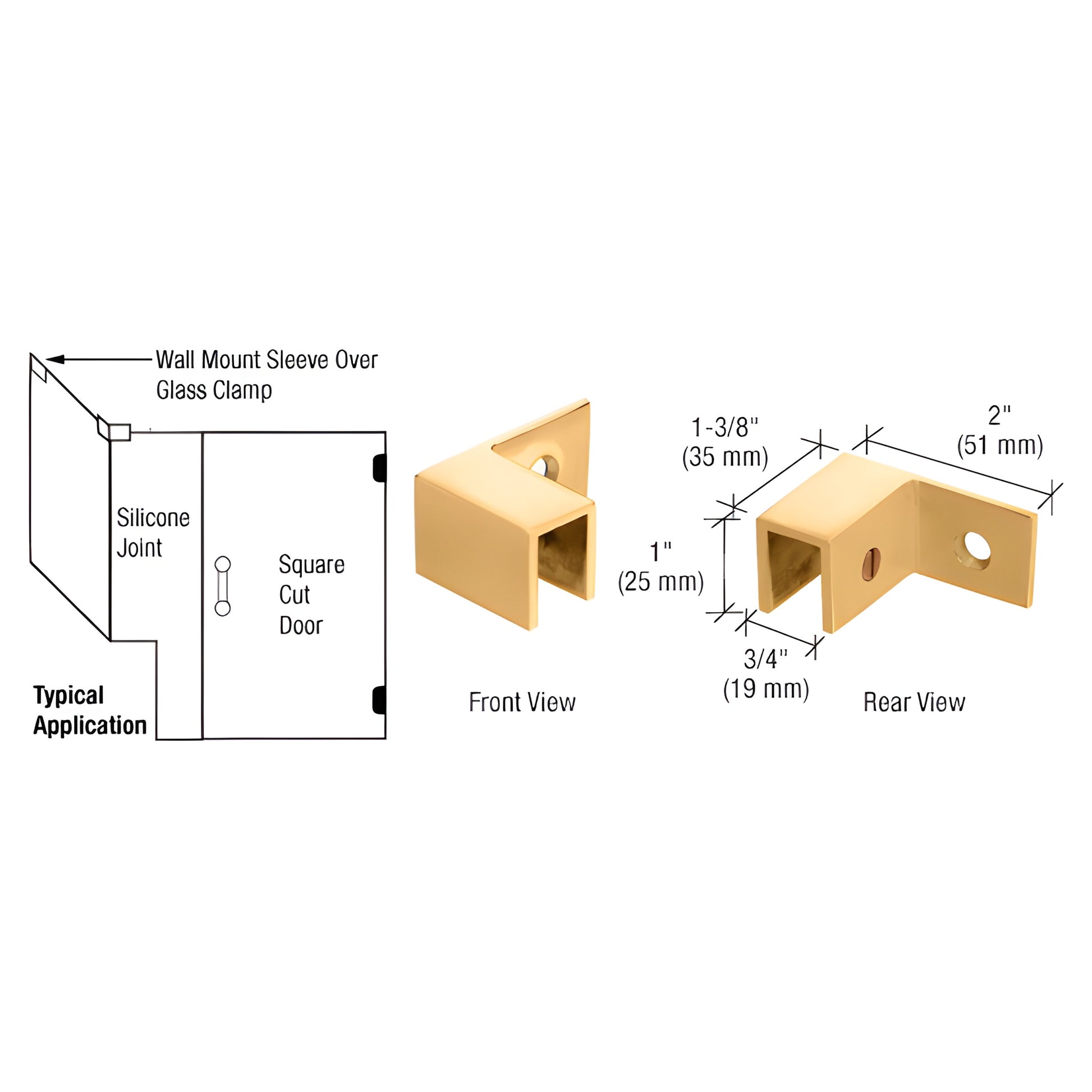

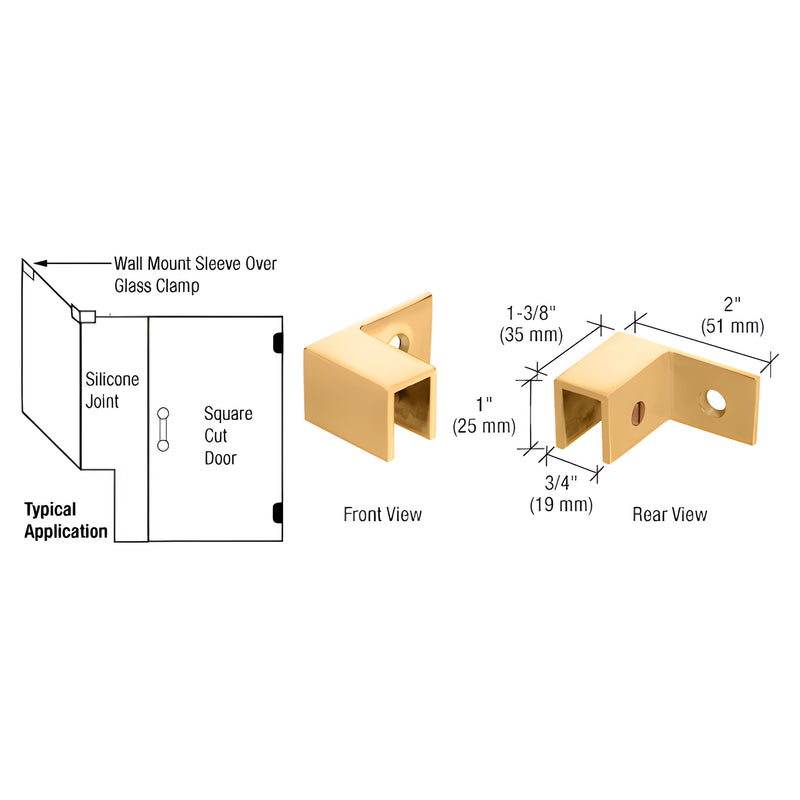

CRL Satin Brass Left-Hand Sleeve-Over Wall Mount Glass Clamp
CRL Satin Brass Left-Hand Sleeve-Over Wall Mount Glass Clamp
Regular price
$23.83 CAD
Regular price
Sale price
$23.83 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S0GC37LSB
Shipping Weight: 2.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Brass
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Handing
Left Hand
Material
Brass
Mounting Type
Wall Mount
Overview
- For 5/16" to 1/2" (8 to 12 mm) thick glass
- Use monolithic tempered glass
- Solid brass sleeve-over-glass clamp
- Secured to glass with nylon-tipped Allen set screws
- Assists with shear forces on glass panels
- Holds panels in position while sealant cures
- Left-handed as viewed from outside shower
CRL Sleeve Over Glass Clamps provide a mechanical fastener for frameless shower glass, offering temporary holding power and shear-force resistance without special glass fabrication. Ideal for left-handed frameless shower installations, these solid brass clamps secure panels during silicone cure time until the sealant provides long-term pull strength. Clamps are tightened using nylon-tipped Allen set screws for secure, glass-friendly installation.
P612** replacement screws
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No glass fabrication required
NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not designed to replace headers or a support bar. Contact CRL Frameless Shower Technical Sales for details.
Product Warning:
These clamps are not designed to take the place of headers or a support bar.
Brass Finish Advisory:
Although durable, brass can oxidize and develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance.
SKU: S0GC37LSB — Left-handed solid brass sleeve-over-glass clamp for 5/16"–1/2" tempered glass. Order now or contact CRL Frameless Shower Technical Sales for assistance.
