Product Details
- Clean Sleek Lines
- Use Monolithic Tempered Glass
- Round Shape is Especially Suited for Use with Our Hydroslide Sliding Unit and Vertical Post System
- Quick and Easy Installation
- Available in Several Finishes
- Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)

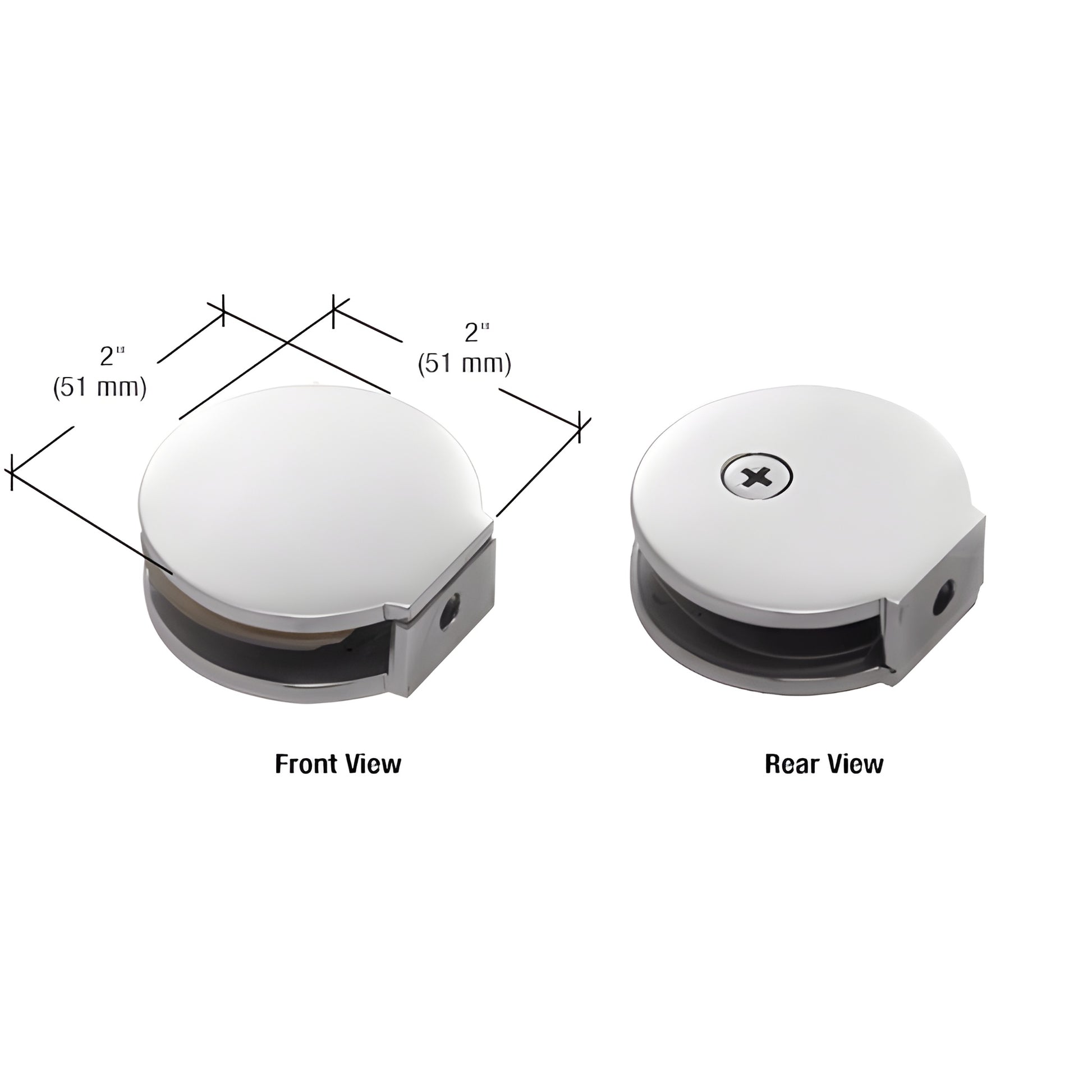

Our solid brass CRL Round Style Fixed Panel Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance and provide a clean looking alternative to U-Channel. The round shape of this Clamp looks especially attractive when securing fixed panels of glass used with our Hydroslide Sliding Glass System, Vertical Post System, or Hinge Series such as Rondo and Classique. All Clamps feature solid brass construction and a variety of finishes to match our Shower Door Hinges. Glass must be drilled with 5/8" or 3/4" (16 or 19 mm) diameter holes to accept Clamps. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra gaskets may be ordered separately.
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Mounting Screw and Clear Gaskets
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).
