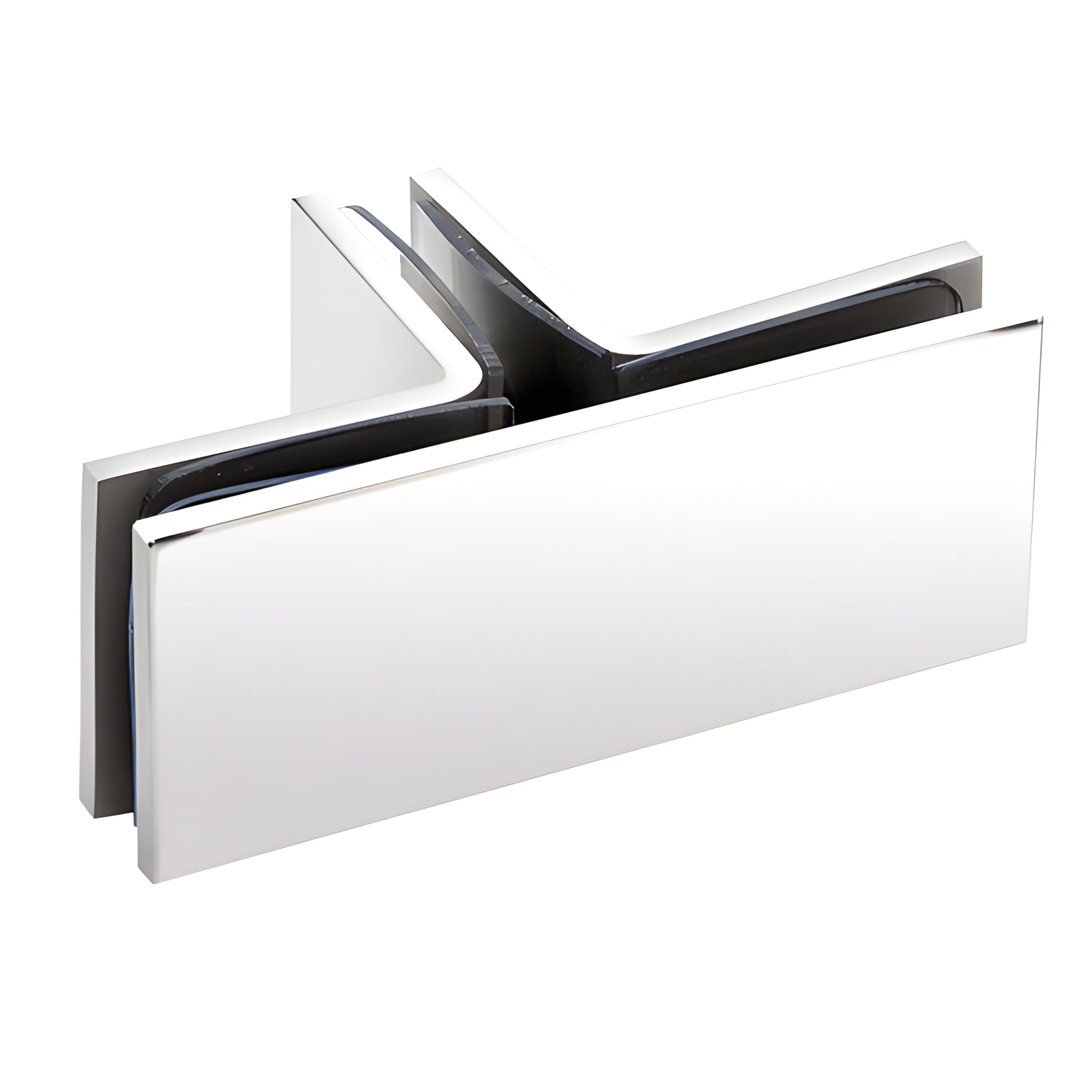

CRL Polished Chrome Square 90° Glass-to-Glass T-Clamp for Shower

• For 3/8" to 1/2" (10 to 12 mm) glass
• Secures fixed panels in frameless shower enclosures and glass partitions
• Solid brass construction for corrosion resistance
• Special 90° T-junction design connects two or three fixed glass panels
• Glass fabrication required to accommodate clamps (see specifications)
• Use with monolithic tempered glass

CRL Square 90° Glass-to-Glass T-Junction Clamp (SKU: SGC90TCH) — sharp squared-off corners and a compact profile make this solid-brass 90 degree glass-to-glass T-junction clamp ideal for frameless shower enclosure assemblies and interior glass partition systems. Drawings and templates for precise installation are available from CRL.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel plus a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

Order the SGC90TCH solid brass 90° T-junction clamp for reliable, low-profile connections in frameless shower enclosures and glass partition projects. Contact us to request templates or installation drawings.
