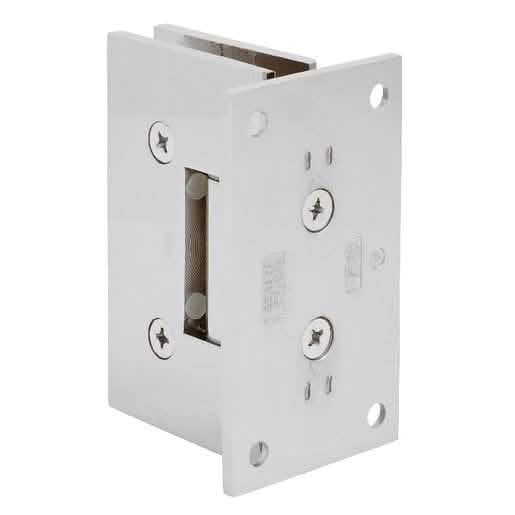

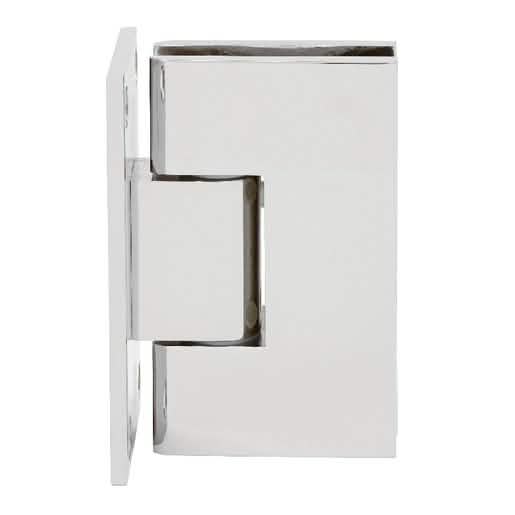

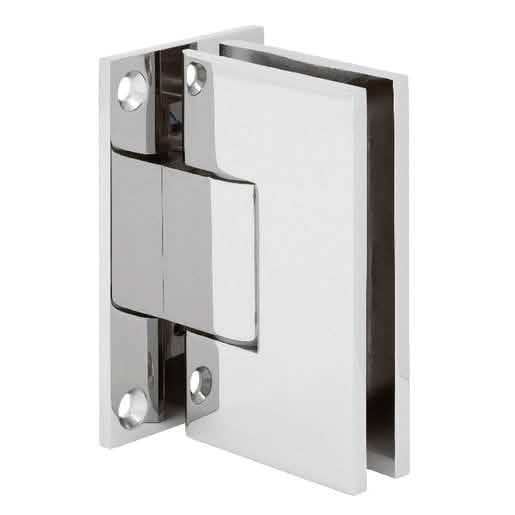

CRL Polished Chrome Victoria 5 Degree Pre-Set Wall Mount Full Back Plate Hinge
CRL Polished Chrome Victoria 5 Degree Pre-Set Wall Mount Full Back Plate Hinge
Regular price
$154.97 CAD
Regular price
Sale price
$154.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# VCT537CH
Shipping Weight: 2.97 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.97 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| 5 Degree Pre-Set Yes | No |
| Back | Plate Full |
| Construction | Solid |
| Finish/Color | Polished Chrome |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |

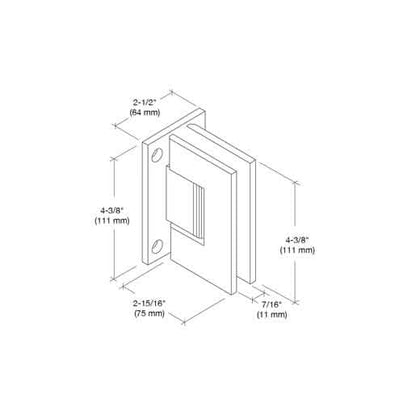

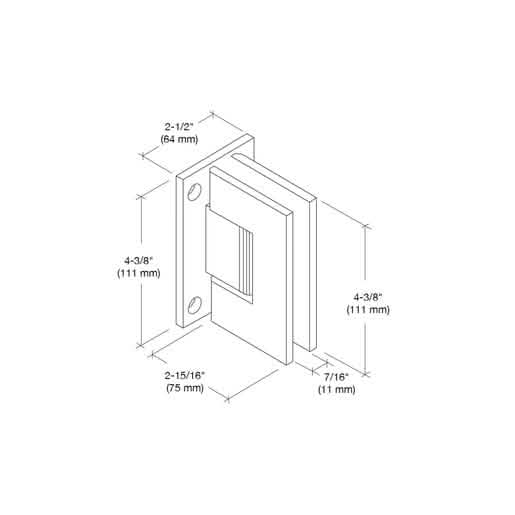

| Height 4-3/8 in. | (111 mm) |
| Material | Brass |
| Maximum Door Weight 140 lbs. | (63.5 kg) |
| Maximum Door Width 39 in. | (991 mm) |
| Mounting | Type Wall Mount |
| Self-Centering Yes | Victoria |
| Width 2-15/16 in. | (75 mm) |
Overview
The CRL Victoria Series Hinges are ideal for supporting wider and heavier shower doors, capable of handling a maximum door weight of 140 lbs.
(64 kg) and a width of up to 39" (1 m) with just two hinges.
Designed for use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass, these hinges feature an integrated safety interlock for enhanced glass panel control.
The 5-degree pre-set model ensures a tighter closure into the shower interior, making it an excellent choice for heavier, wider shower doors.
For exact shipping weights and costs, please contact CRL Customer Service prior to placing your order, as colors may vary based on your monitor's settings.
(64 kg) and a width of up to 39" (1 m) with just two hinges.
Designed for use with 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass, these hinges feature an integrated safety interlock for enhanced glass panel control.
The 5-degree pre-set model ensures a tighter closure into the shower interior, making it an excellent choice for heavier, wider shower doors.
For exact shipping weights and costs, please contact CRL Customer Service prior to placing your order, as colors may vary based on your monitor's settings.
