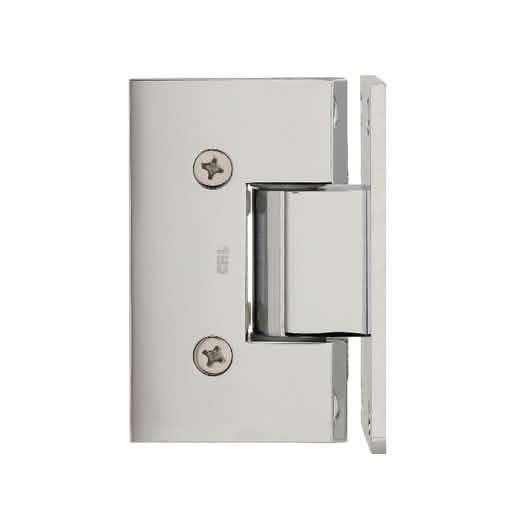

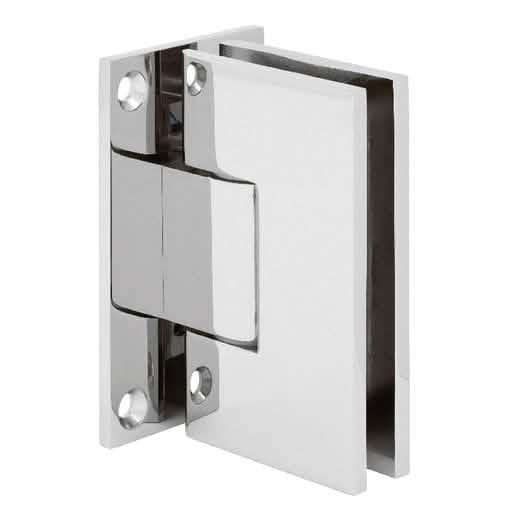

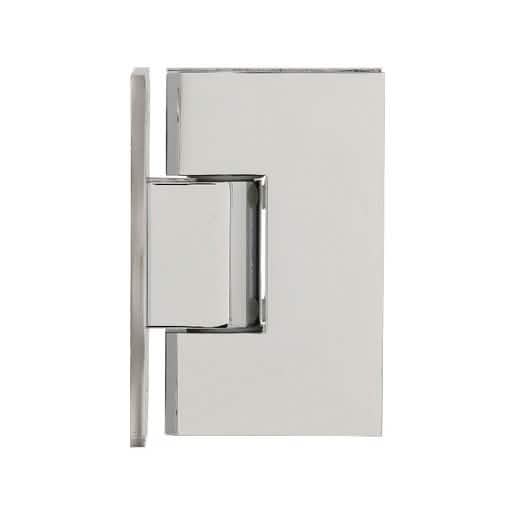

CRL Polished Chrome Victoria Series Wall Mount Full Back Plate Hinge
CRL Polished Chrome Victoria Series Wall Mount Full Back Plate Hinge
Regular price
$154.97 CAD
Regular price
Sale price
$154.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# VCT037CH
Shipping Weight: 3.025 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 3.025 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

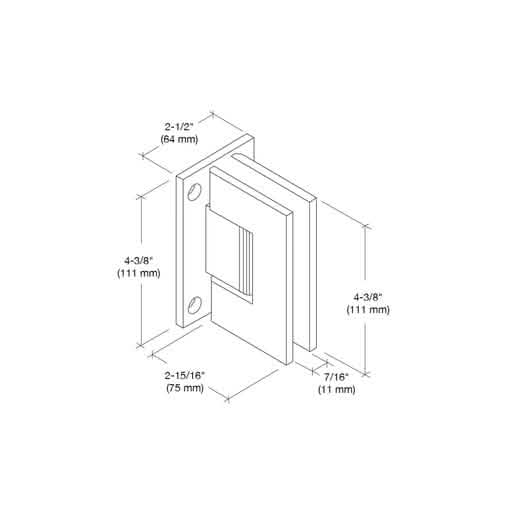

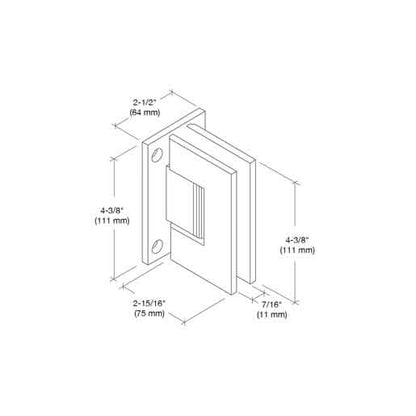

| 5 Degree Pre-Set No | No |
| Back | Plate Full |
| Finish/Color | Polished Chrome |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height 4-3/8 in. | (111 mm) |
| Material | Brass |
| Maximum Door Weight 140 lbs. | (63.5 kg) |
| Maximum Door Width 39 in. | (991 mm) |
| Mounting | Type Wall Mount |
| Self-Centering Yes | Victoria |
| Width 2-15/16 in. | (75 mm) |
Overview
The CRL Victoria Series Hinges are an excellent choice for those looking to support heavier and wider shower doors, accommodating up to 140 lbs.
(64 kg) and a door width of 39" (1 m) with just two hinges.
These hinges are designed to enhance glass panel control with an integrated safety interlock and are available in wall mount and 180-degree glass-to-glass models, suitable for 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass.
Constructed from solid brass, they feature a frameless aesthetic, increased self-centering force, and enhanced durability thanks to heat-treated stainless steel springs.
Stocked in six popular finishes with custom options, they are ideal for residential or hotel use, but ensure you do not exceed the maximum capacities and use only the provided template for installation.
For further details or shipping weight inquiries, contact CRL Customer Service.
(64 kg) and a door width of 39" (1 m) with just two hinges.
These hinges are designed to enhance glass panel control with an integrated safety interlock and are available in wall mount and 180-degree glass-to-glass models, suitable for 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass.
Constructed from solid brass, they feature a frameless aesthetic, increased self-centering force, and enhanced durability thanks to heat-treated stainless steel springs.
Stocked in six popular finishes with custom options, they are ideal for residential or hotel use, but ensure you do not exceed the maximum capacities and use only the provided template for installation.
For further details or shipping weight inquiries, contact CRL Customer Service.
