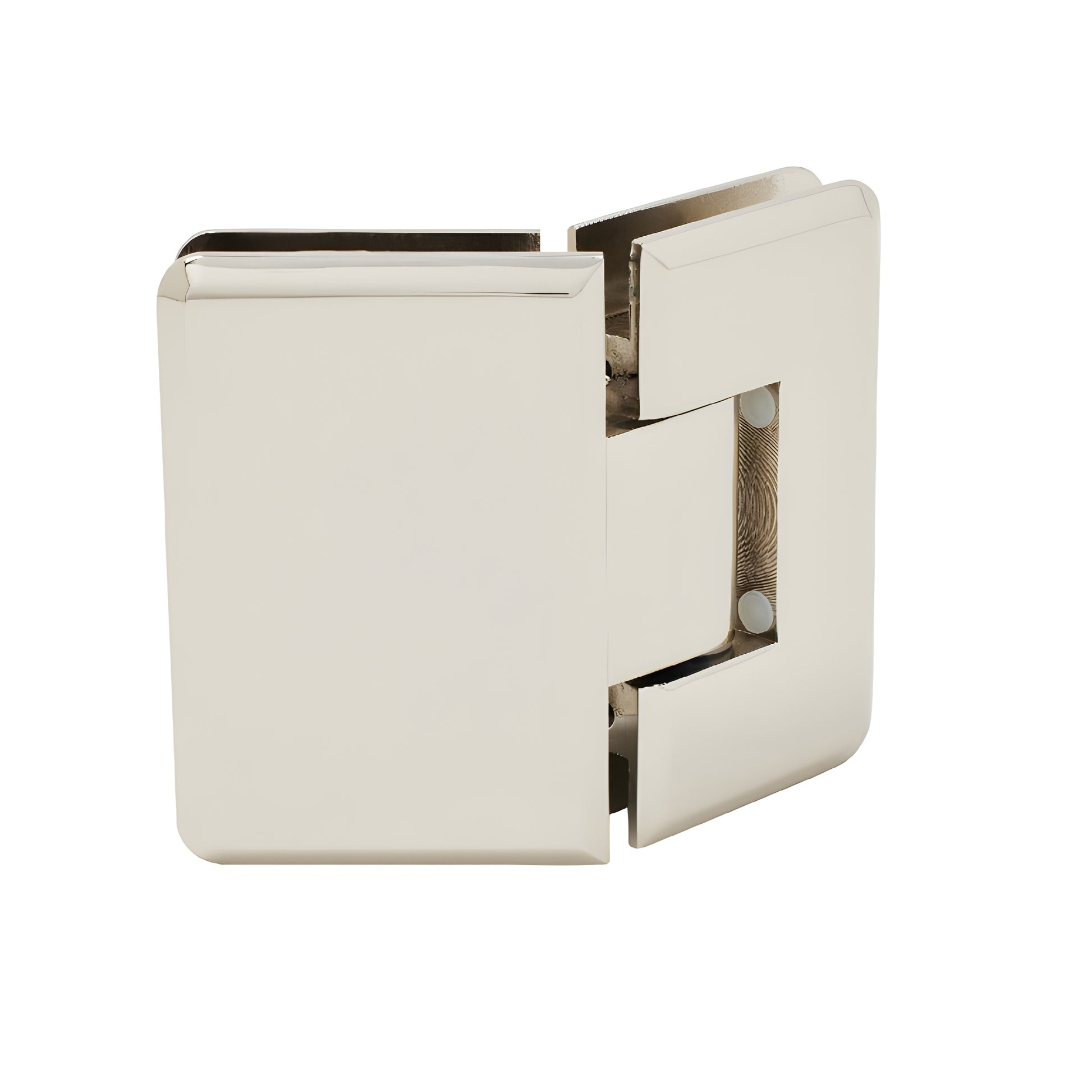

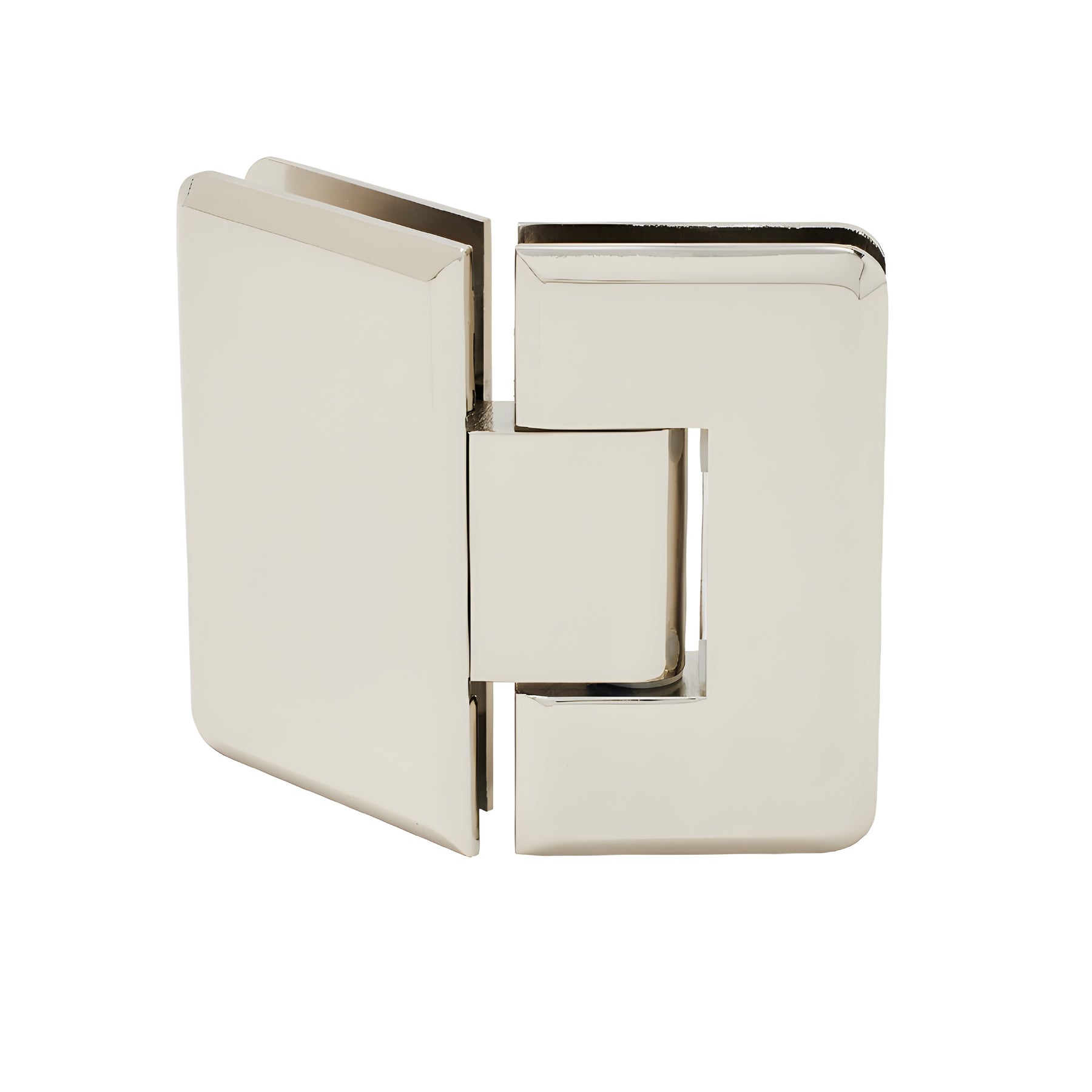

CRL Cologne 045 135° Glass-to-Glass Shower Hinge Polished Nickel

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several durable finishes
• 135º glass-to-glass pivot for frameless shower doors
• Use monolithic tempered safety glass

CRL Cologne Hinges feature radius corners and beveled edges for a sleek, modern look similar to Vienna hinges. Designed for wider, heavier frameless shower doors, Cologne Hinges use two internal steel pins to provide mounting flexibility: leave both pins in place for secure “mouse-ears” cut-outs, or remove them for increased adjustability and compatibility with rectangular, square-corner cut-outs (including some competitive templates). STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with the 90º side active; Pre-Set models are set to 85º for a 5º tighter closure into the shower interior. The pin can be rotated to change the setting. CUSTOM PIVOT PIN: Custom pivot pins are available up to 45º for off-angle installations where the wall and door do not meet at 90º. Load Capacity: Using two hinges on 3/8"–1/2" (10–12 mm) glass: holds up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm). Using three hinges on 3/8"–1/2" (10–12 mm) glass: holds up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm). SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass (durable, corrosion-resistant shower door hinge)
Hinge Swings: 90º in and 90º out
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Except C0L092, which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)
Custom finishes available—contact the CRL Technical Sales Department for powder coat, specialty plating, or custom color options. Product Warning:
CRL shower door hinges are designed for residential and hotel shower use. For other applications,
