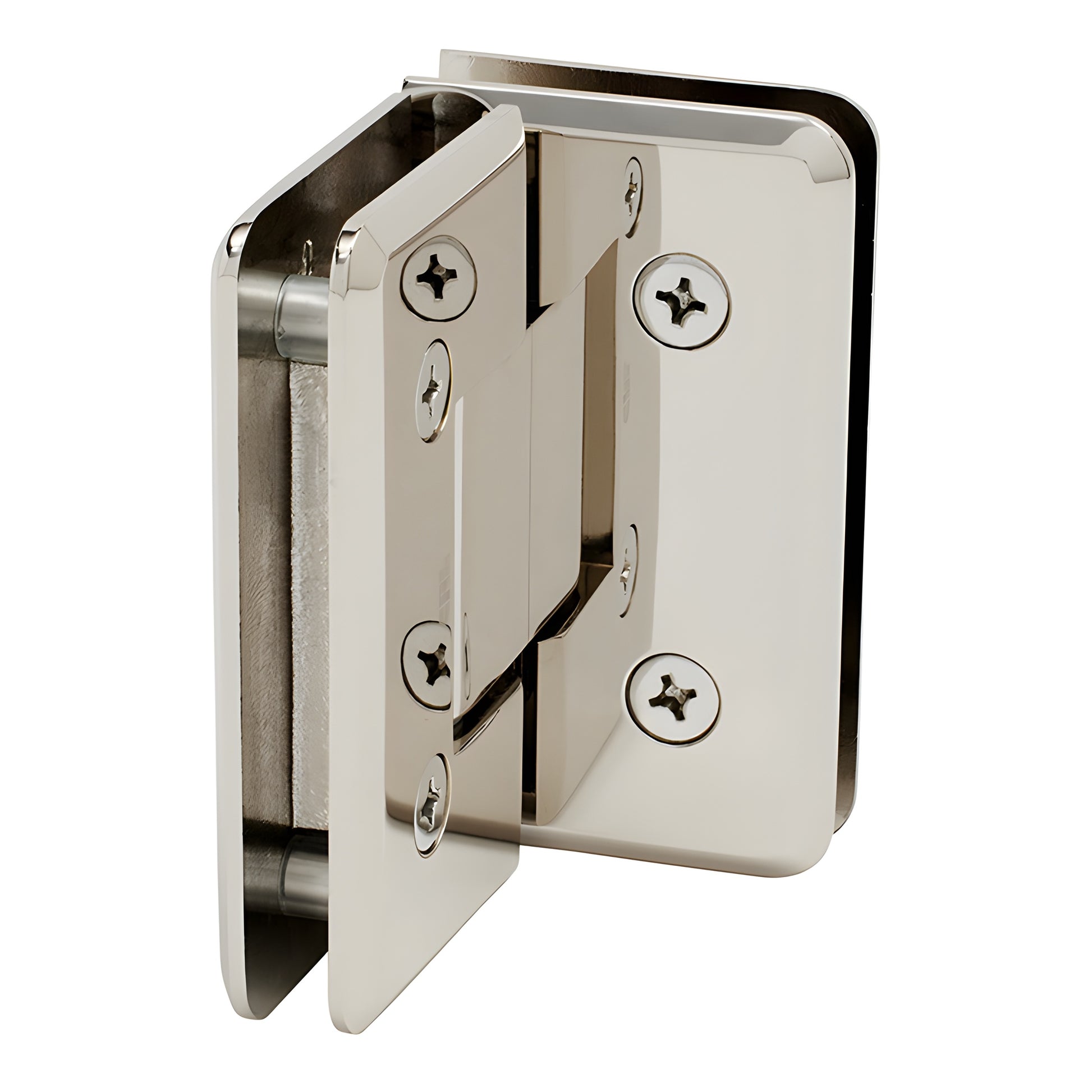

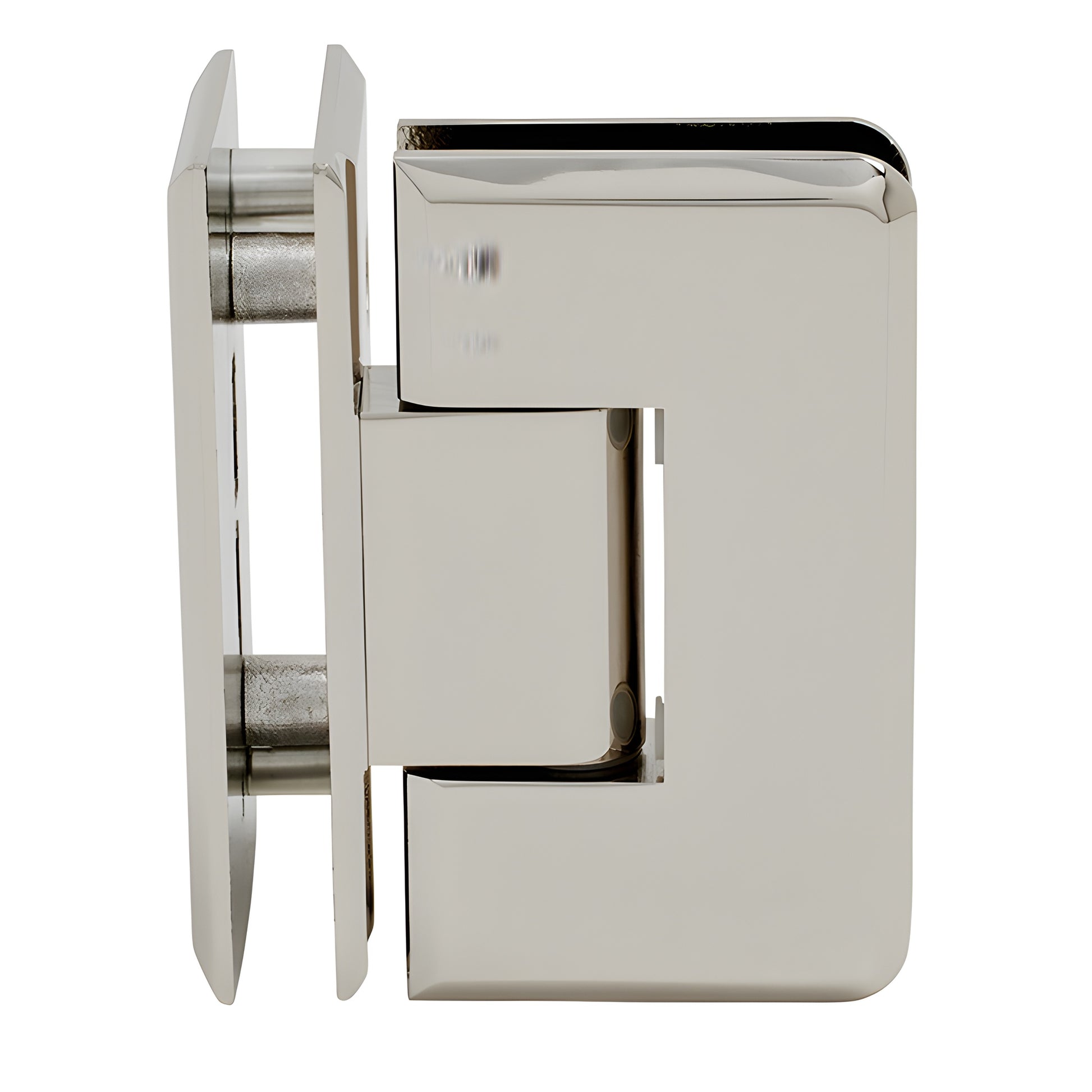

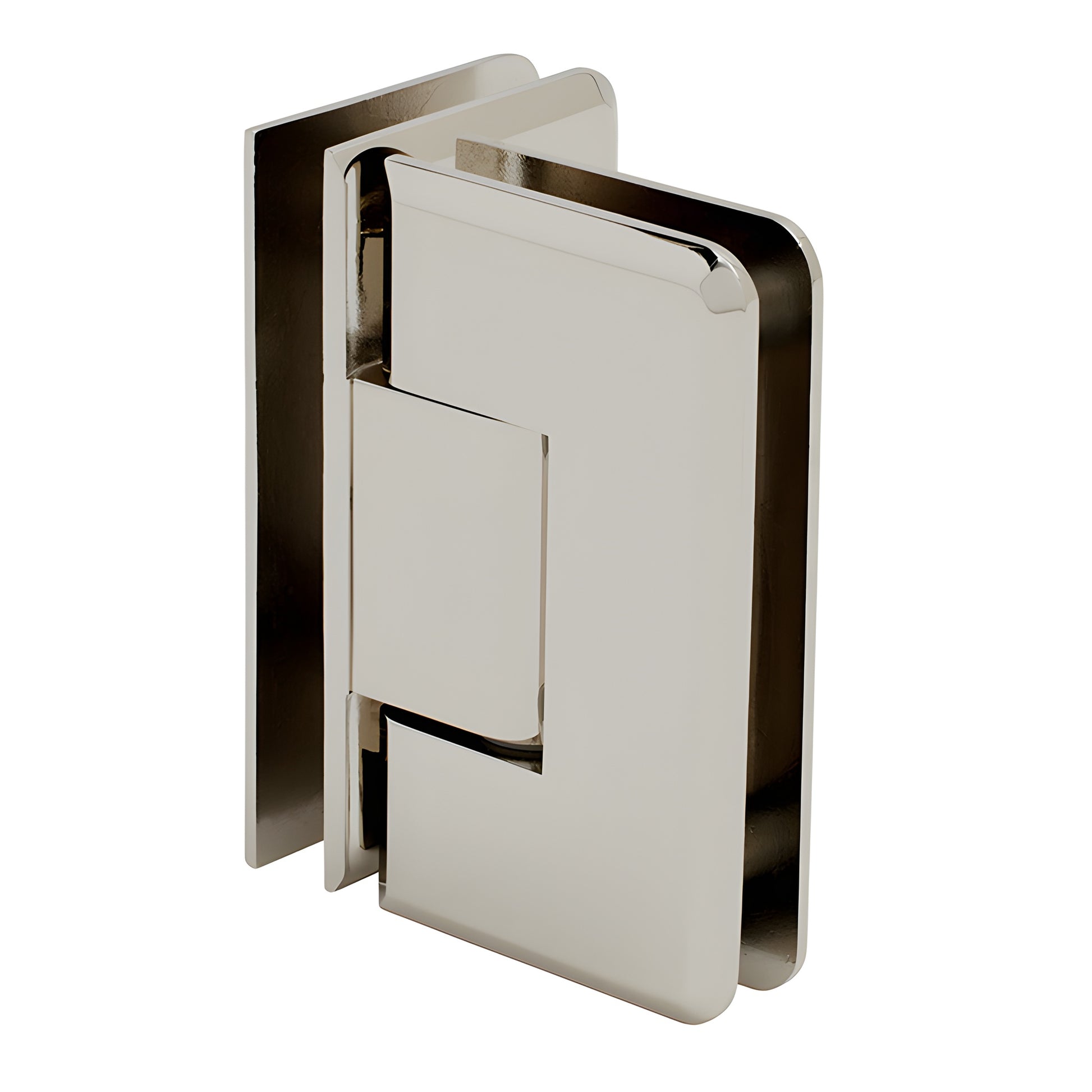

CRL Cologne 092 Polished Nickel 90° Glass-to-Glass Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes on request)
• 90º glass-to-glass hinge for shower doors
• Use with monolithic tempered glass

CRL Cologne Hinges (SKU: C0L092PN) combine radius corners and beveled edges for a sleek, modern look. Designed as a heavy-duty brass shower door hinge, Cologne Hinges support wider, heavier doors that standard hinges cannot. Two internal steel pins give installation flexibility: leave both pins in place for CRL "mouse-ears" cut-outs for added safety, or remove the pins to increase adjustability and fit rectangular/square cut-outs (including some competitive templates).

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with 90º on one side and 85º on the other. Standard models ship set to 90º; Pre-Set models ship at 85º for a 5º tighter closure into the shower. The pin can be rotated to change the closure angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45º) when the standard 5º adjustment does not achieve the desired closure.

LOAD CAPACITY:
Using two hinges with 3/8" to 1/2" glass (10–12 mm): supports up to 110 lbs (50 kg) with maximum door width 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10–12 mm): supports up to 140 lbs (63 kg) with maximum door width 36" (914 mm).

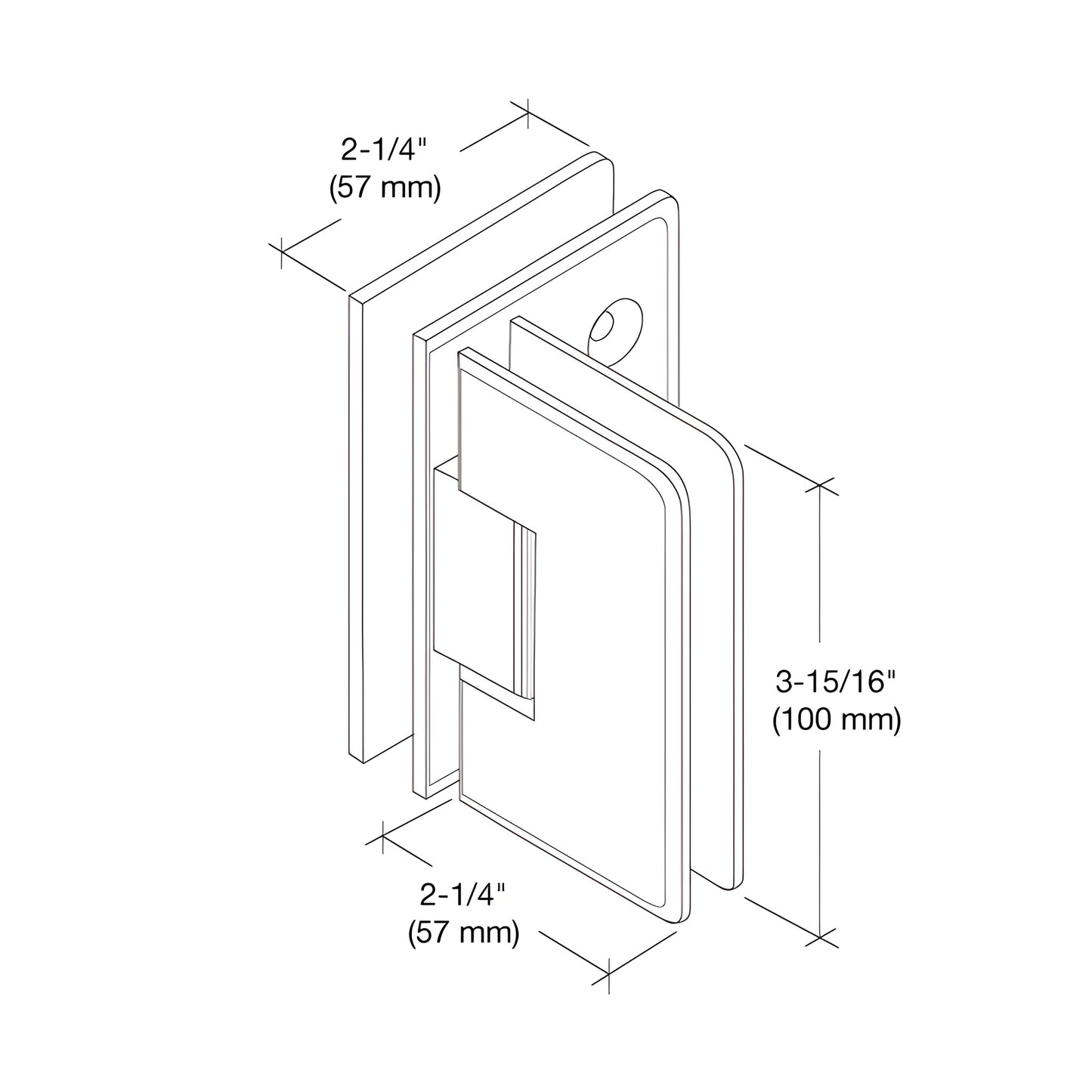

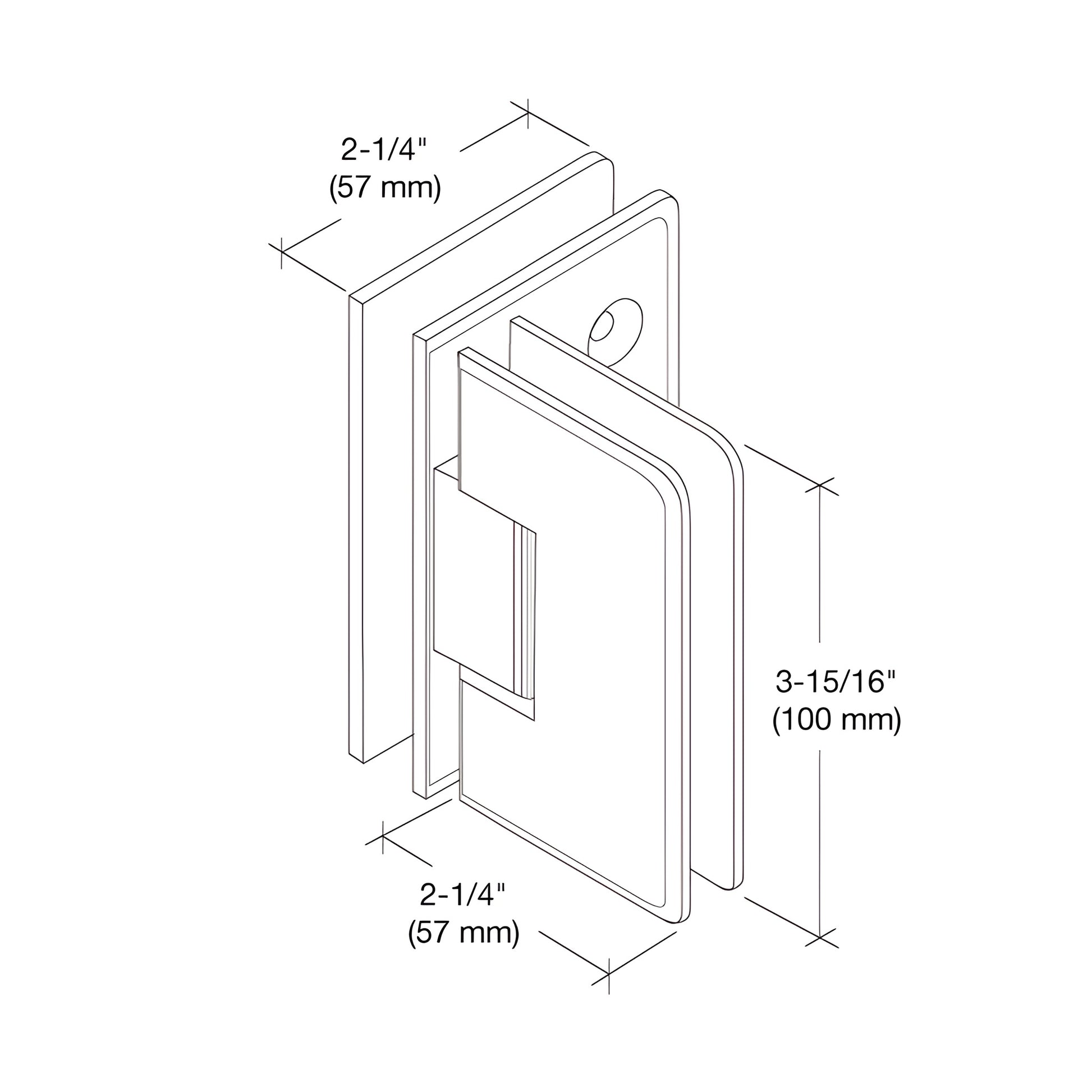

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out (self-centering within 15º of closed position)
Cut-Out Required: Except C0L092 — requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request; contact the CRL Technical Sales Department for details.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—CRL cut-out dimensions may differ from other brands.
