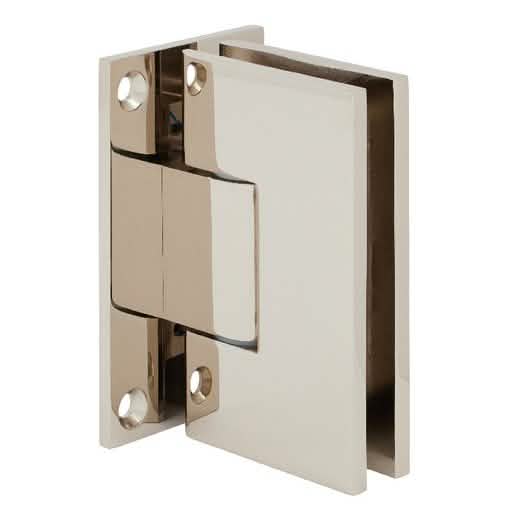

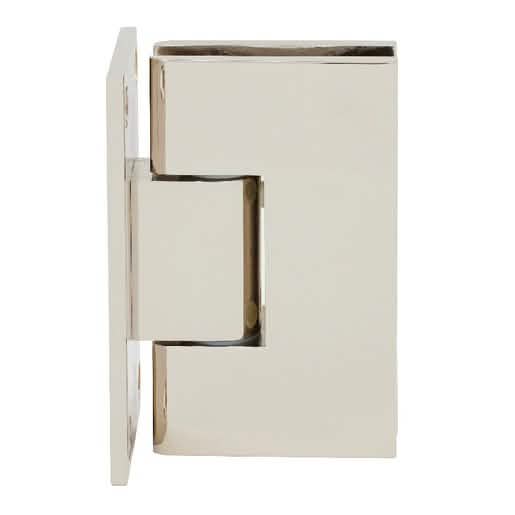

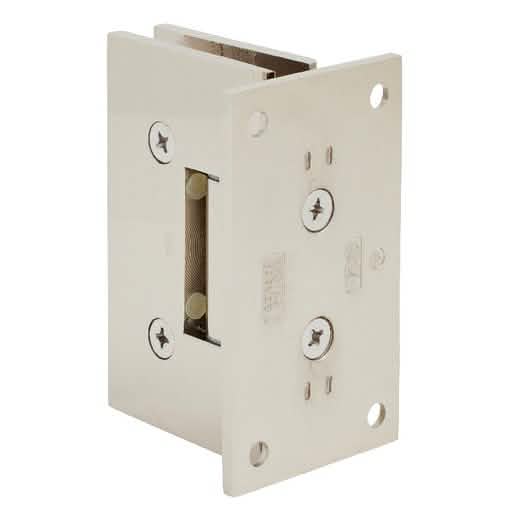

CRL Polished Nickel Victoria Series Wall Mount Full Back Plate Hinge
CRL Polished Nickel Victoria Series Wall Mount Full Back Plate Hinge
Regular price
$154.97 CAD
Regular price
Sale price
$154.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# VCT037PN
Shipping Weight: 3.018 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 3.018 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

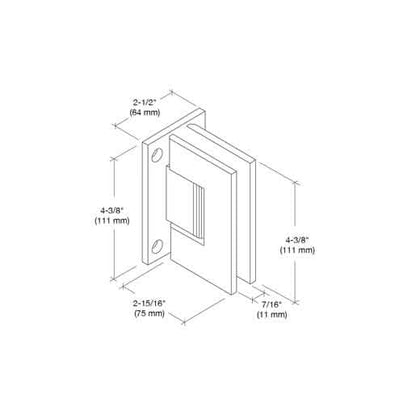

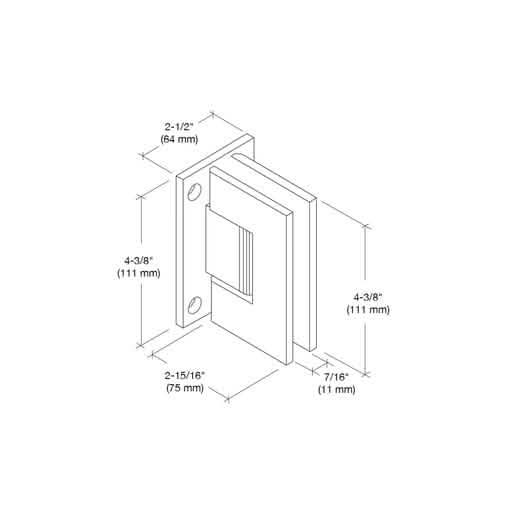

| 5 Degree Pre-Set No | No |
| Back | Plate Full |
| Construction | Solid |
| Finish/Color | Polished Nickel |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |
| Height 4-3/8 in. | (111 mm) |
| Material | Brass |
| Maximum Door Weight 140 lbs. | (63.5 kg) |
| Maximum Door Width 39 in. | (991 mm) |
| Mounting | Type Wall Mount |
| Self-Centering Yes | Victoria |
| Width 2-15/16 in. | (75 mm) |
Overview
The CRL Victoria Series Hinges are the ideal solution for heavier and wider shower doors, offering robust support for doors up to 140 lbs.
and 39 inches wide with just two hinges.
Designed for use with 3/8" to 1/2" thick tempered safety glass, these hinges feature an integrated safety interlock for enhanced glass panel control and are available in both wall mount and 180-degree glass-to-glass models.
With a solid brass construction and a frameless aesthetic that minimizes hardware, these hinges provide exceptional holding power, increased self-centering force, and enhanced durability thanks to heat-treated stainless steel springs.
Available in six popular finishes, with custom options, these hinges ensure your shower door stays secure and stylish.
and 39 inches wide with just two hinges.
Designed for use with 3/8" to 1/2" thick tempered safety glass, these hinges feature an integrated safety interlock for enhanced glass panel control and are available in both wall mount and 180-degree glass-to-glass models.
With a solid brass construction and a frameless aesthetic that minimizes hardware, these hinges provide exceptional holding power, increased self-centering force, and enhanced durability thanks to heat-treated stainless steel springs.
Available in six popular finishes, with custom options, these hinges ensure your shower door stays secure and stylish.
