CRL Polished SS Glass Patch Kit for Transom & 2 Sidelites - No Lock
CRL Polished SS Glass Patch Kit for Transom & 2 Sidelites - No Lock
Regular price
$585.38 CAD
Regular price
Sale price
$585.38 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE5PS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Single With Transom-Sidelite
Door Type
A Style Glass Door
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- 'All-Glass' Look — ideal for frameless glass storefronts and interior glass doors
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks (lock option includes EUR205 patch lock; cylinders, thumbturns, and keepers ordered separately)
CRL PHE5 European Door Kits (SKU: PHE5PS) include the hardware to complete a free-swinging pivot door with fixed transom and two sidelites (glass and any additional supports for transom/sidelites not included). Pivot setback: 2-9/16" (65 mm). Compatible with a separately ordered floor closer with tapered spindle. This kit supports frameless and minimal-frame designs for a true all-glass aesthetic and reliable commercial performance.

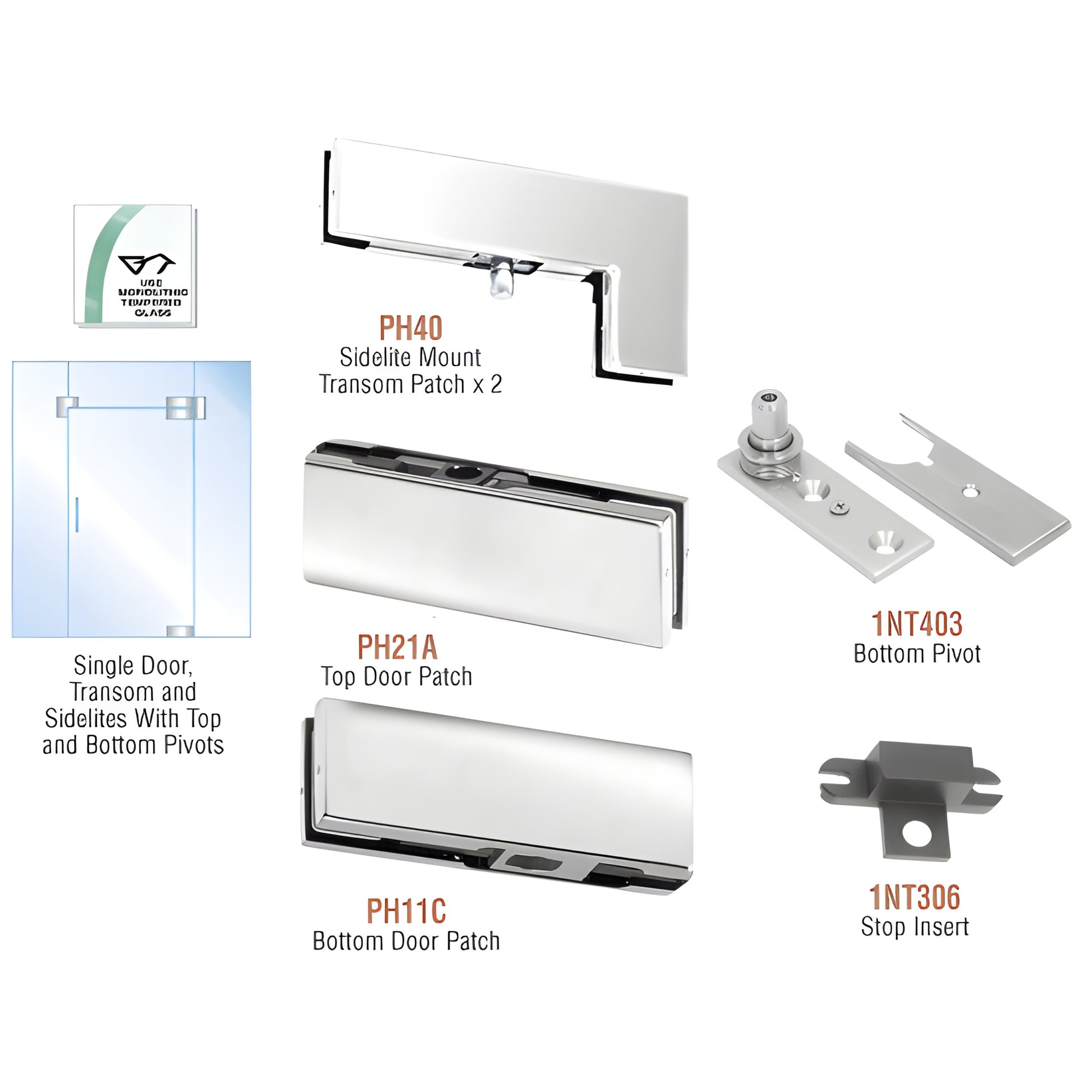

Kit Contains:
- 2 - PH40 Sidelite Mount Transom Patches
- 1 - PH21A Top Door Patch
- 1 - PH11C Bottom Door Patch
- 1 - 1NT306 Stop Insert
- 1 - 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Key differentiators: true all-glass appearance, compatible with 10 or 12 mm tempered glass, optional locking, and complete pivot hardware for sidelites and transom. Order SKU PHE5PS or contact us for help specifying glass cutouts and additional supports.
Ready to specify your European pivot glass door kit? Contact CRL or add SKU PHE5PS to your cart.
