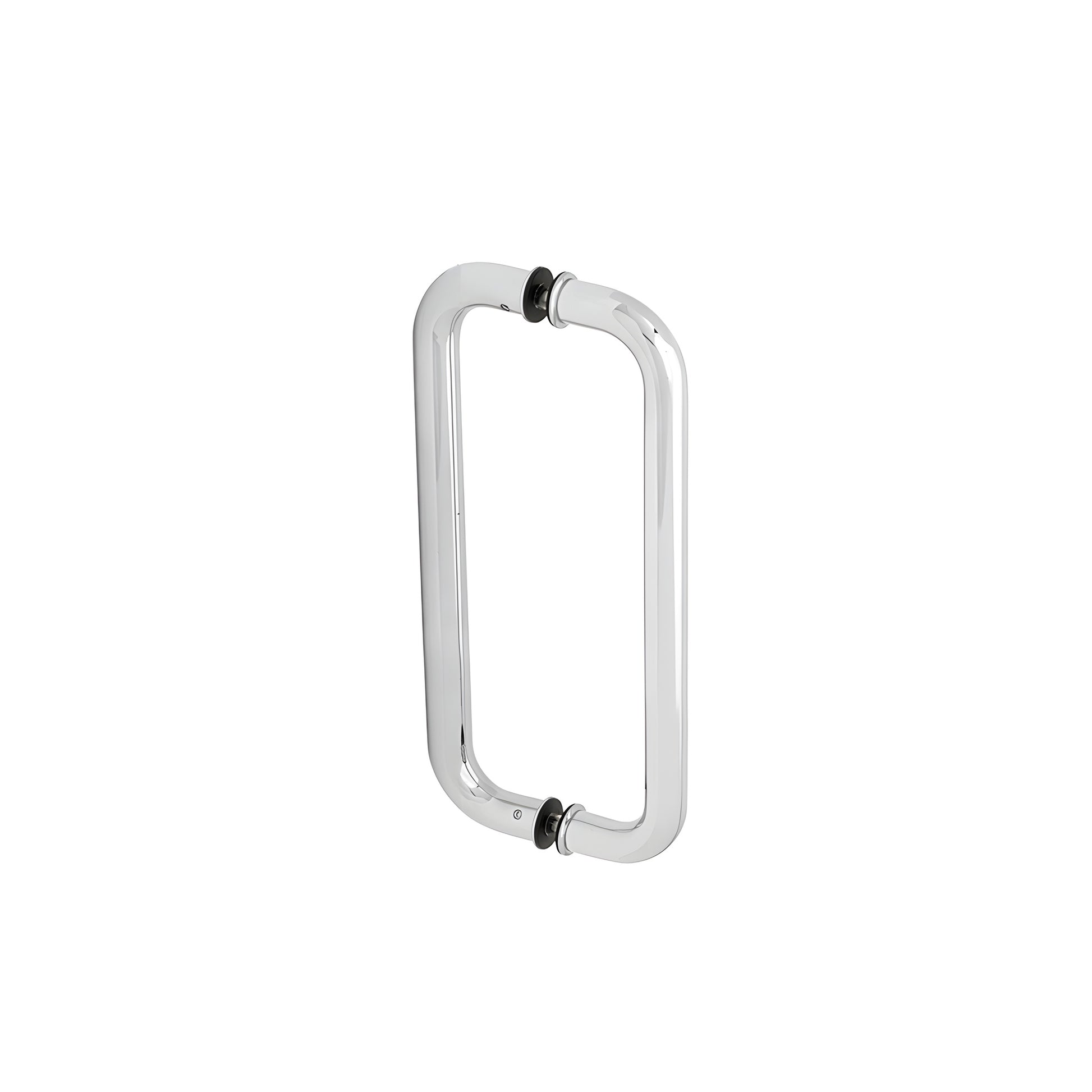

CRL Polished Stainless 10" Back-to-Back Glass Mounted Standard Pull Handle
CRL Polished Stainless 10" Back-to-Back Glass Mounted Standard Pull Handle
Regular price
$120.90 CAD
Regular price
Sale price
$120.90 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CM10X10PS
Shipping Weight: 12.48 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 12.48 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Diameter | 1 in. (25 mm) |
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/8 in. To 3/4 in. (10 mm To 19 mm) |
| Material | Stainless Steel |
| Mounting Center To Center 10 in. | (254 mm) |
| Mounting Hole Diameter 5/8 in. | (16 mm) |
| Mounting | Type Back-to-Back |
| Style Washer Diameter 1-1/4 in. | (32 mm) |
| Style | Washers Yes |
Overview

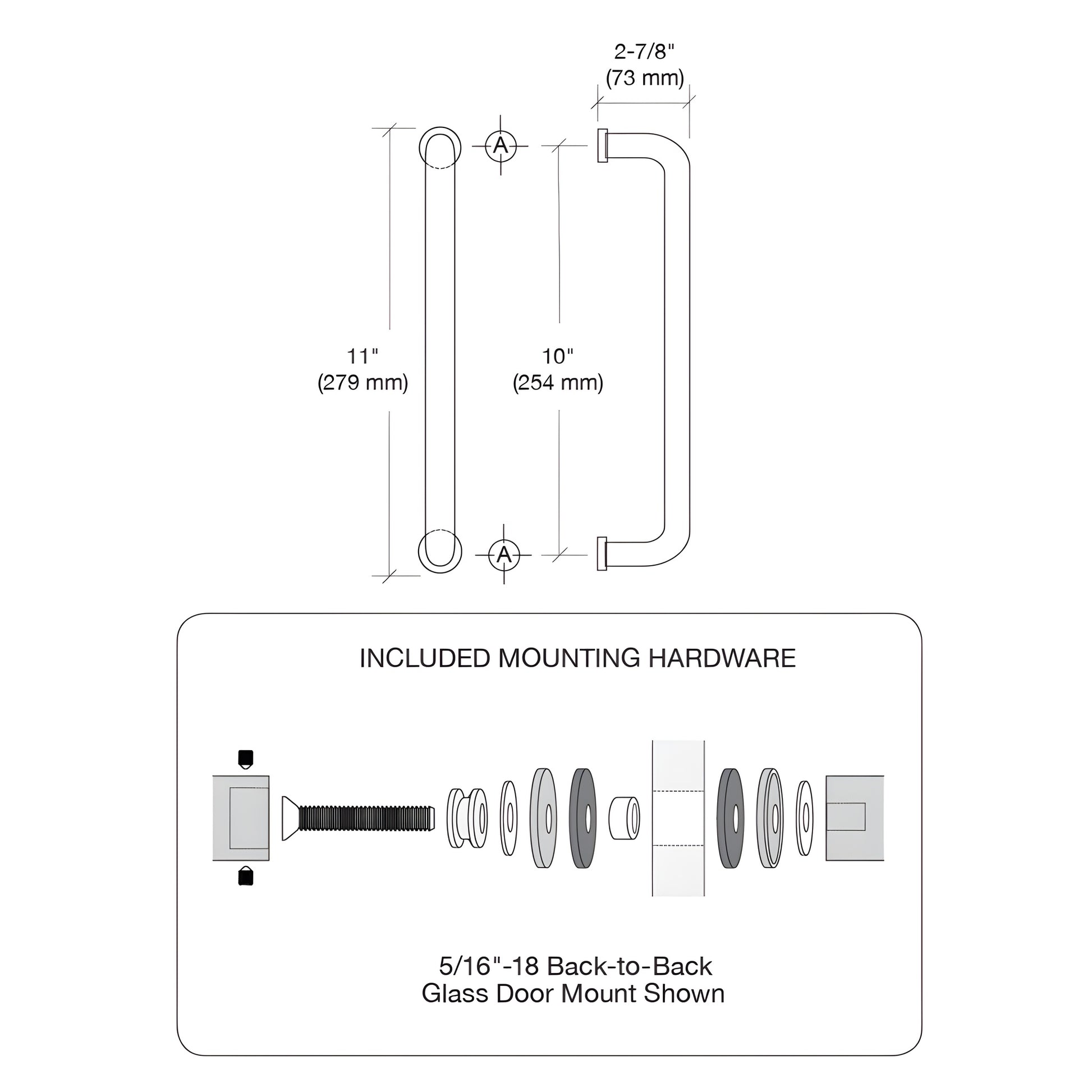

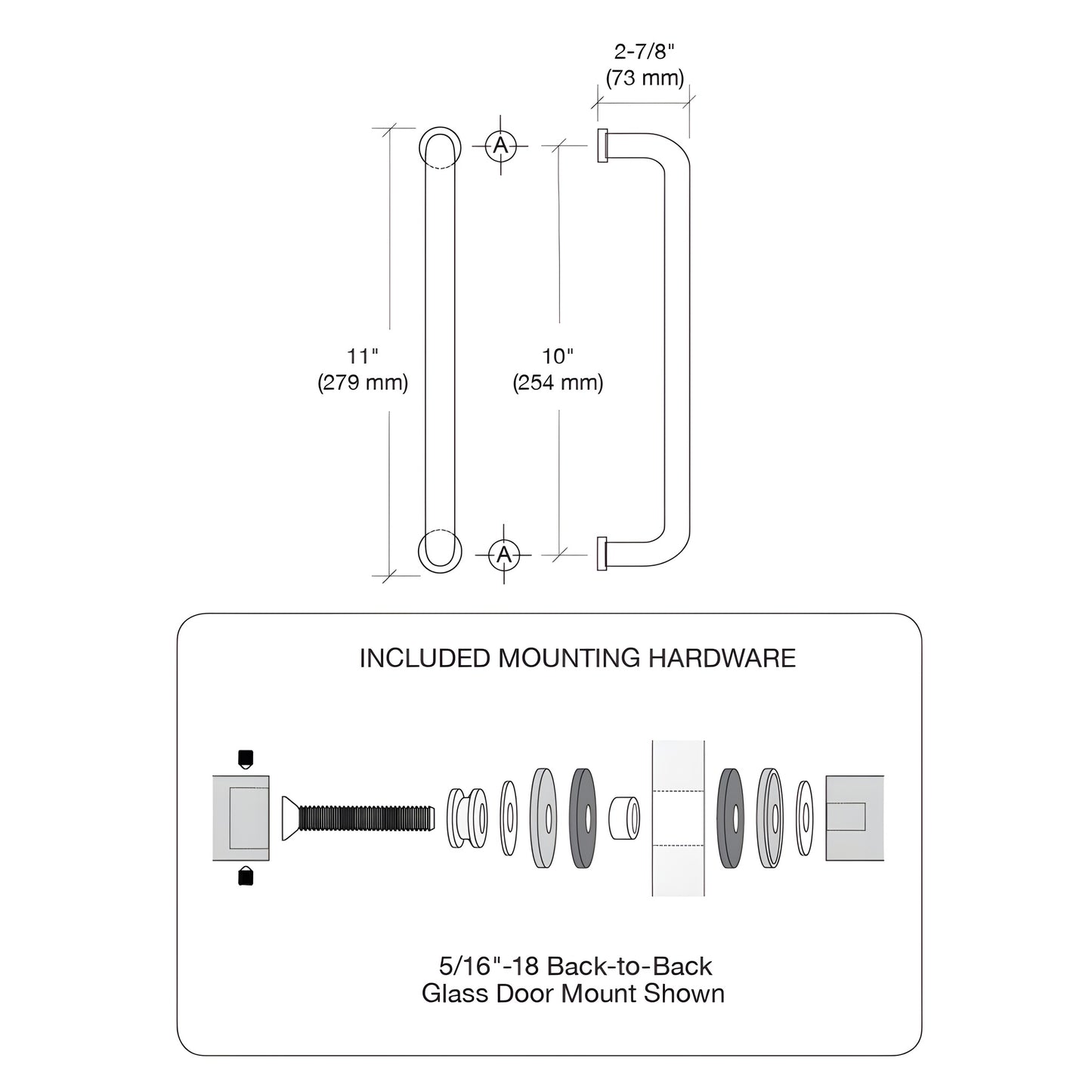

The CRL Glass Mounted Standard Pull Handle is designed for use with glass thicknesses ranging from 3/8" to 3/4" (10 to 19 mm) and is constructed from durable stainless steel or brass tubing.
Available in three sizes and up to five architectural finishes, this pull handle includes matching finish metal washers and through-bolts for secure mounting.
Ensure optimal performance by using monolithic tempered glass, and note the requirement for two 5/8" (16 mm) diameter holes for installation.
For more information on maintenance and care, refer to the Stainless Steel Advisory in the Technical References section.
Available in three sizes and up to five architectural finishes, this pull handle includes matching finish metal washers and through-bolts for secure mounting.
Ensure optimal performance by using monolithic tempered glass, and note the requirement for two 5/8" (16 mm) diameter holes for installation.
For more information on maintenance and care, refer to the Stainless Steel Advisory in the Technical References section.
