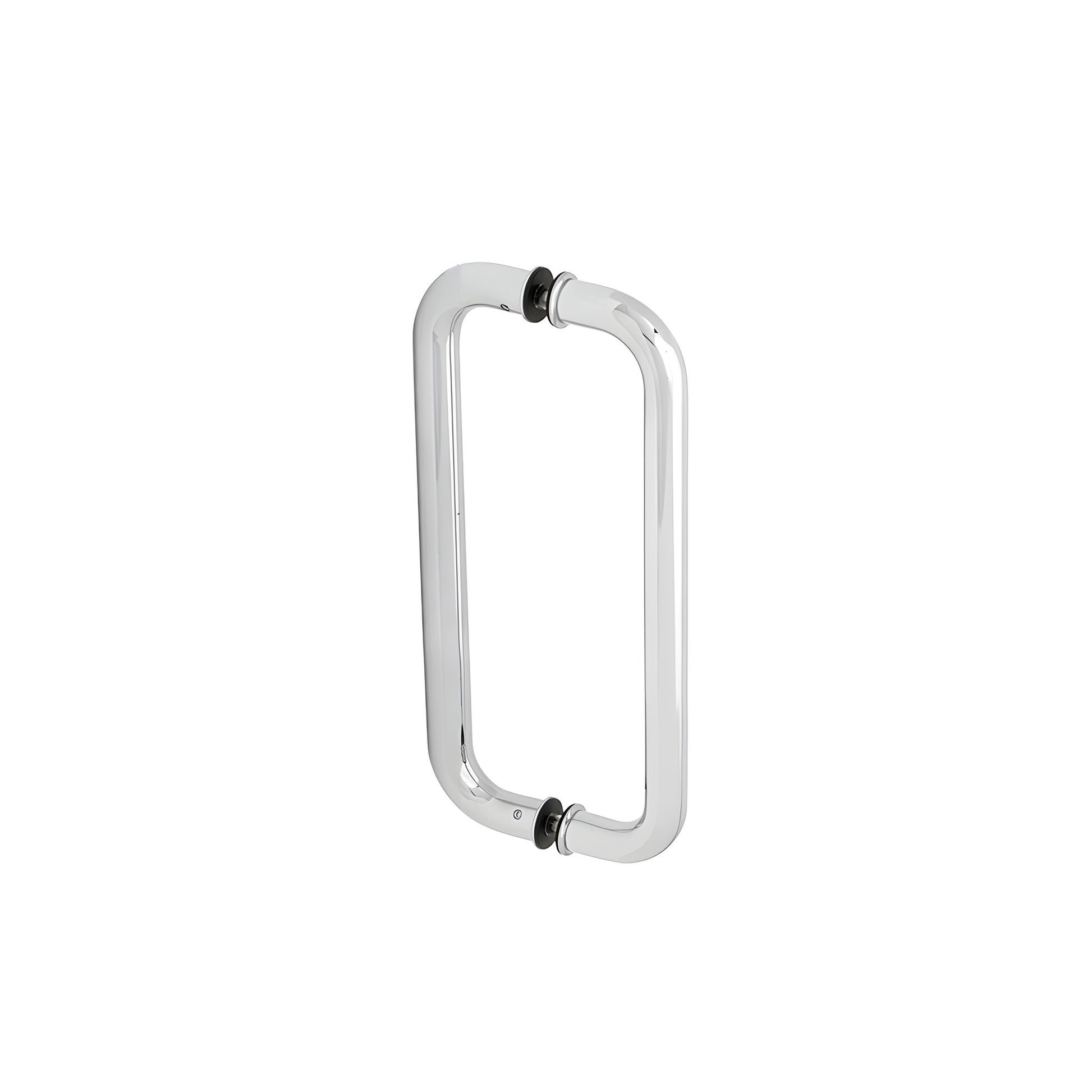

CRL Polished Stainless 10" Solid Glass Mounted Standard Pull Handle
CRL Polished Stainless 10" Solid Glass Mounted Standard Pull Handle
Regular price
$342.33 CAD
Regular price
Sale price
$342.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CS10X10PS
Shipping Weight: 5.95 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 5.95 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

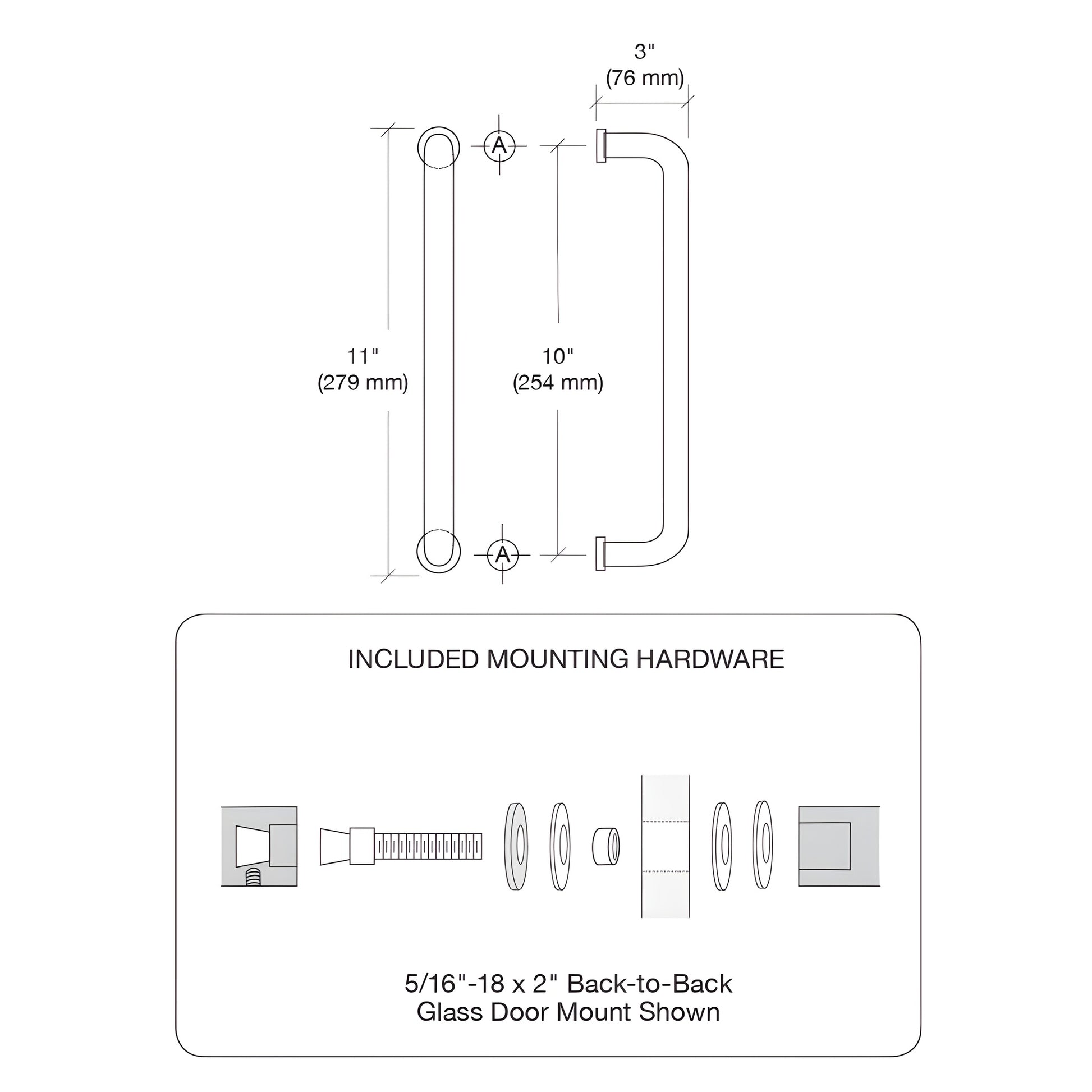

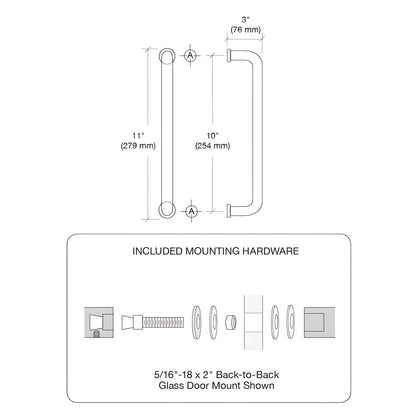

| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/8 in. To 3/4 in. (10 mm To 19 mm) |
| Mounting Center To Center 10 in. | (254 mm) |
| Mounting Hole Diameter 5/8 in. | (16 mm) |
| Mounting | Type Back-to-Back |
| Style Washer Diameter 1-1/4 in. | (32 mm) |
| Style | Washers Yes |
Overview
The CRL Glass Mounted Standard Pull Handle is designed for use with 3/8" to 3/4" (10 to 19 mm) thick glass and is constructed from 1" (25 mm) solid stainless steel or brass.
This pull handle is available in various sizes and finishes and is specifically intended for monolithic tempered glass.
The product requires two 5/8" (16 mm) diameter holes for installation and includes through-bolts, matching metal washers, and rubber gaskets for secure glass mounting.
Please note that CRL Cat.
No.
TB2CH, TB4CH, and F40WK are not compatible with the "CS" Series handles.
Regular maintenance is recommended for stainless steel to prevent rust and maintain its finish.
For detailed specifications, shipping inquiries, and further assistance, contact CRL Customer Service.
This pull handle is available in various sizes and finishes and is specifically intended for monolithic tempered glass.
The product requires two 5/8" (16 mm) diameter holes for installation and includes through-bolts, matching metal washers, and rubber gaskets for secure glass mounting.
Please note that CRL Cat.
No.
TB2CH, TB4CH, and F40WK are not compatible with the "CS" Series handles.
Regular maintenance is recommended for stainless steel to prevent rust and maintain its finish.
For detailed specifications, shipping inquiries, and further assistance, contact CRL Customer Service.
