CRL Polished Stainless 42" P9 Series End Post Railing Kit
CRL Polished Stainless 42" P9 Series End Post Railing Kit
Regular price
$535.60 CAD
Regular price
Sale price
$535.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P942EPS
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 13.2 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
Base Plate Length 5 in. | (127 mm) |
Base Plate Mounting Holes | 4 |
Base Plate Thickness 3/8 in. | (10 mm) |
Finish/Color | Polished Stainless Steel |
Material | Stainless Steel |
Mounting Hole Diameter 9/16 in. | (14 mm) |
Overview

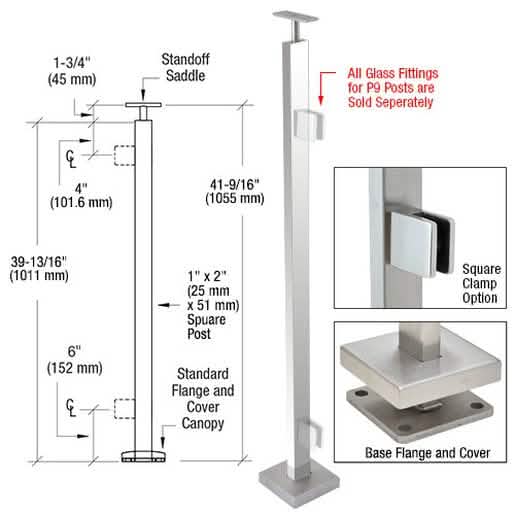

The CRL P9 Surface Mounted Post Railing Kits are expertly crafted for use with panels ranging from 1/2" to 1" thick, making them ideal for both guardrail and handrail applications.
Constructed from durable 1” x 2” stainless steel rectangular tubing, these kits include a base plate, base cover flange, and a welded top saddle with vertical adjustment.
With a standard post height of 42", custom heights and finishes are also available to meet diverse design needs.
To ensure optimal performance and longevity, periodic maintenance of the stainless steel is recommended.
For additional details, refer to the Stainless Steel Disclaimer in the Technical References section.
Constructed from durable 1” x 2” stainless steel rectangular tubing, these kits include a base plate, base cover flange, and a welded top saddle with vertical adjustment.
With a standard post height of 42", custom heights and finishes are also available to meet diverse design needs.
To ensure optimal performance and longevity, periodic maintenance of the stainless steel is recommended.
For additional details, refer to the Stainless Steel Disclaimer in the Technical References section.
Specifications
Installation Instructions
Quote Request Forms
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
Engineering & Test Reports
